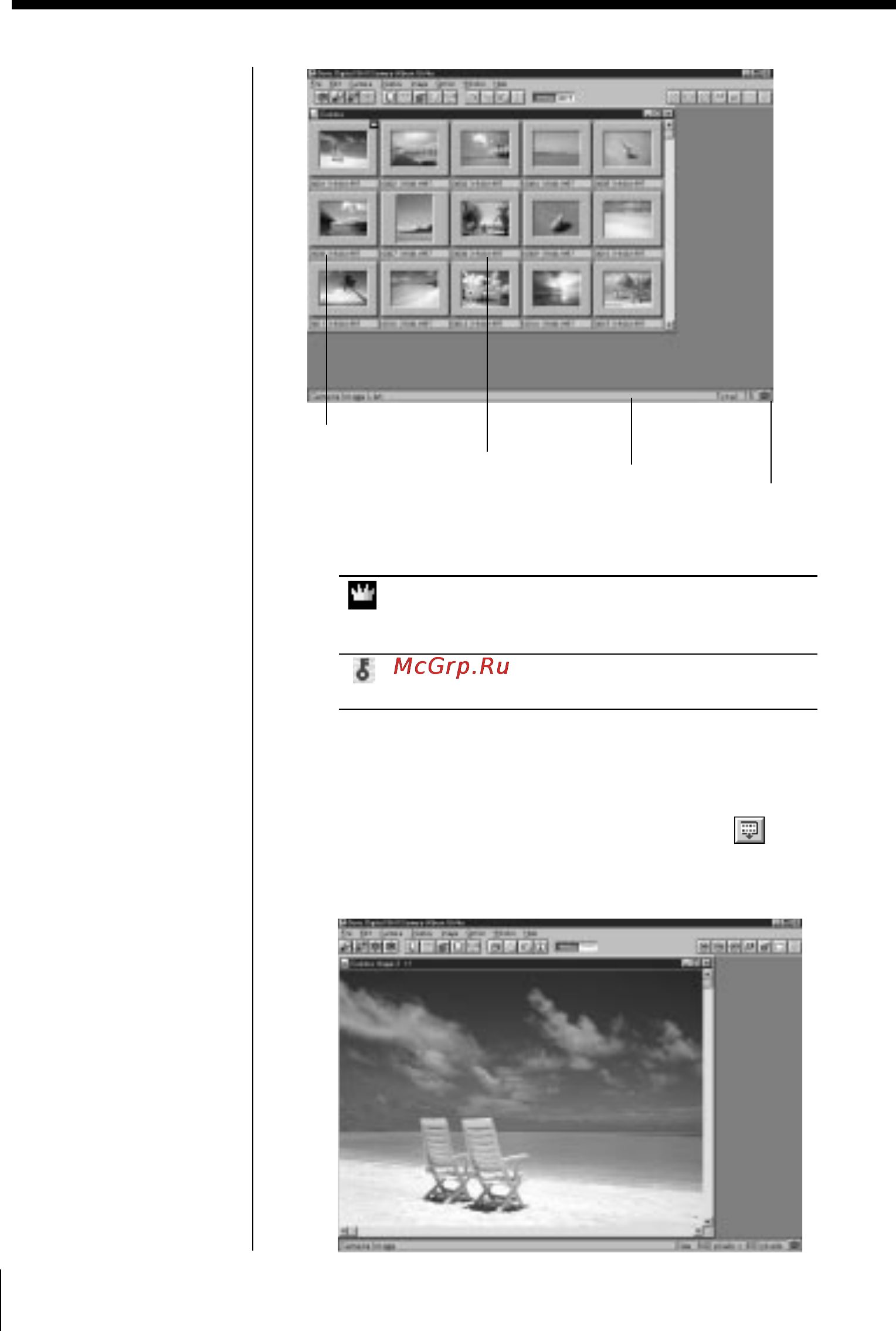

32
Capturing an image
Opening the camera images
The following icons on an image stand for:
Selected as album front cover. You can change
the album front cover with [Set Album Cover]
in the Option menu (see page 54).
Protected from accidental erasure and editing
(see page 66).
4 Click the thumbnail(s) you want to open (the
selected thumbnail frame becomes yellow) and
select [Open Selected Album/Image] in the File
menu. Or, double-click the image or click
on
the tool bar.
The selected images are displayed in full size.
Switching the caption
and date display of an
Select either [Show
Caption] or [Show Date]
in the Options menu.
You can change the
caption.
Displaying other
thumbnails
When hidden pages exist,
the scroll bar appears.
To scroll rows on a page,
click either up or down
arrow.
To scroll page by page,
click somewhere between
the arrow and the handle.
To display the desired
page quickly, drag the
handle.
Status bar
The status bar shows
program information,
such as the progress of a
time consuming task.
Depending on window
content, information such
as file path name,
number of images and
image size is displayed.
Image number
Caption or date display
Status bar
Camera icon
(Communication starts with camera.)
