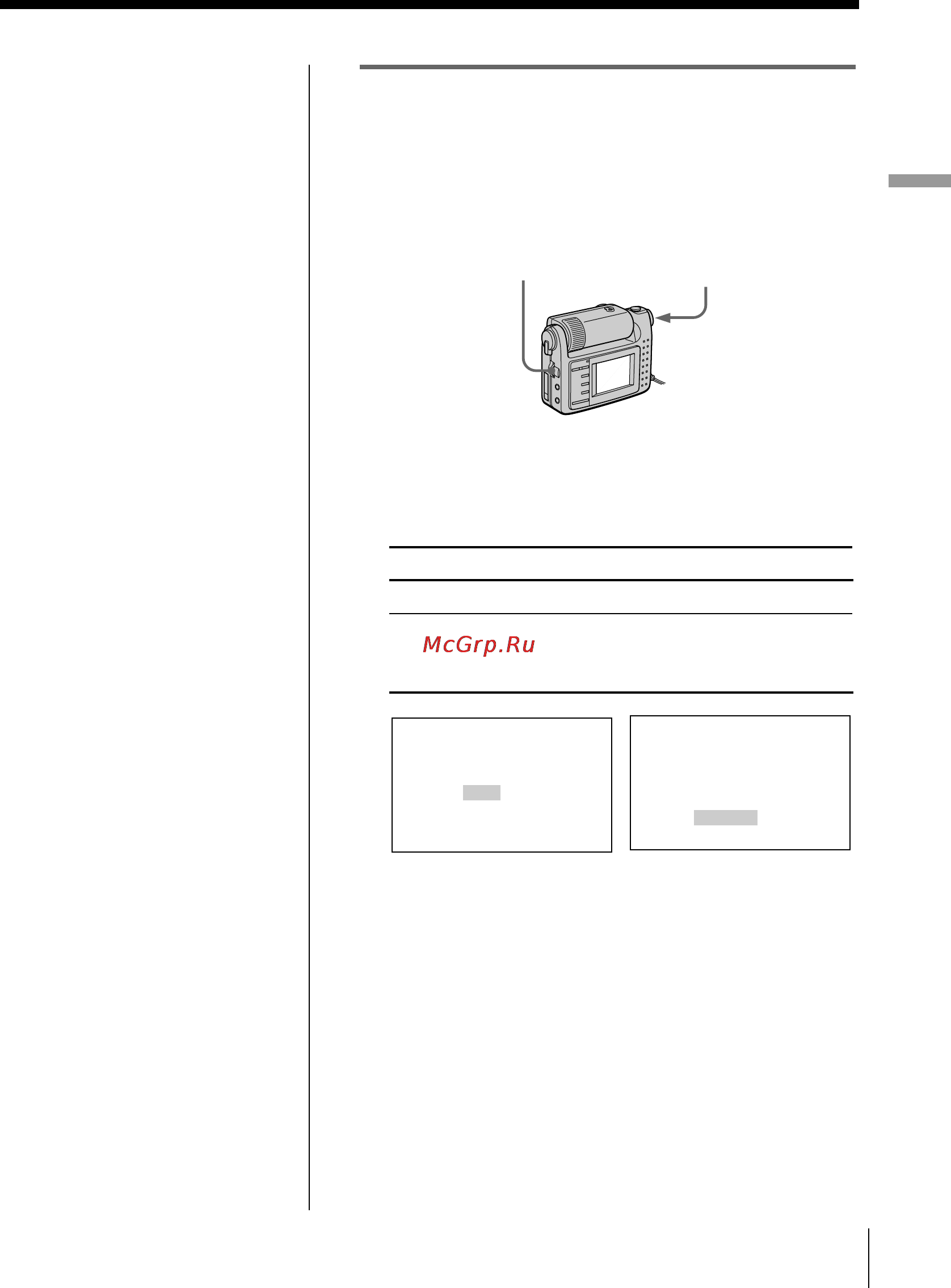

17Setting up
Setting up
1 Set the POWER/Function dial to “PLAY.”
2 To activate the data transmission via the
connecting cable, set the menu as follows:
Menu Select
WIRELESS OFF
SERIAL* The same serial speed as selected in
the [Settings] dialog box of the “Sony
Digital Still Camera Album Utility.”
3 Setting up the Digital Still Camera
Before you start data communications between the PC
and the Digital Still Camera, set up the Digital Still
Camera as follows. For the details, refer to the
instruction manuals of the Digital Still Camera
DSC-F1.
* The SERIAL menu
defines the serial speed
via the connecting
cable.
WIRELESS
OFF
ON
CAMERA MENU
9600
19200
38400
CAMERA MENU
SERIAL SPEED
Digital Still
Camera
DSC-F1
MENU/EXECUTE
jog dial
POWER/Function
dial
The Digital Still Camera is ready for
communication via cable.
Note
During the data
communication in process,
do not change the position
of the POWER/Function
dial.
