85Setting up
Setting up

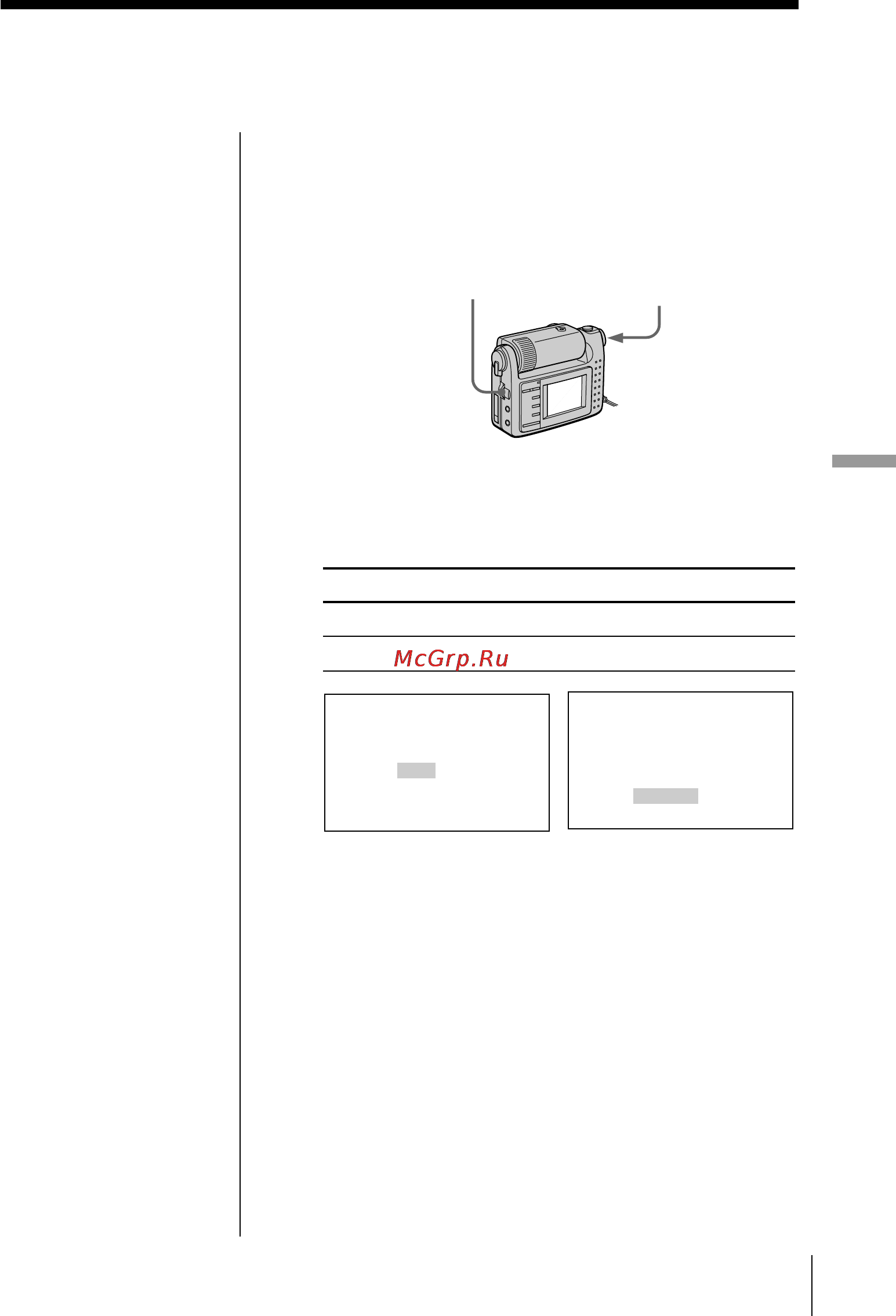

Step 3: Setting up the Digital Still
Camera
Digital Still
Camera
DSC-F1
MENU/EXECUTE
jog dial
POWER/Function
dial
WIRELESS
OFF
ON
CAMERA MENU
9600
19200
38400
CAMERA MENU
SERIAL SPEED
Before you start data communications between the PC
and the Digital Still Camera, set up the Digital Still
Camera as follows. For the details, refer to the
instruction manuals of the Digital Still Camera
DSC-F1.
* The SERIAL menu
defines the serial speed
via the connecting
cable.
** “38400” means 38,400
bps.
Note
During the data
communication in
process, do not change
the position of the
POWER/Function dial.
The Digital Still Camera is ready for
communication via cable.
1 Set the POWER/Function dial to “PLAY.”
2 To activate the data transmission via the
connecting cable, set the menu as follows:
Menu Select
WIRELESS OFF
SERIAL* 38400**
