Sony Cyber-Shot DSC-F1 [111/128] Opening an image file directly

111Capturing an image

Capturing an image

Changing the drive

Click [Desktop] to display

the available drives in the

list, from which you can

select the desired drive.

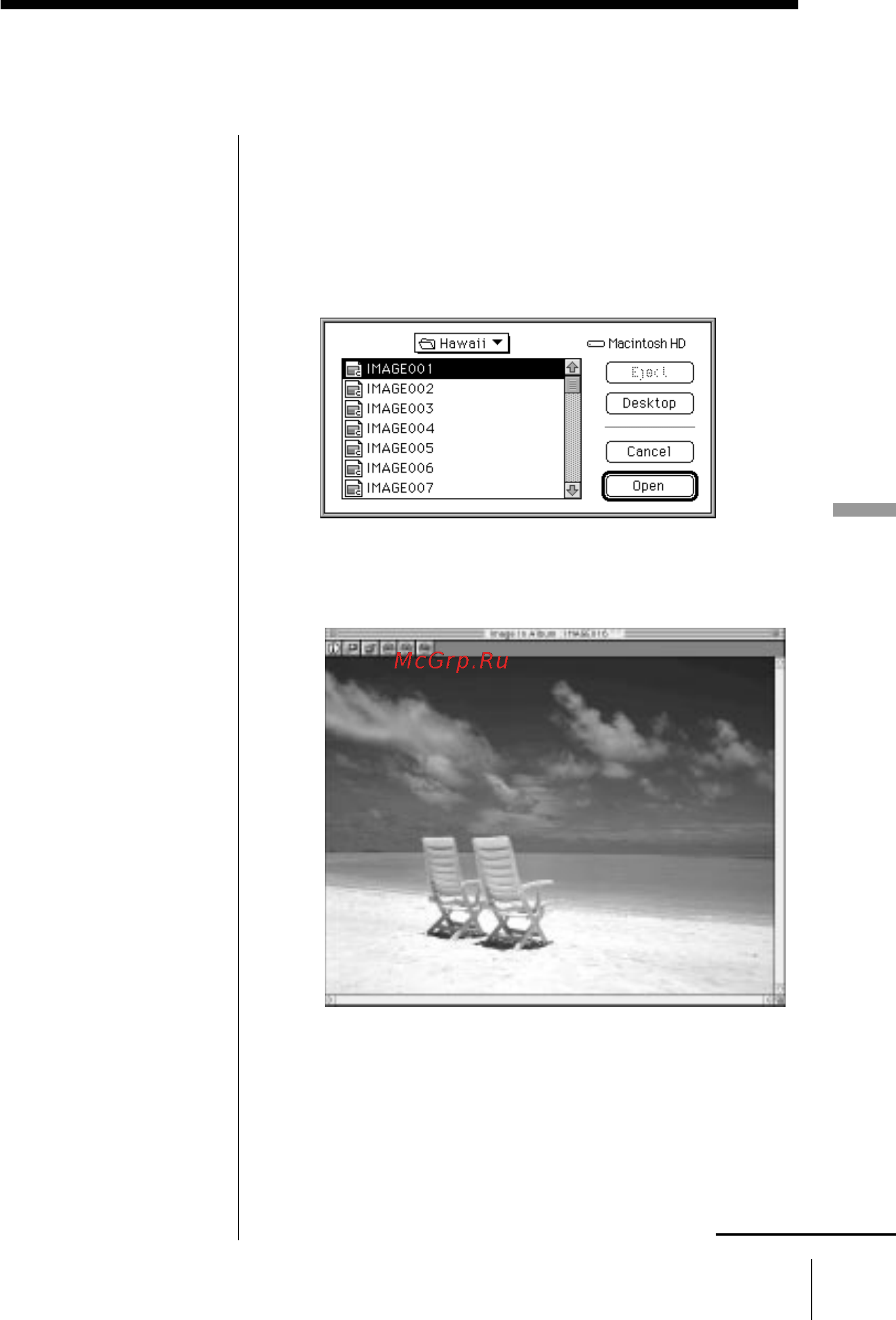

Opening an image file directly

You can open an image stored in the hard disk by

designating its file name. In addition to a file of an

album format, you can open a PICT or JPEG file.

1 Select [Open Image File] in the File menu .

The following dialog box appears.

2 Select the Image file you want to open and click

[Open].

The selected image is displayed in full size.

Closing an image

Click [Close] in the File menu.

continued
