Sony Cyber-Shot DSC-F1 [97/128] Opening the image directly

97Capturing an image

Capturing an image

Closing an album list, image list or image

Select [Close] in the File menu or click the close

button. The selected window is closed.

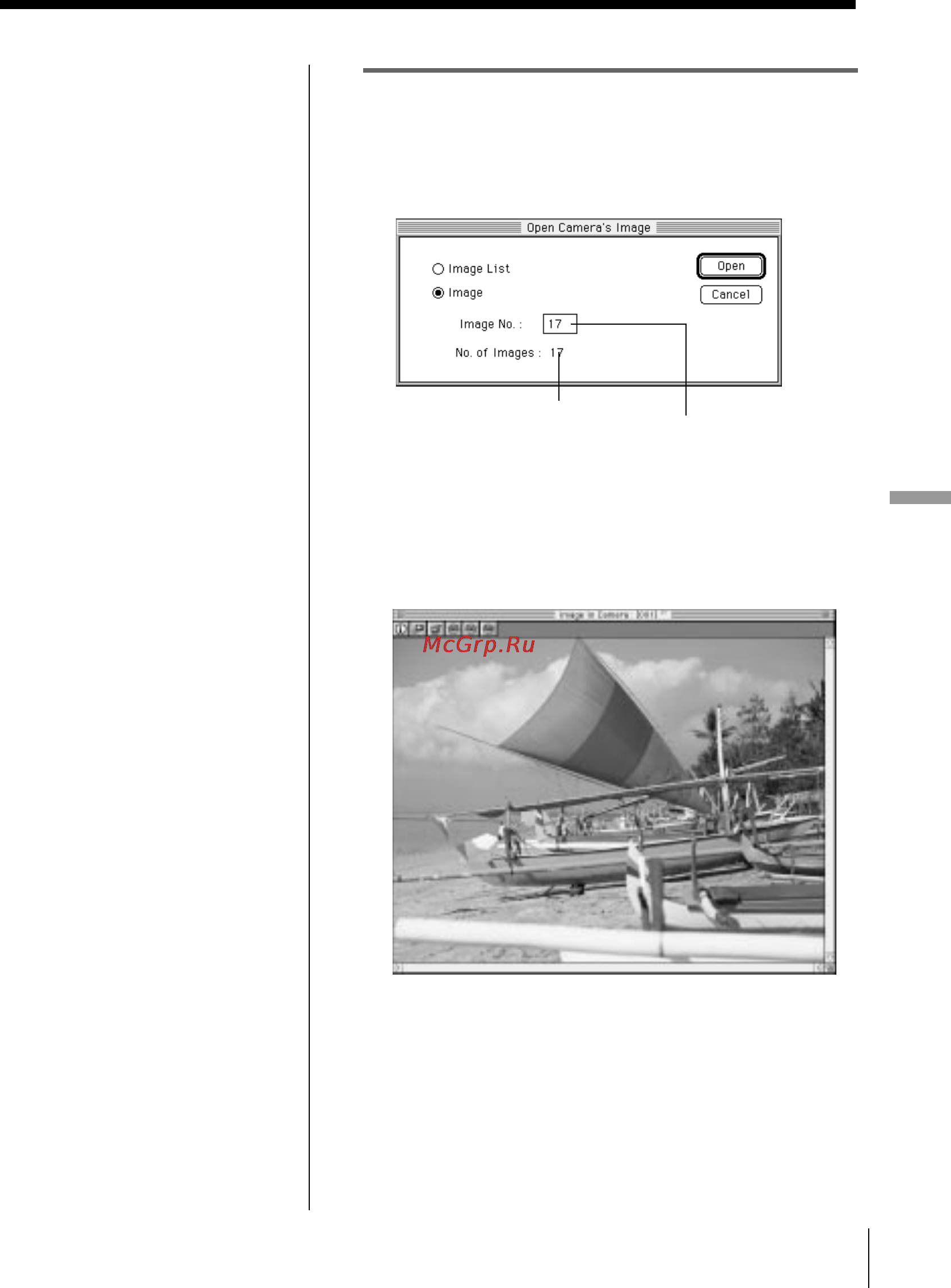

Opening the image directly

1 Select [Open Camera' s Image] in the Camera

menu.

The following dialog box appears.

The total number of images

The image currently displayed on the camera

2 Click [Image] and input the image number which

you want to open in the [Image No.] box.

3 Click [Open].

The selected images are displayed in full size.
