105Capturing an image
Capturing an image
continued
Note
When the image list or
images of the camera are
displayed, close them
before selecting [Save as
File].
Saving in a different
drive
Click [Desktop] to display
the available drives in the
list, from which you can
select the desired drive.
Creating a new album
folder
Click [New]. The dialog
to define a new album
folder name appears.
Type the new folder name
and click [Create].
Selecting the file type
Click the down arrow
button next to File Type
and select the desired file
type from the pull-down
list.

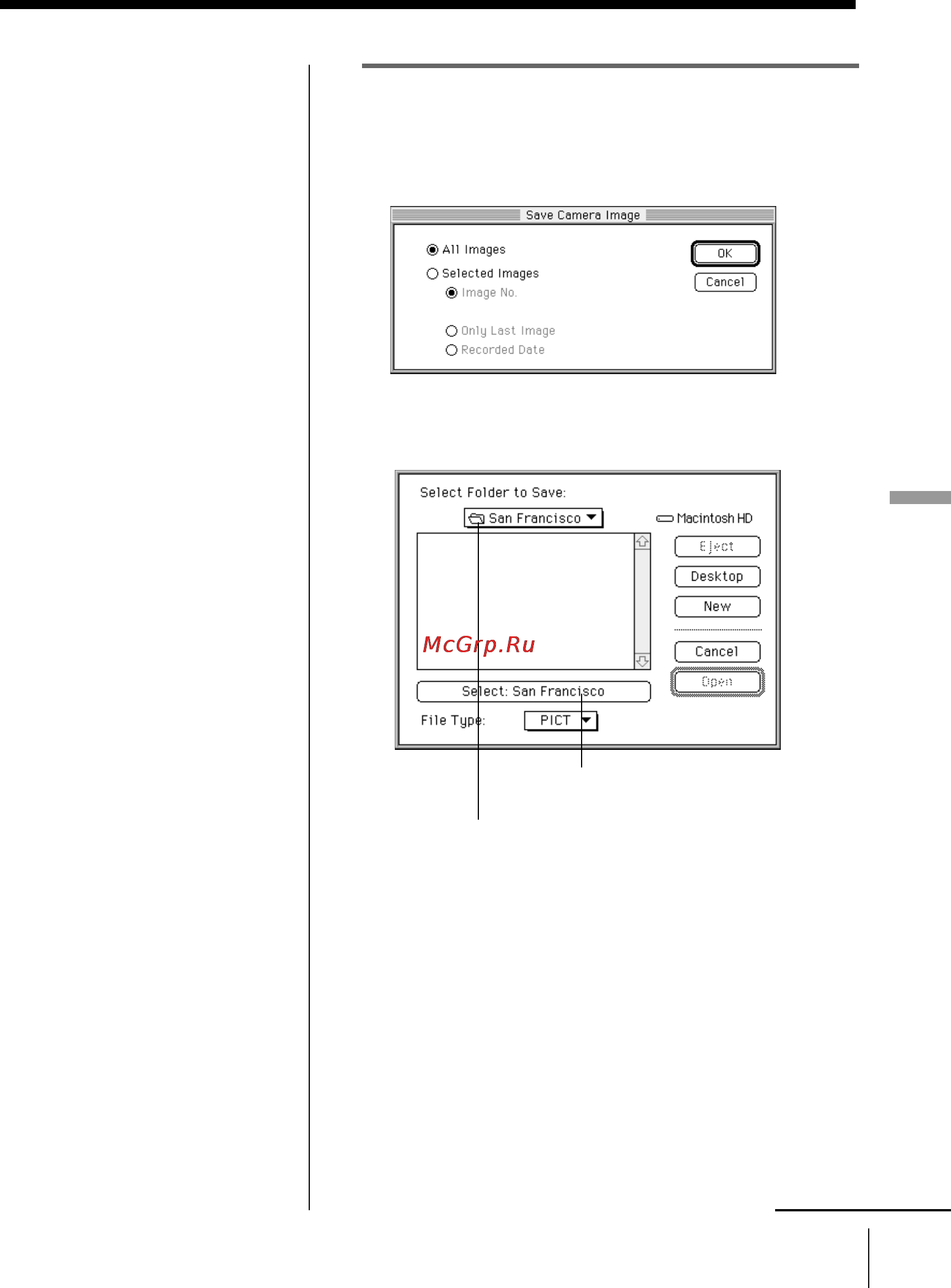

Saving all the camera images without
opening them
1 Select [Save as File] in the Camera menu.
The following window appears.
The destination folder where the camera
images are to be saved.
When you click [New], a new folder is created in this
folder.
3 Select the destination folder and file type in which
the images are to be saved and click [Select].
The selected camera images are saved in the
destination album folder as a specified file type
with a name “IMAGE
***
” (
***
: serial number).
Stopping saving midway
Press the [] and [.] keys together.
2 Select [All Images] and click [OK].
The following window appears.
