TForce4 SE / TForce4 U SE
33

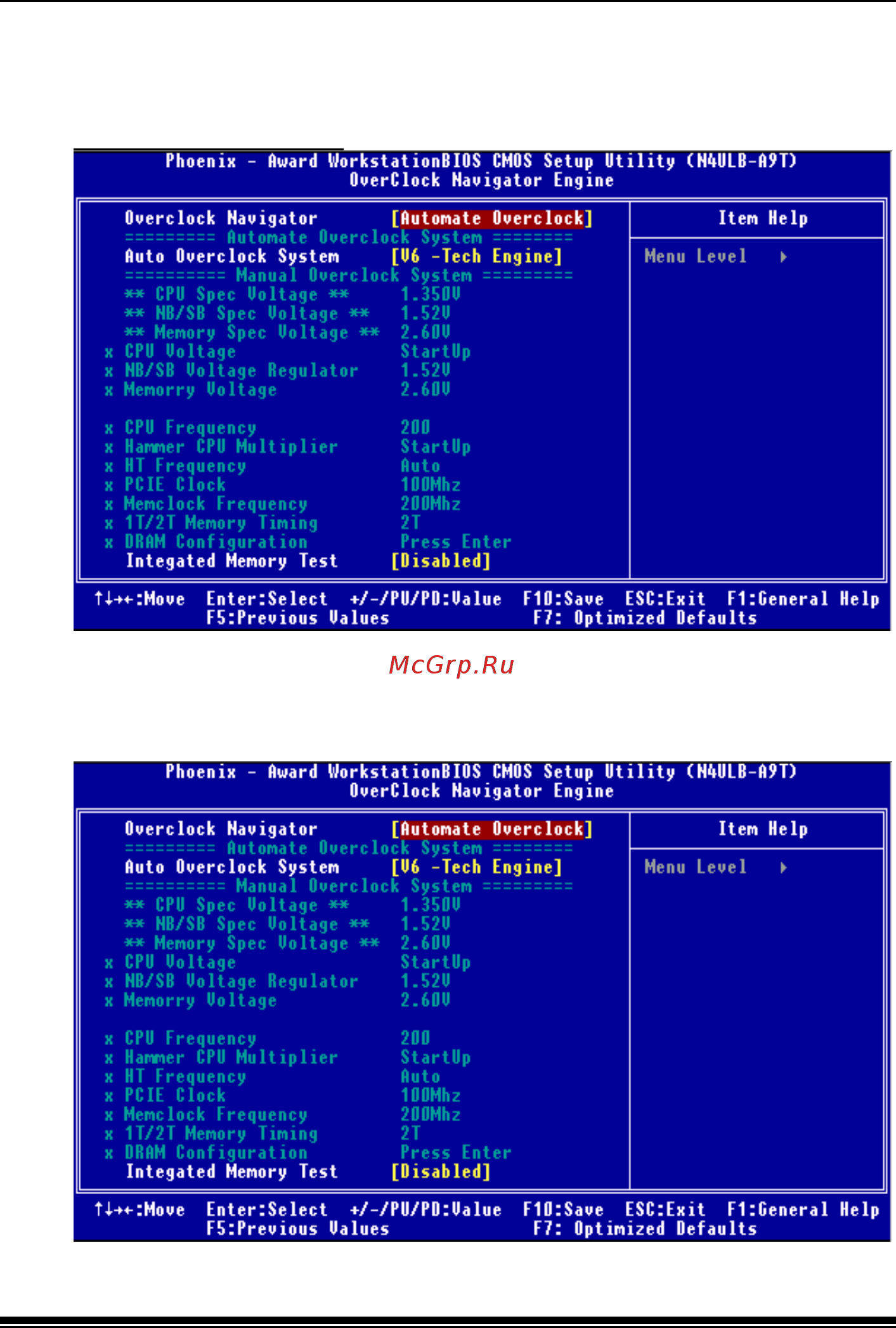

9 Over Clock Navigator Engine
Automate Overclock System
A.O.S. is designed for beginners in overclock field.
Based on many test and experiments from BET, A.O.S. provide 3 default overclock
configurations that are able to raise the system performance
V6 Tech Engine:
