TForce4 SE / TForce4 U SE
19

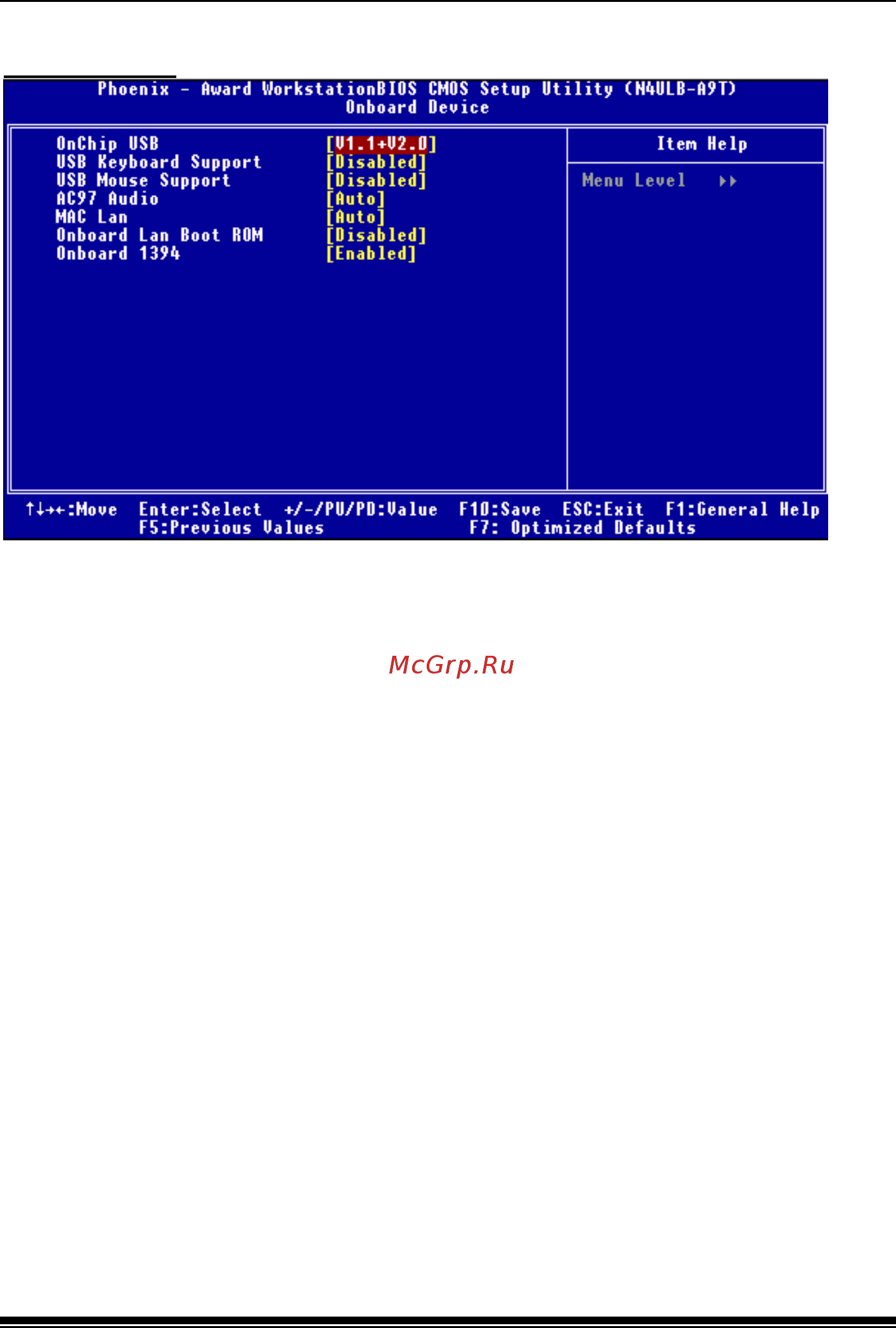

Onboard Device
OnChip USB
This option should be enabled if your system has a USB installed on the
system board. You will need to disable this feature if you add a higher
performance controller.
The Choices: V1. 1+V2. 0 (default), Disabled, V1.1.
USB keyboard Support
Enables support for USB attached keyboard.
The Choices: Disabled (default), Enabled
USB Mouse Support
Enables support for USB attached mouse.
The Choices: Disabled (default), Enabled
AC97 Audio
This option allows you to control the onboard AC97 audio.
The Choices: Auto (default), Disabled.
MAC Lan
This option allows you to change the state of the onboard MAC LAN.
The Choices: Auto (default), Disabled.
Onboard LAN Boot ROM
This item allows you to enable or disable Onboard LAN Boot ROM.
The Choices: Disabled (default), Enabled.
