Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
44
5.3 EXTRA INFORMATION
A. BIOS Update
After you fail to update BIOS or BIOS is invaded by a virus, the
Boot-Block function will help to restore BIOS. If the following

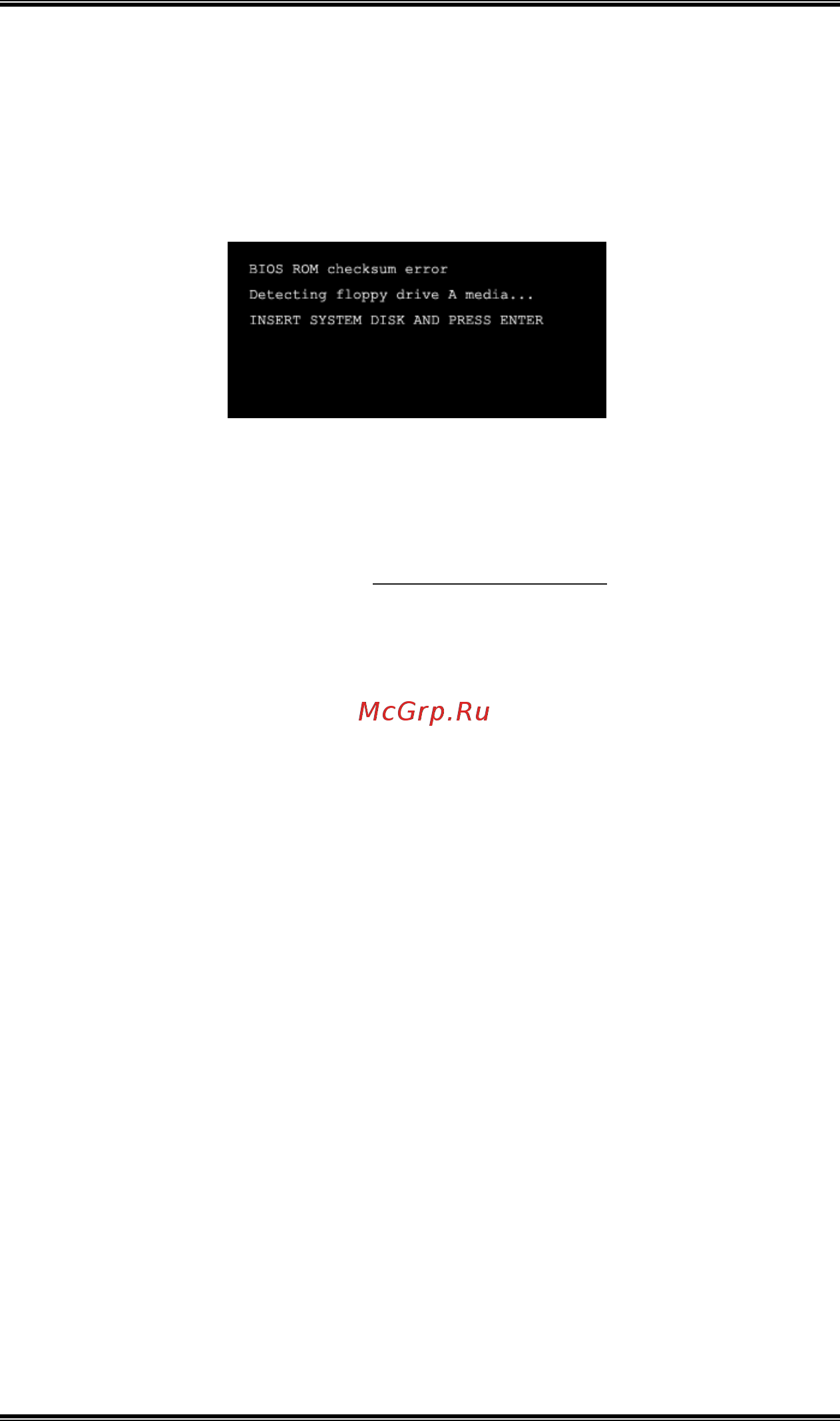

message is shown after boot-up of the system, it means the
BIOS contents are corrupted.
In this case, please follow the procedure below to restore the
BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the
Biostar website: www.biostar.com.tw
3. Confirm motherboard model and downl7oad the
respective BIOS from Biostar website.
4. Copy “AWDFLASH.exe” and respective BIOS onto
floppy disk.
5. Insert the bootable disk into floppy drive and press
Enter.
6. System will boot-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.
