TForce4 SE / TForce4 U SE
38

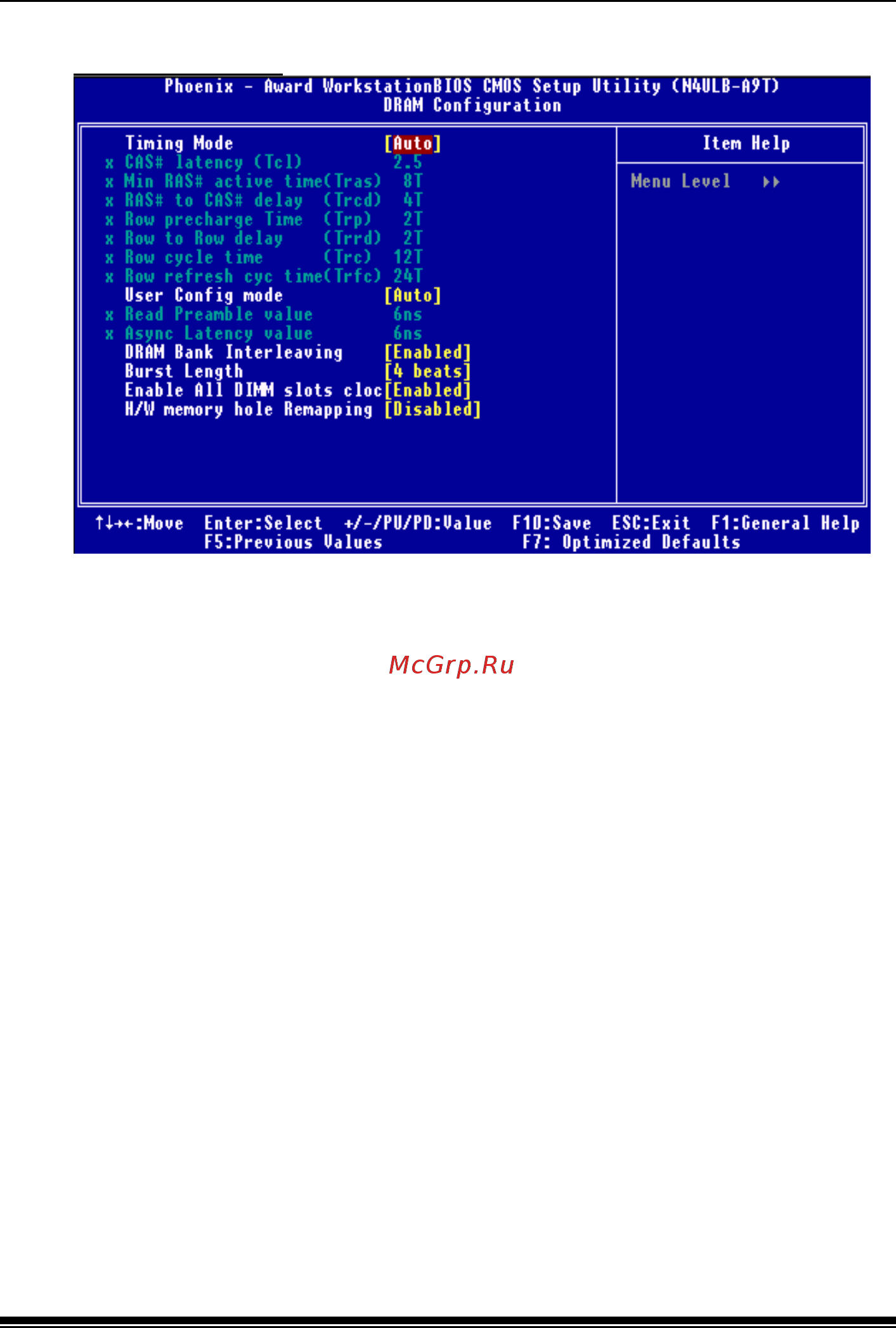

DRAM Configuration
Timing Mode
DDR Timing Setting by SPD or ITEM.
The Choices: Auto (default), Manual.
CAS# Latency(Tcl)
This field specify the cas# latency, i.e. cas# to read data valid.
The Choices: CL=2.5(default), CL=3.0, CL=2.0,
Min RAS# active time (Tras)
This field specifies the minimum RAS# active time. Typically -45-60 Nsec.
The Choices: 8T(default),5T,6T,7T,9T,10T,11T,12T,13T,14T,15T.
RAS# to CAS# Delay (Trcd)
This field specifies the RAS# to CAS# Delay to read/ write command to the same
bank. Typically -20 Nsec.
The Choices: 4T(default),2T,3T,6T,7T,Auto.
Row precharge Time (Trp)
This field specifies the Row precharge Time. Precharge to Active or
Auto-Refresh of the same bank. Typically 20-24 Nsec.
The Choices: 2T(default),2T,3T,4T,6T,7T,Auto.
Row to Row delay (Trrd)
This item allows you to determine the selection for Row to Row delay (Trrd)
The Choices: 2T (default),3T,4T,Auto.
