Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
9

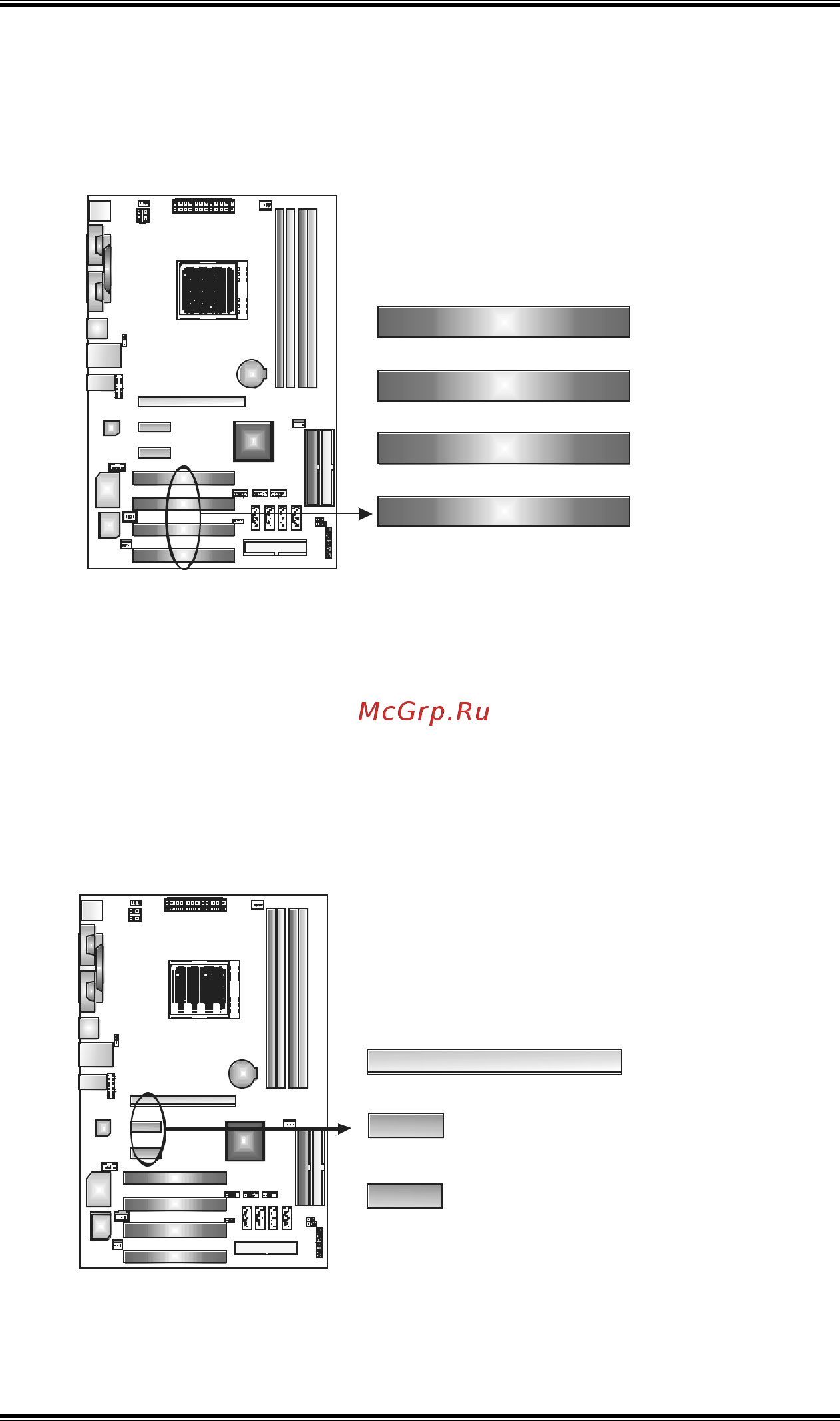

Peripheral Component Interconnect Slots: PCI1~PCI4
This motherboard is equipped with 4 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
PCI1
PCI3
PCI2
PCI4
PCI-Express Slots: PEX16/PEX1_1/PEX1_2
PEX16:
PCI Express 1.0a compliant.
Maximum bandwidth is up to 4GB/s per direction.
PEX1_1/PEX1_2:
PCI Express 1.0a compliant.
Maximum bandwidth is up to 250MB/s per direction.
PEX16
PEX1_1
PEX1_2
