Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
5

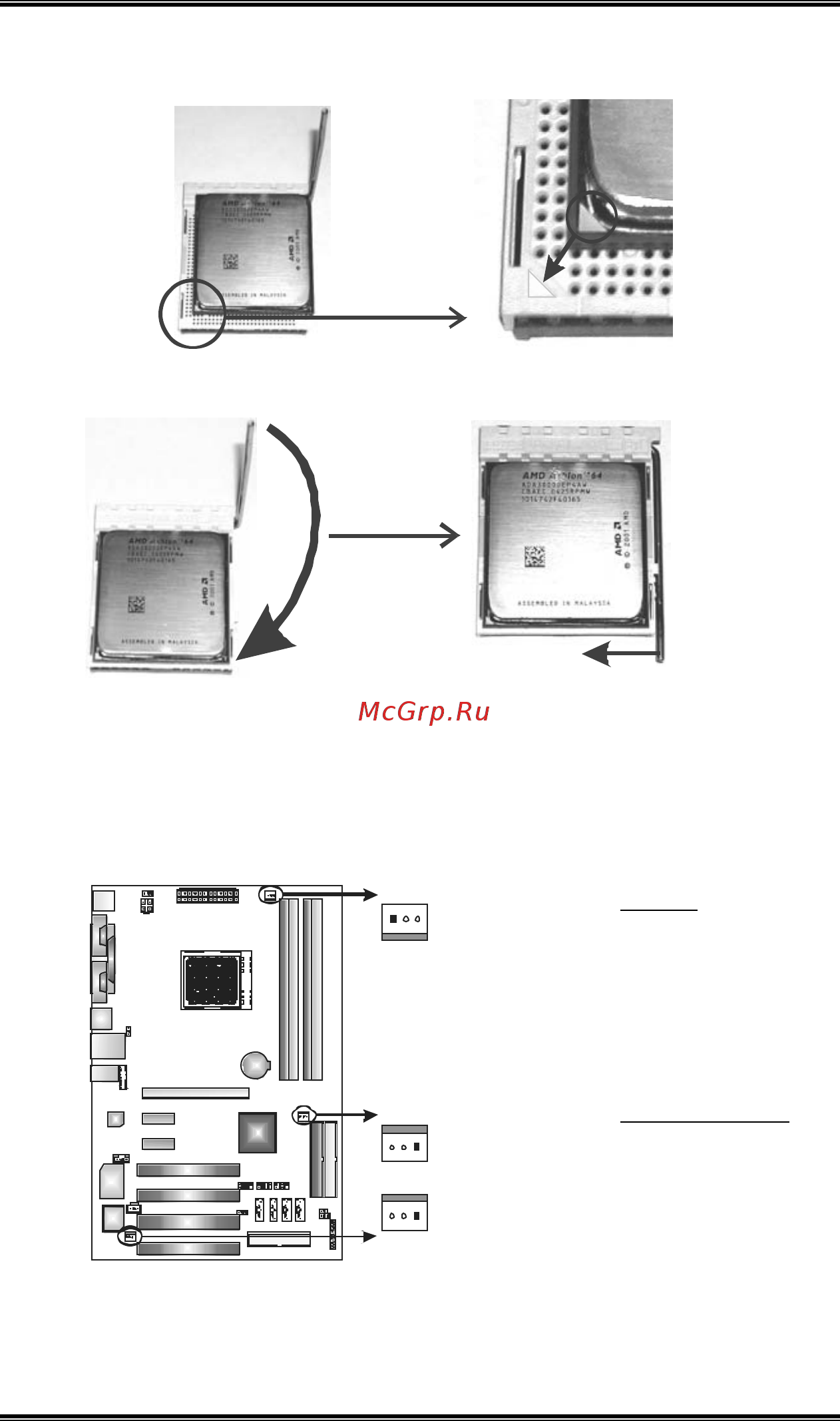

Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point forwards this white triangle. The CPU will fit only in
the correct orientation
Step 4: Hold the CPU down firmly, and then close the lever toward
direct B to complete the installation.
B
Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
B. About FAN Headers
CPU FAN Power Header: JCFAN1
System Fan Power Headers: JSFAN1
North Bridge Fan Power Header: JNBFAN1
JCFAN1:
Pin Assignment
1 Ground
2 Smart Fan
Control
3
FAN RPM rate
sense
JNBFAN1 / JSFAN1
Pin Assignment
1 Ground
2 +12V
JCFAN1
JSFAN1
JNBFAN1
13
13
13
3
FAN RPM rate
sense
