TForce4 SE / TForce4 U SE
14
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to system memory resources, such as
DRAM. It also coordinates communications with the PCI bus. The default settings that came
with your system have been optimized and therefore should not be changed unless you are
suspicious that the settings have been changed incorrectly.

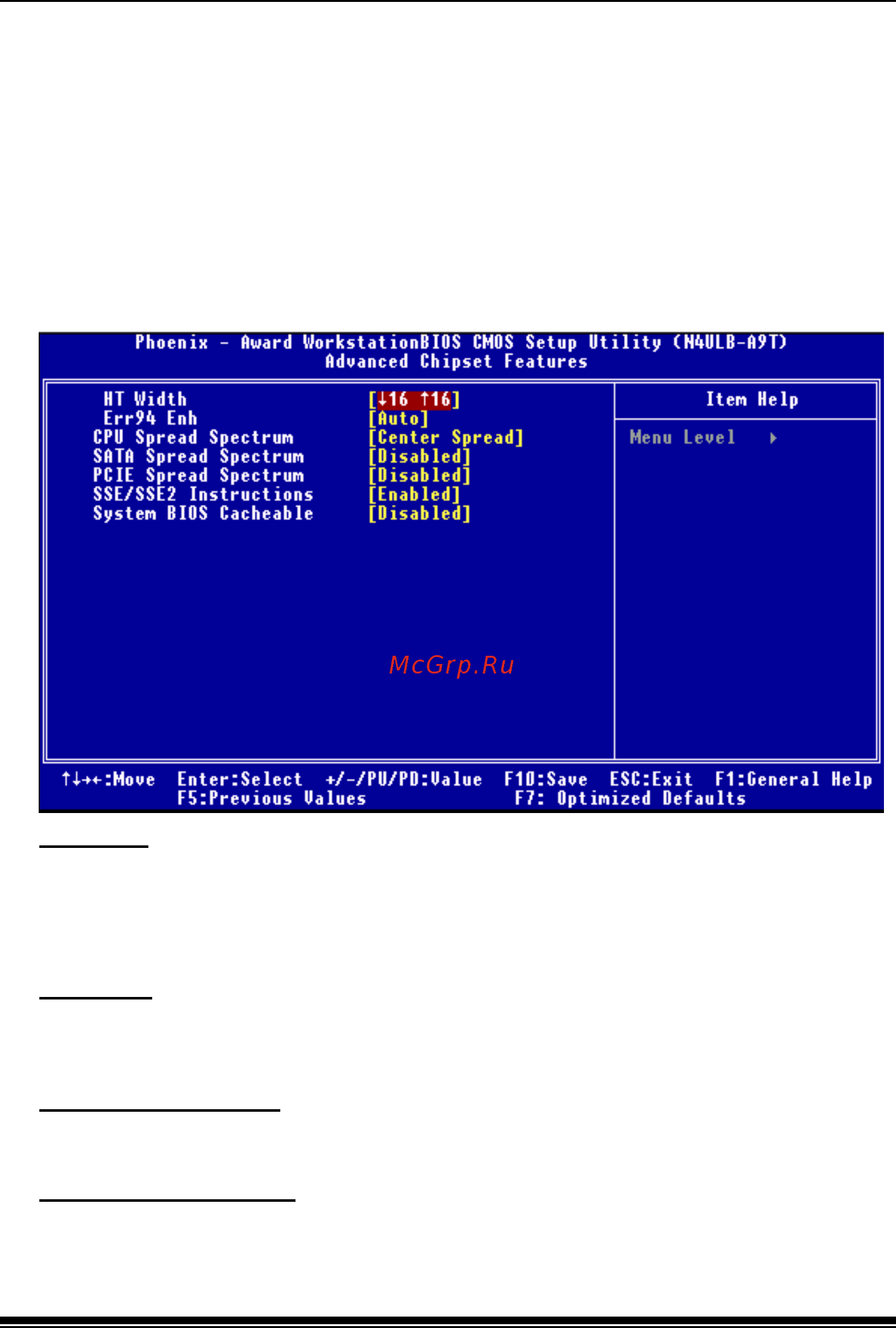

Figure 4. Advanced Chipset Setup
HT Width
This item allows you to control the utilized width of the outgoing side of the
HyperTransport link.
The Choices: [↓8 ↑8], [↓16↑8],[↓8 ↑16] ,[↓
↓↓
↓16 ↑
↑↑
↑16] (default),.
Err94 Enh
This item allows you to enable/disable the “sequential Prufetch Feature” of K8 CPU.
The Choices: Auto (default),Enabled,Disabled.
CPU Spread Spectrum
The Choices: Center Spread (default),Disabled.
SATA Spread Spectrum
This item allows you to disable \ enable the SATA spread spectrum function.
The Choices: Disabled (default), Enabled.
