Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
32
Start PWM Value
When CPU temperature arrives to the set value, the CPU fan
will work under Smart Fan Function mode. The range is from
0~127, with an interval of 1.
Choices: 32 (default).
Slope PWM
Choices: 1 PWM Value/℃ (default), 2 PWM Value/℃, 4 PWM
Value/℃, 8 PWM Value/℃, 16 PWM Value/℃, 32 PWM
Value/℃, 64PWM Value/℃.

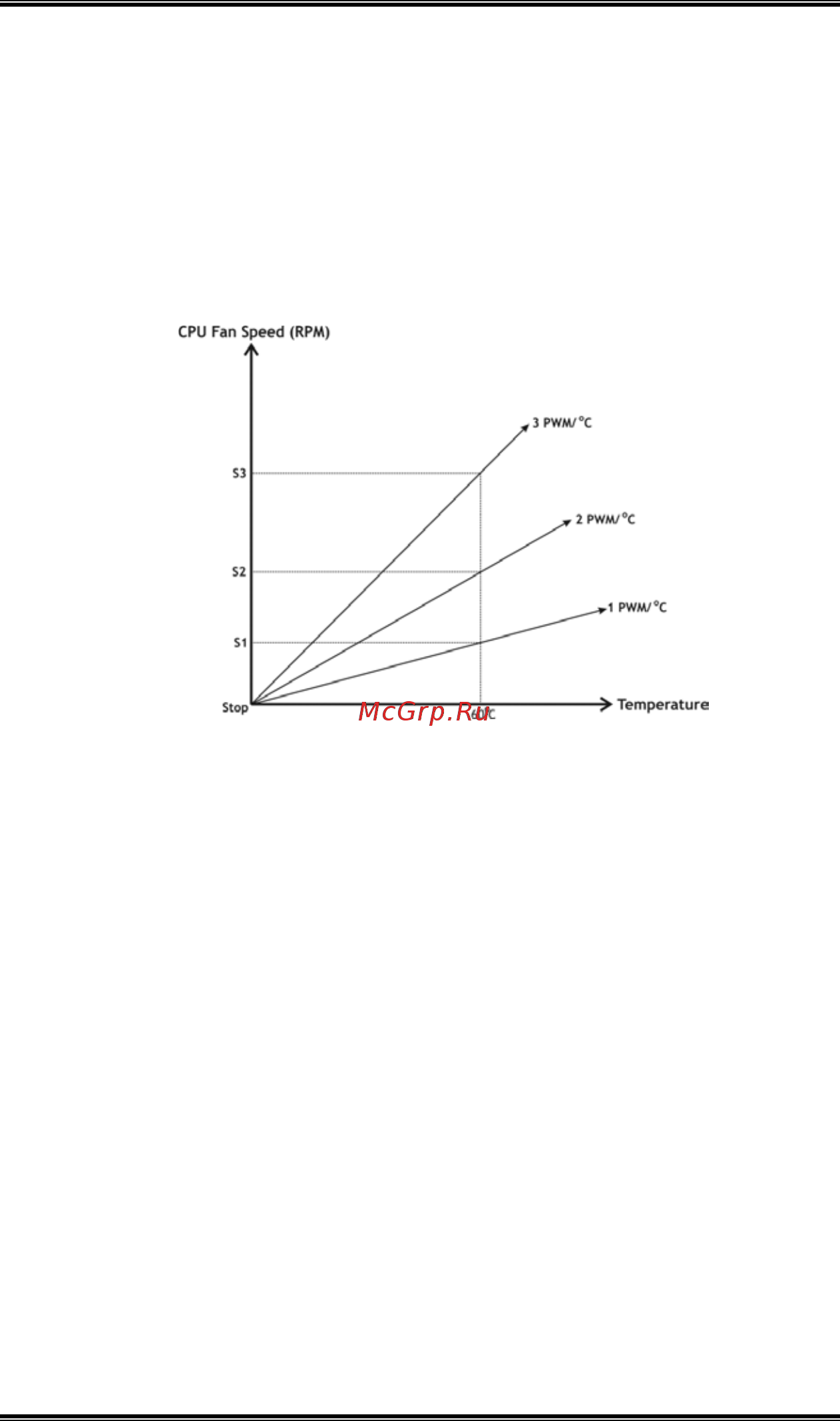

S1: CPU tempe rature is 60℃, and PWM value is 1 PWM/℃.
S2: CPU tempe rature is 60℃, and PWM value is 2 PWM/℃.
S3: CPU tempe rature is 60℃, and PWM value is 3 PWM/℃.
Increasing the value of slope PWM will raise the speed of CPU
fan.
As in above diagram, when the CPU temperature reaches 60℃,
the CPU fan speed for 3 PWM/℃ is higher than 1 PWM/℃
(S1<S2<S3).
