TForce4 SE / TForce4 U SE
34

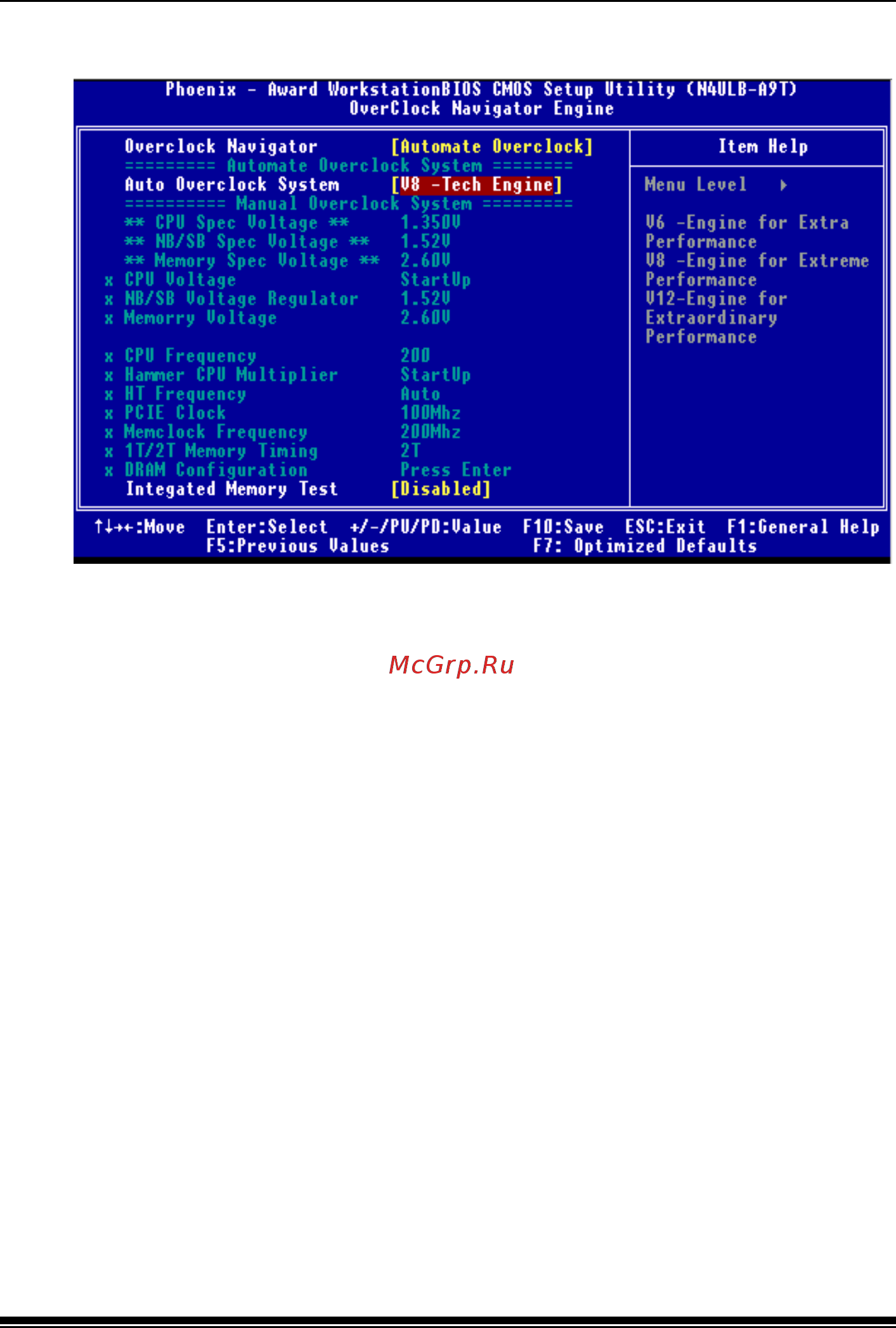

V8 Tech Engine
This setting will raise about 15%~25% of whole system performance.
