Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
23
Spanning (JBOD):
JBOD stands for “Just a Bunch of Disks”. Each drive is
accessed as if it were on a standard SCSI host bus adapter.
This is useful when a single drive configuration is needed, but it
offers no speed improvement or fault tolerance.
Features and Benefits
- Uses: JBOD works best if you have odd sized drives and you
want to combine them to make one big drive.
- Benefits: JBOD provides the ability to combine odd size drives
using all of the capacity of the drives.
- Drawbacks: Decreases performance because of the difficulty
in using drives concurrently.
- Fault Tolerance: No.

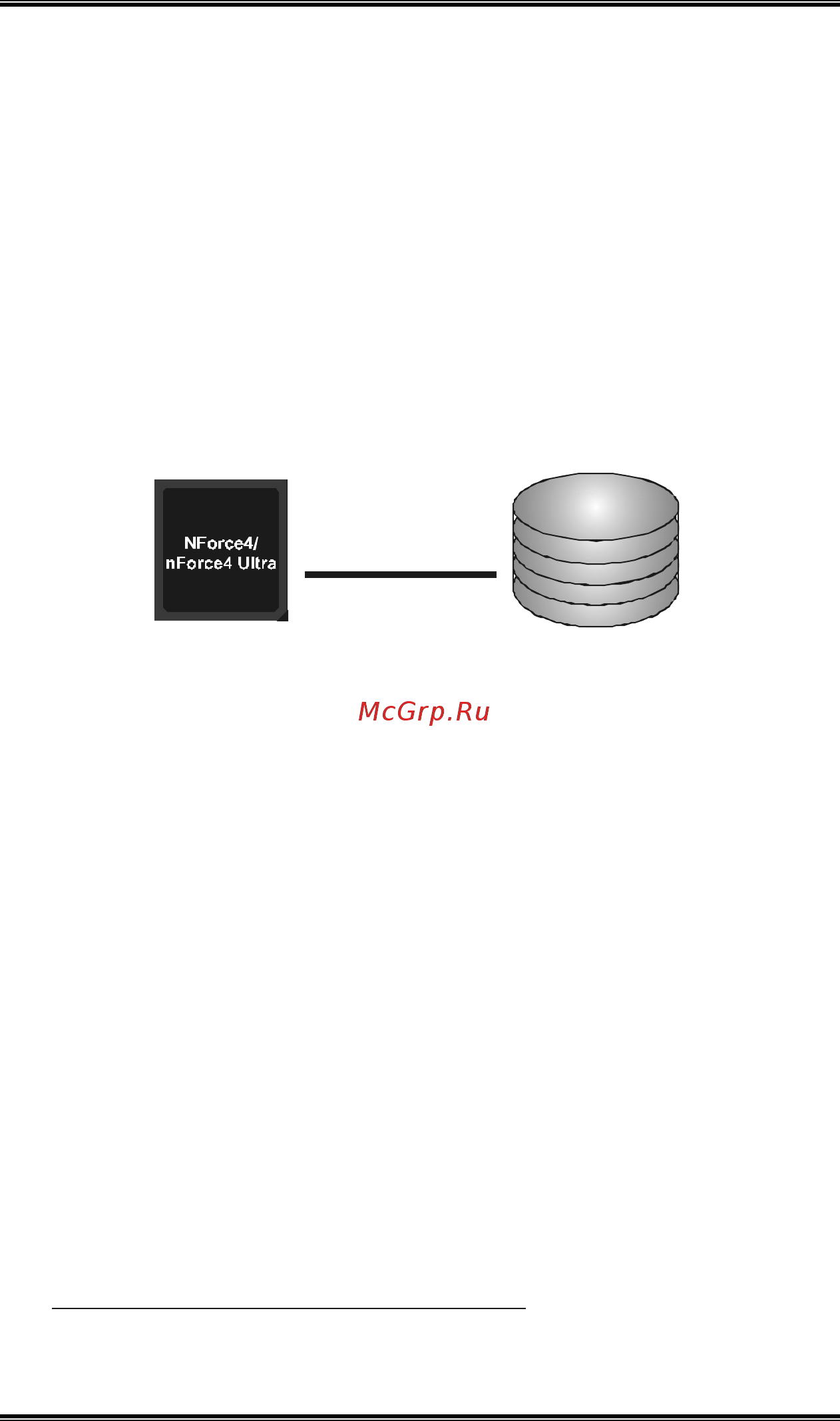

Disk 1: 40GB
Disk 2: 80GB
Disk 3: 40GB
Disk 4: 120GB
Single Logical
Drive
※ For more detailed setup information, please refer to the Driver CD, or go to
http://www.nvidia.com/page/pg_20011106217193.html to download N VIDIA nForce
Tutorial Flash.
