TForce4 SE / TForce4 U SE
10
These BIOS attempt to load the operating system from the device in the sequence selected
in these items.
CPU Internal Cache
Depending on the CPU/chipset in use, you may be able to increase memory
access time with this option.
Enabled (default) Enable cache.
Disabled Disable cache.
External Cache
This option enables or disables “Level 2” secondary cache on the CPU, which
may improve performance.
The Choices:
Enabled (default) Enable cache.
Disabled Disable cache.

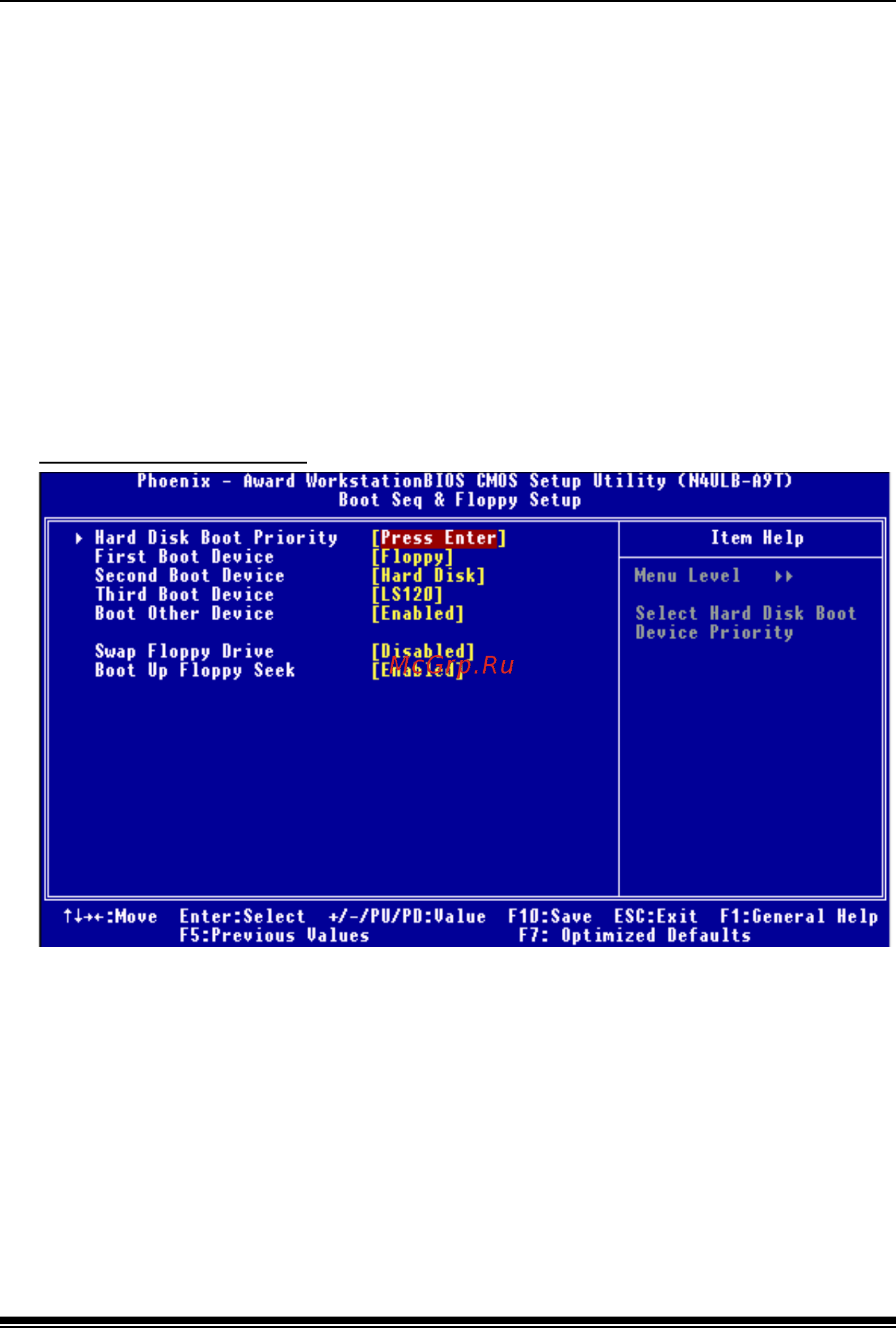

Boot Seq & Floppy Setup
