TForce4 SE / TForce4 U SE
16
5 Integrated Peripherals

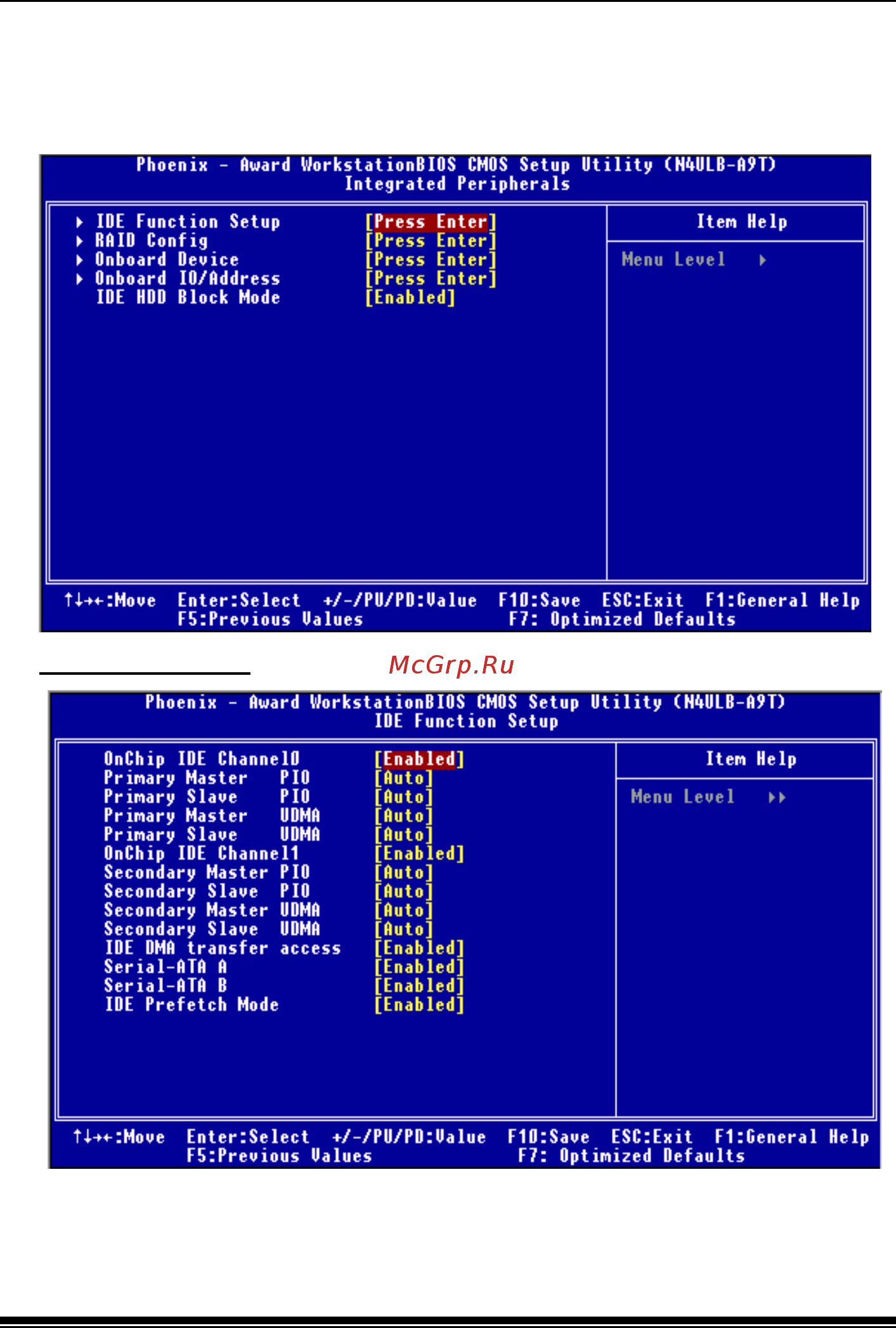

Figure 5. Integrated Peripherals
IDE Function Setup
If you highlight the literal “Press Enter” next to the “IDE Function Setup” label and then
press the enter key, it will take you a submenu with the following options:
