Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
16

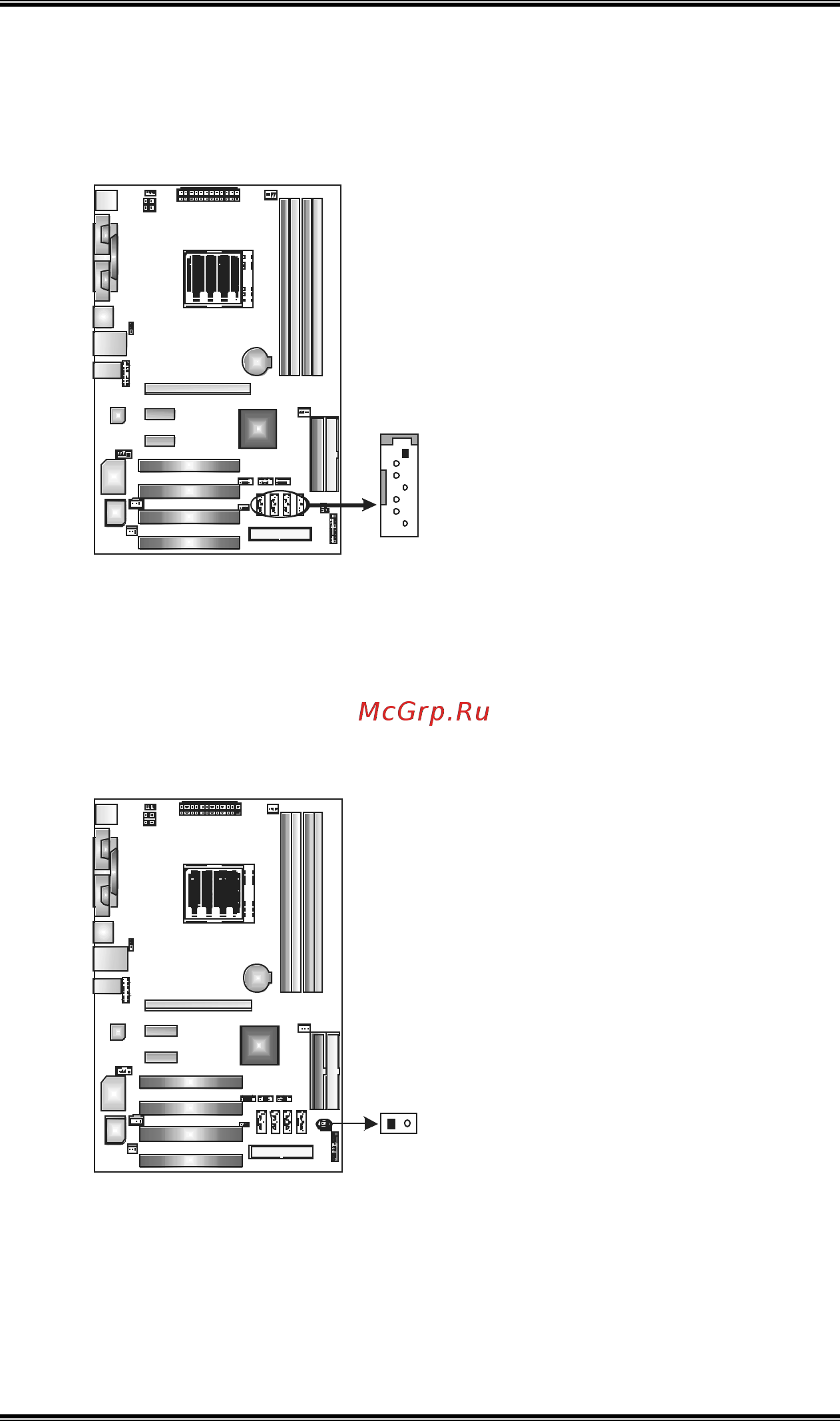

Serial ATA Connectors: JSATA1~JSATA4
With the SATA Controller provided in the chipset, this motherboard
supports 4 channel SATA II connectors. It satisfies the SATA 2.0
spec with transfer rate of 3.0 Gb/s.
Pin
Assignment
1 Gro und
2 TX+
3 TX-
4 Gro und
5 RX-
6 RX+
JSATA1
JSATA2
JSATA3
JSATA4
1
4
7
7 Gro und
Case Open Header: JCI1
This connector allows system to monitor PC case open status. If the
signal has been triggered, it will record to the CMOS and show the
message on next boot-up.
Pin
Assignment
1 Case open
signal
12
2 Gro und
