Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
13

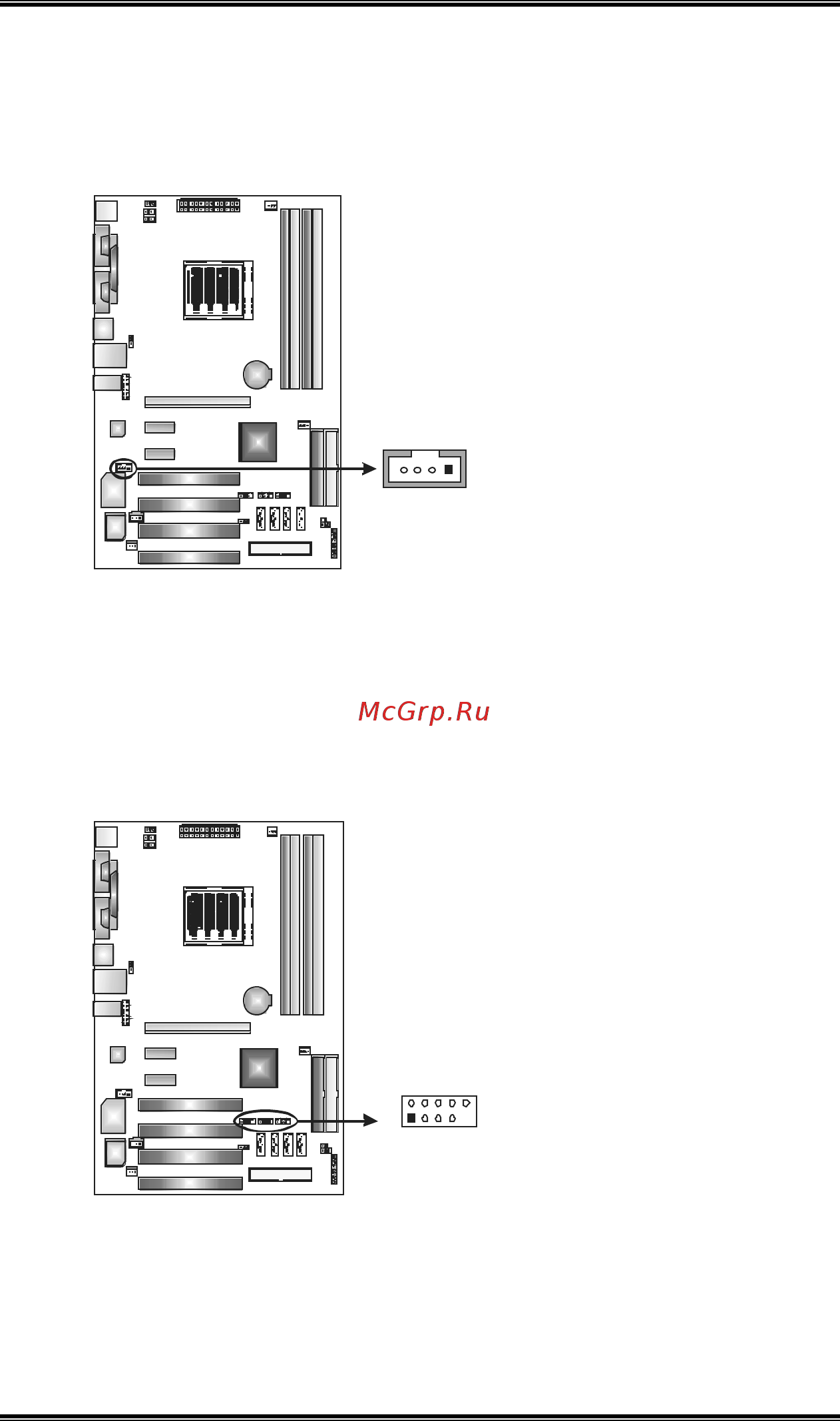

CD-ROM Audio-in Connector: JCDIN1
This connector allows user to connect the audio source from a
variety of devices, like CD-ROM, DVD-ROM, PCI sound card, PCI
TV tuner card etc..
Pin
Assignment
1 Left channel
input
2 Gro und
3 Gro und
14
4 Right channel
input
Headers for USB Ports at Front Panel: JUSB1~JUSB2
This connector allows user to connect additional USB cables at PC
front panel, and also can be connected with internal USB devices,
like USB card reader.
Pin
Assignment
1
+5V (fused)
2
+5V (fused)
3
USB-
4
USB-
5
USB+
6
USB+
7
Gro und
8
Gro und
9
Key
JUSB3 JUSB4JUSB2
19
210
10
NC
