TForce4 SE / TForce4 U SE
36

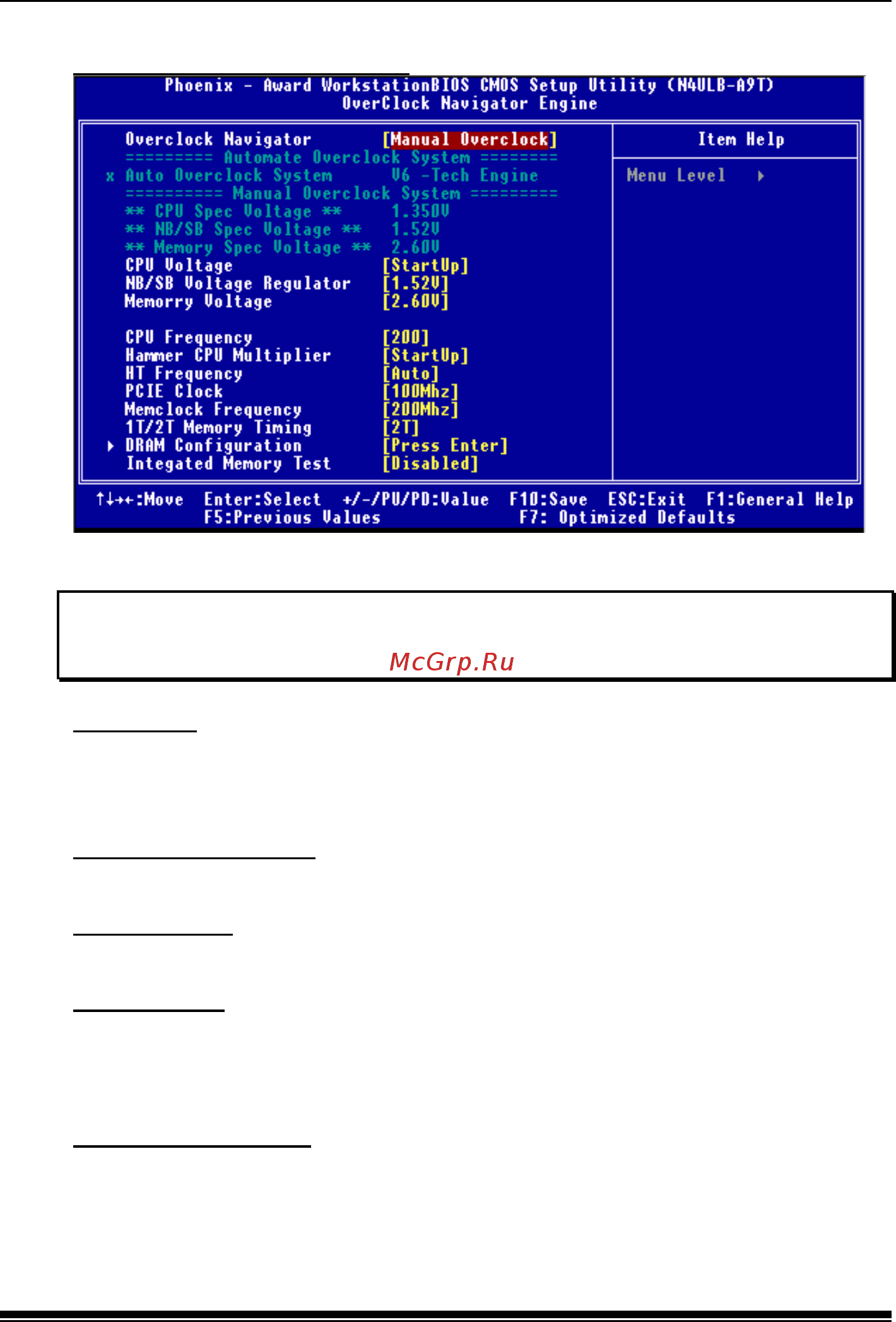

Manual Overclock System (M.O.S.)
MOS is designed for experienced overclock users.
It allows users to customize personal overclock setting.
Cautions:
According tests have been done; AMD 3000+ CPU is the best CPU type for overclock
function.
CPU Voltage
This item allows you to select CPU Voltage Control.
TheChoices:StartUp(default),1.750V,1.725V,1.700V,1.675V,
1.650V,1.625V,1.600V etc.(Min=0.800V,Max=1.750).
NB/SB Voltage Regulator
The Choices:1.52V(default),1.60V,1.68V,1.76V.
Memory Voltage
The Choices:2.60V(default),2.70V,2.80V,2.90V.
CPU Frequency
This item allows you to select the CPU Frequency.
The Choices: 200 (default),201,202,203,204,205,206,207,208,209…..
450.( Max.is
450)
Hammer CPU Multiplier
The Max. value will be different from the selected CPU types.
The Choices: StartUp (default),X4 800MHz, X5 1000MHz, X6 1200MHz,
X7 1400MHz, X8 1600MHz, X9 1800MHz, etc.
