Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
39

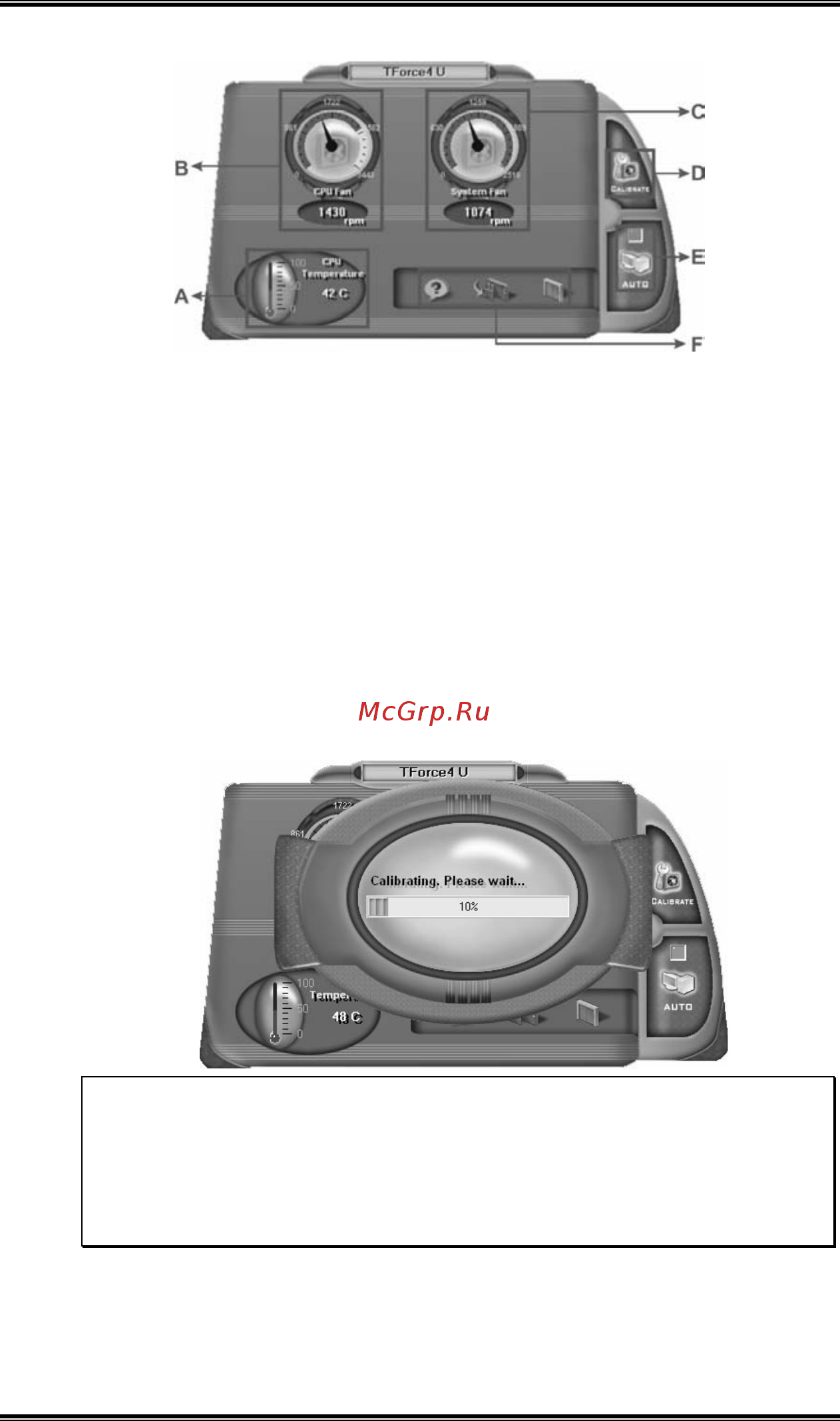

C. Smart Fan Function
When Smart Fan Function is activated, screens will pop-up to
illustrate the fan speed information.
i. CPU Temperature:
Show current CPU temperature.
ii. CPU Fan speed:
Show current CPU Fan speed.
iii. System Fan speed:
Show current system Fan speed.
iv. Calibrate:
When changing CPU Fan or System Fan, click on this
button to re-calibrate the Fan speed.
Note:
1. When Smart Fan Function activates for the first time, this ca librate
function would auto-run to get upper and lower limitation of CPU Fan and
System Fan.
2. When calibrating process is done, the calibrating window will auto-close,
and the main screen will show new fan speed data.
