Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
31

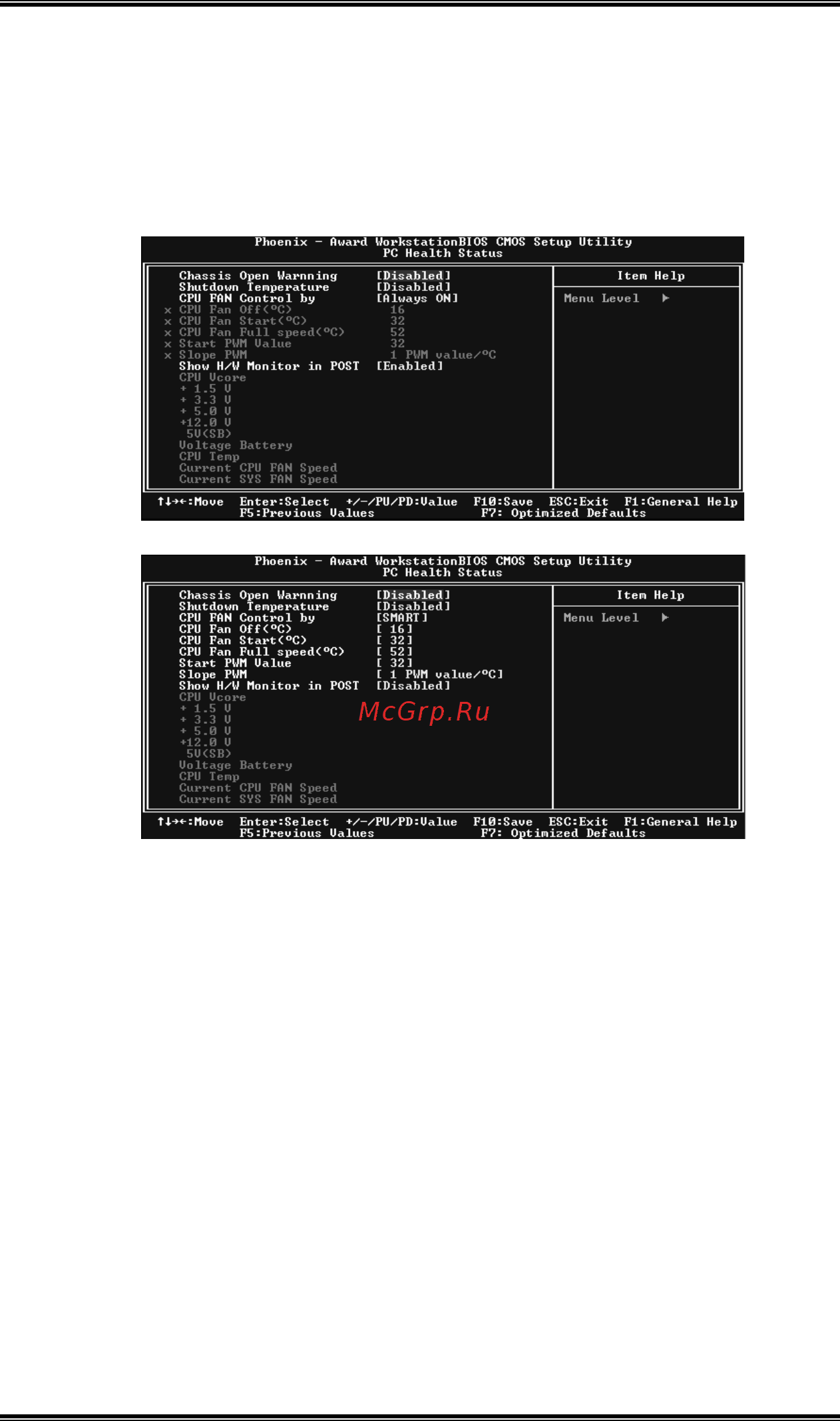

F. Smart Fan Function:
Smart Fan Function is under “PC Health Status”.
This is a brilliant feature to control CPU Temperature vs. Fan speed.
When enabling Smart Fan function, Fan speed is controlled
automatically by CPU temperature.
This function will protect CPU from overheat problem and maintain
the system temperature at a safe level.
↓
CPU Fan Off <℃>:
If the CPU temperature is lower than the set value, the CPU
fan will turn off. The range is from 0℃~127℃, with an interval
of 1℃.
Choices: 16℃ (default).
CPU Fan Start <℃>
The CPU fan starts to work when CPU temperature arrives to
this set value. The range is from 0℃~127℃, with an interval of
1℃.
Choices: 32℃ (default).
CPU Fan Full speed <℃>
When CPU temperature arrives to the set value, the CPU fan
will work under Full Speed. The range is from 0℃~127℃, with
an interval of 1℃.
Choices: 52℃ (default).
