TForce4 SE / TForce4 U SE
30
CPU Vcore, NB/SB Volt,+3.3V,+5.0V,+12.0V,5V(SB),Voltage Battery
Detect the system’s voltage status automatically.
CPU Temp
This field displays the current temperature of the CPU.
Current CPU FAN Speed
This field displays the current speed of CPU fan.
Current SYS FAN Speed
This field displays the current speed SYSTEM fan.
B 、
、、
、

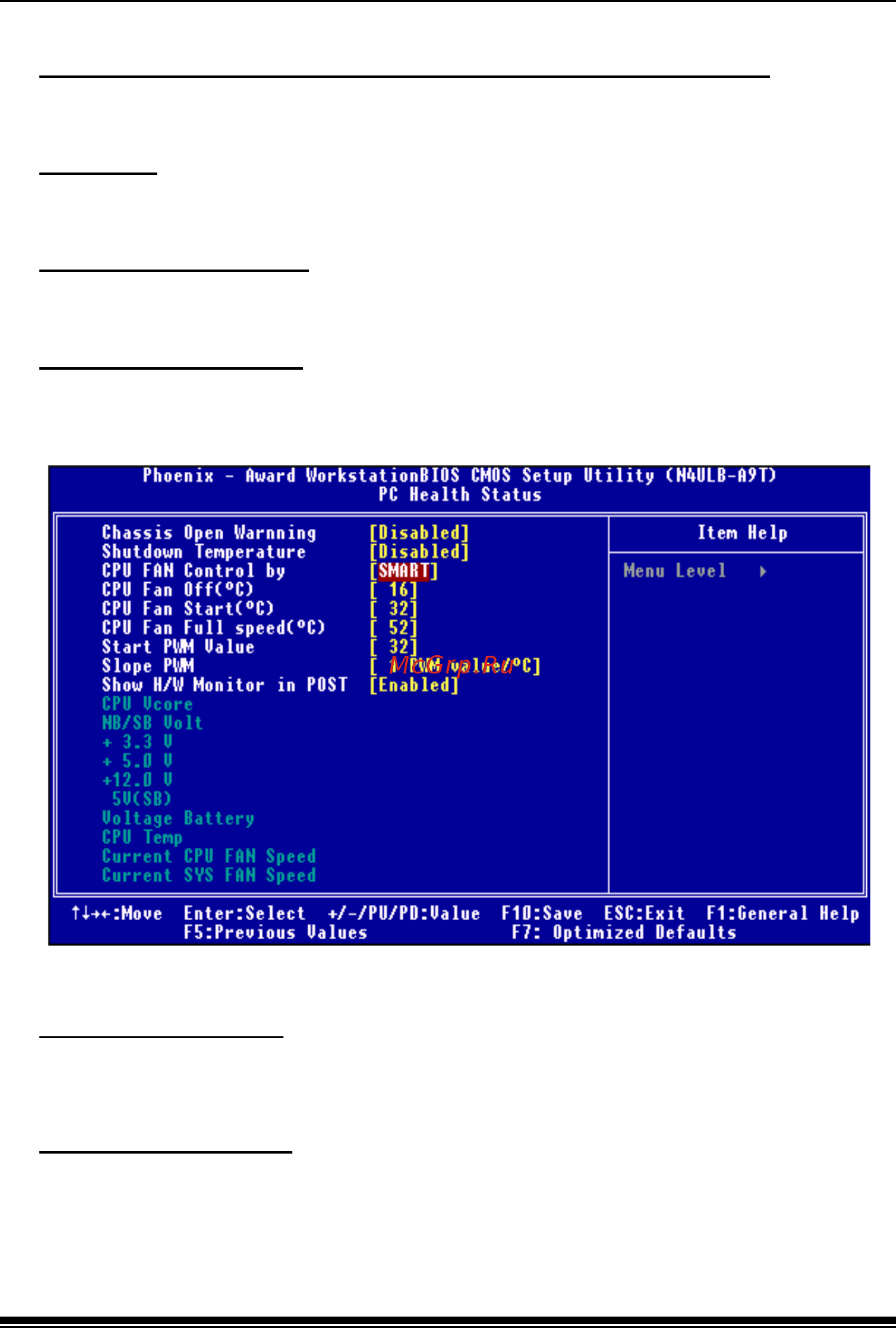

Figure 8. PC Health Status
Chassis Open Warning
This item allows you to enable or disable Chassis Open Warning beep.
The Choices: Disabled (default), Enabled.
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item only effective
under Windows 98 ACPI mode.
The Choices: Disabled (default), 60℃/140F, 65℃/149F, 70℃/158F.
