TForce4 SE / TForce4 U SE
35

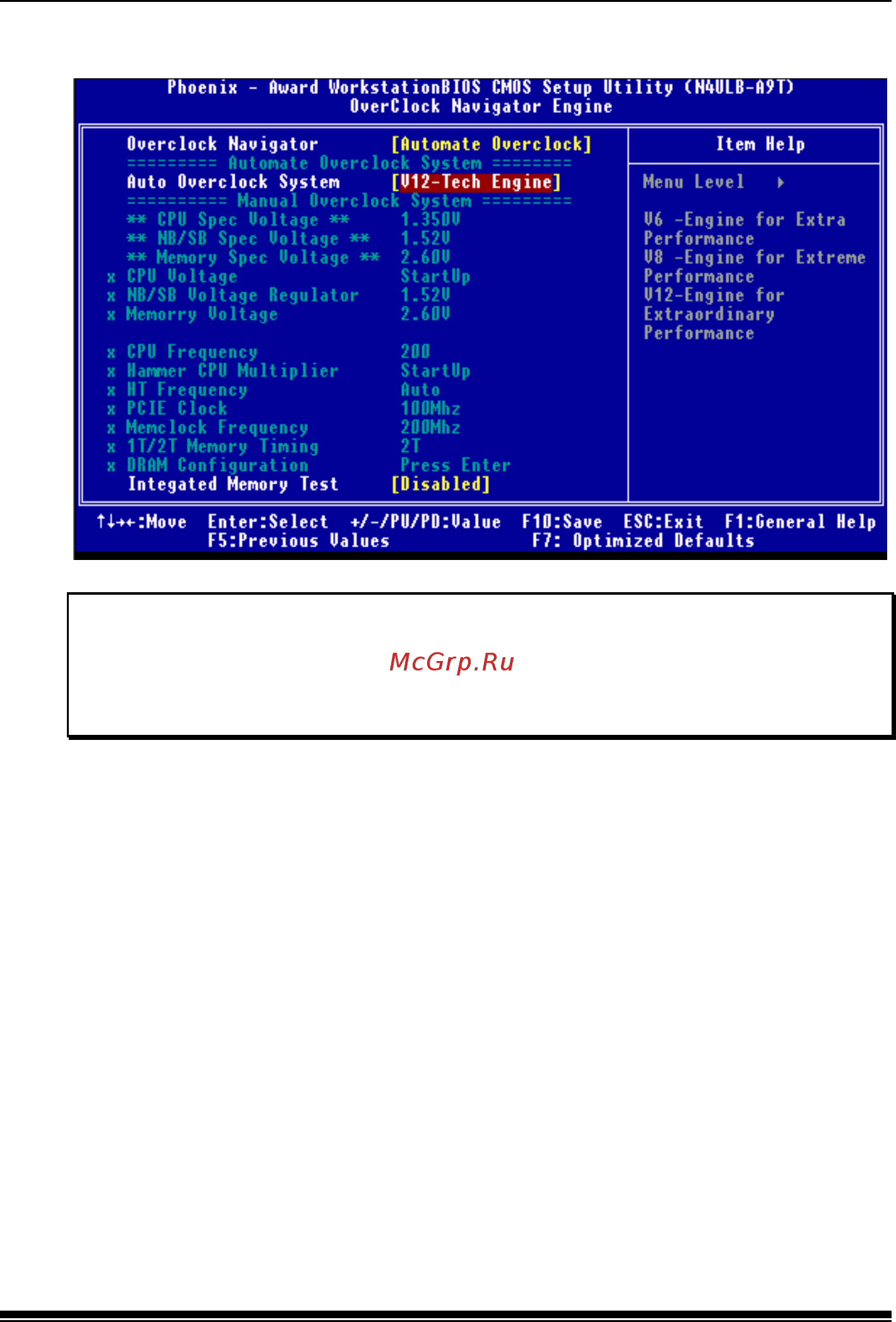

V12 Tech Engine
This setting will raise about 25%~30% of whole system performance.
Cautions:
1. Not all types of AMD CPU perform above overclock setting ideally; the difference
will be based on the selected CPU model.
2. From BET experiment, the Atholon64 FX CPU are not suitable for this A.O.S.
feature.
