Biostar T-Series TForce4 SE / TForce4 U SE
User’s Manual
25
4.2: T-POWER BIOS FEATURE

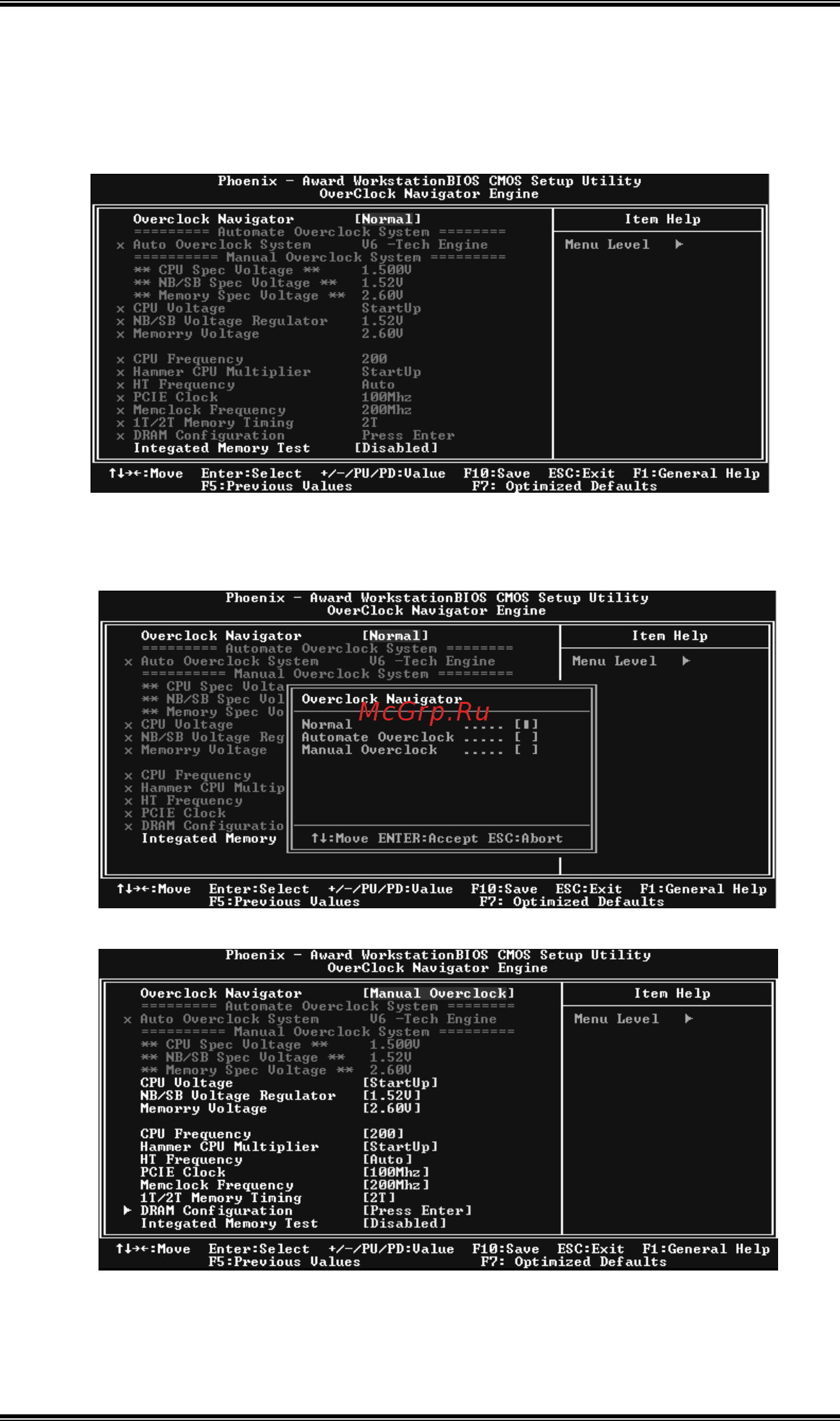

A. Overclocking Navigator Engine (O.N.E.):
ONE provides two powerful overclocking engines: MOS and
AOS for both Elite and Casual overclockers.
Manual Overclock System (M.O.S.)
MOS is designed for experienced overclock users.
It allows users to customize personal overclock settings.
