SiBE28-804 Field Settings
Test Operation 91
2.2 How to Change the Field Settings with the Wireless
Remote Controller
Optional
accessories
If optional accessories are mounted on the indoor unit, the indoor unit setting may have to be
changed.
Refer to OH08-1 or the installation manual (optional handbook) for each optional accessory.
Wireless remote
controller

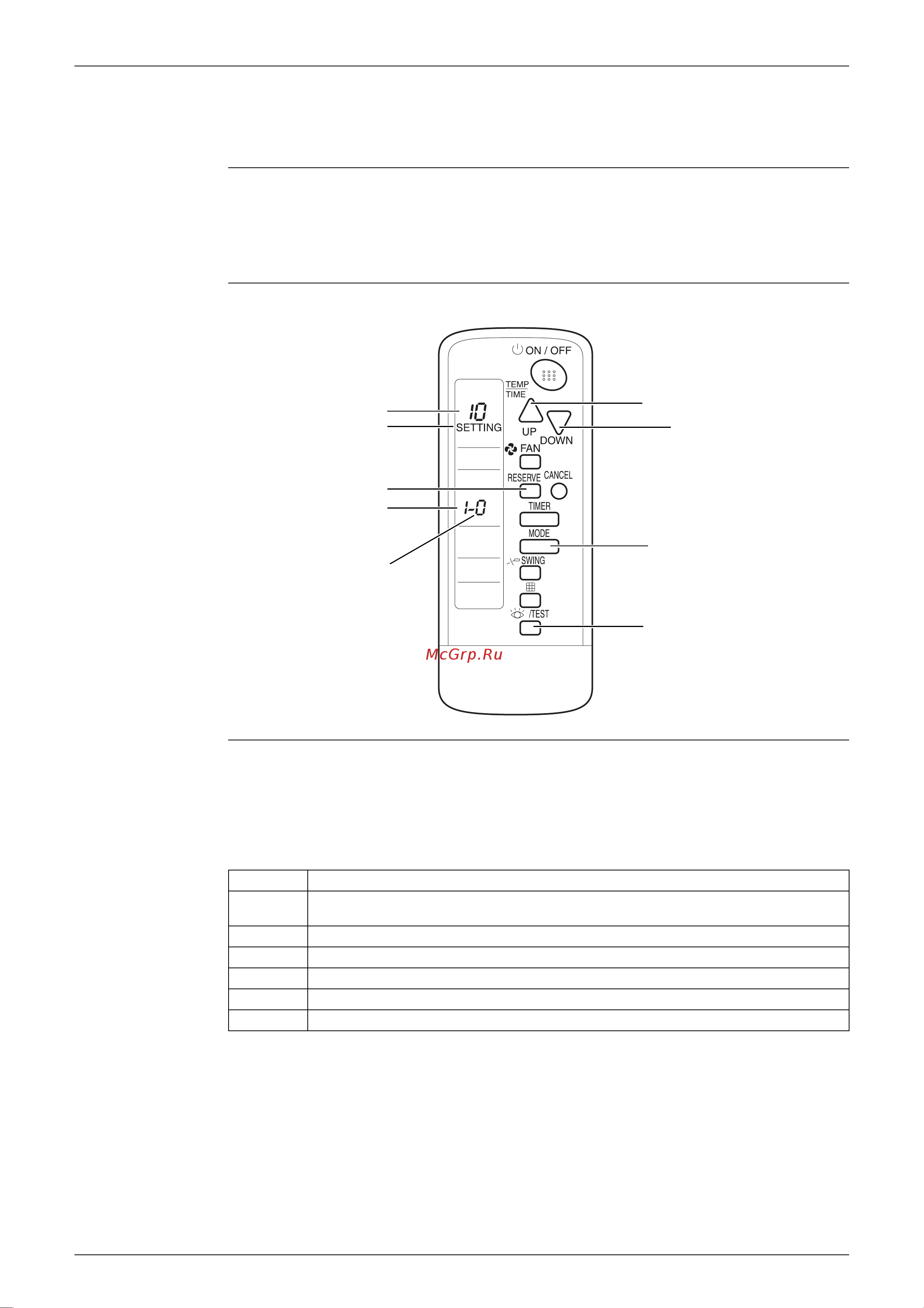

The illustration below shows the wireless remote controller.
Setting To set the field settings, you have to change:
“Mode No.”
“First code No.”
“Second code No.”.
To change the field settings, proceed as follows:
RESERVE button
INSPECTION/TEST button
Mode No.
Field setting mode
UP button
DOWN button
First code No.
Second code No.
MODE button
Step Action
1 Hold down the INSPECTION/TEST button for at least 4 s during normal mode to enter
the “Field setting mode”.
2 Press the MODE button to select the desired “Mode No.”.
3 Press the UP button to select the “First code No.”.
4 Press the DOWN button to select the “Second code No.”
5 Press the RESERVE button to set the present settings.
6 Press the INSPECTION/TEST button to return to the “Normal mode”.
