SiBE28-804 Test Run and Operation Data
Test Operation 117
Standard
Conditions
During or after maintenance, when the power supply is turned back on, operation restarts
automatically by the “auto restart function.” Please exercise the proper caution.
When perfoming maintenance, you should at least perform the following inspections:
Indoor Unit Conditions Outdoor Unit Conditions
Cooling Operation 27°C DB/19°C WB 35°C DB
Heating Operation 20°C DB 7°C DB/6°C WB

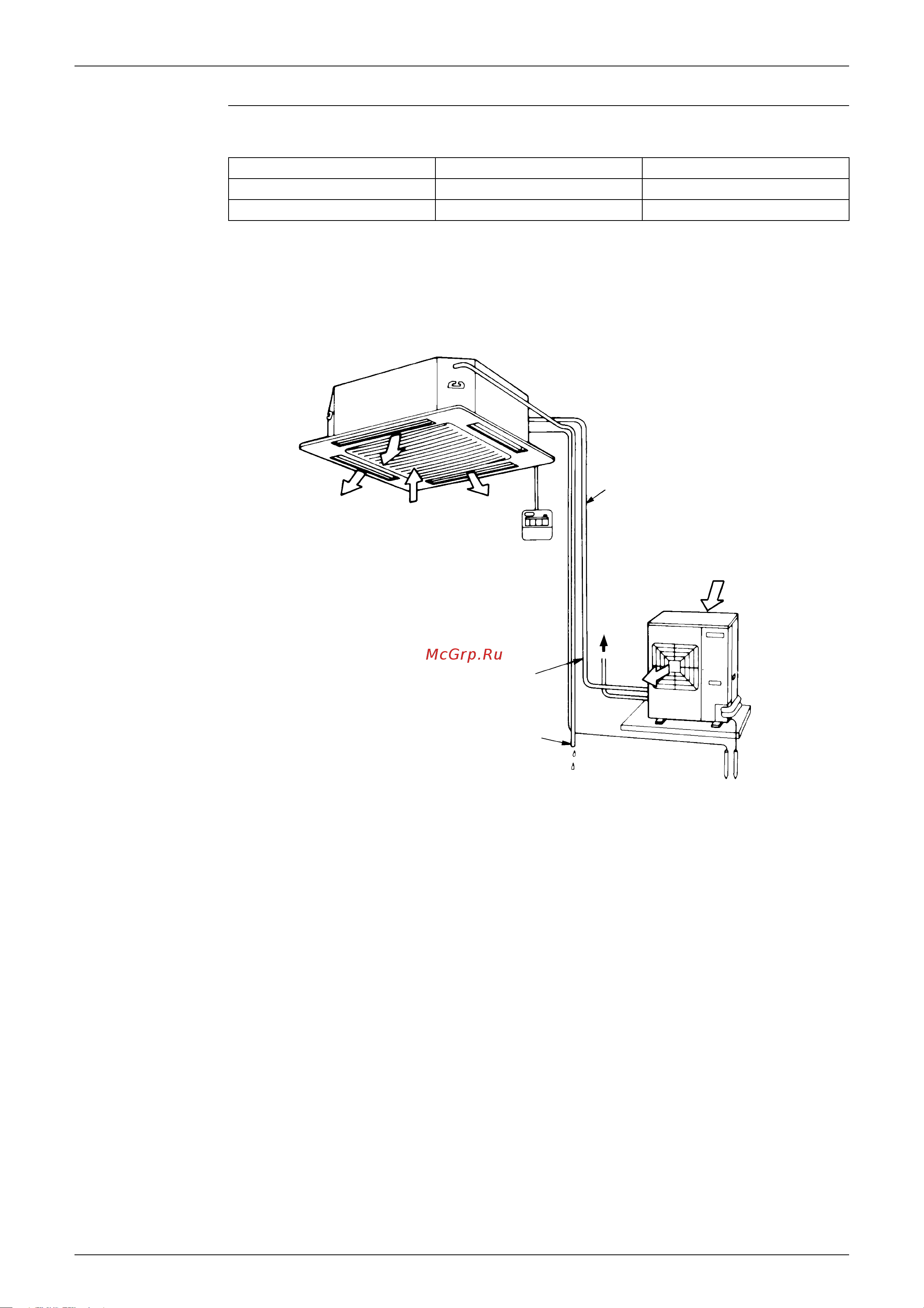

Indoor unit
Outdoor unit
Earth
Drain piping
Refrigerant piping
Transmission wiring between
indoor and outdoor units
To dedicated
breaker
Is the air filter dirty?
What about voltage and current?
What about switch capacity?
What about cable thickness?
