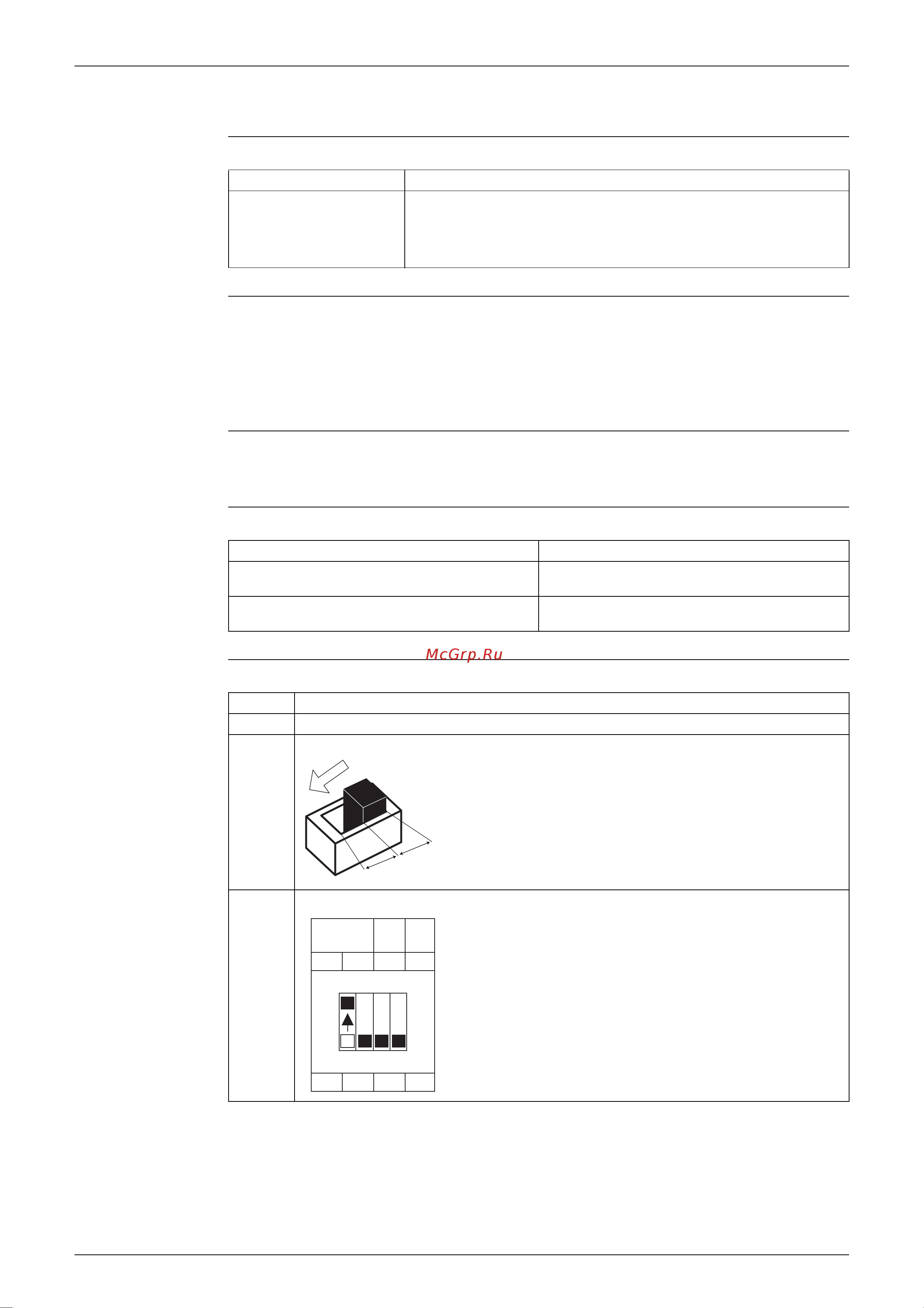

SiBE28-804 General Functionality
Functional Description 35
1.2 Forced Operating Mode (Emergency Operation)
Purpose The table below describes the purpose of the forced operating mode.
Starting
conditions
You can operate the system manually by changing the emergency switch on the indoor and
outdoor PC board from "normal" to "emergency". When the system is operating in "emergency"
it can not control the room temperature.
Both the indoor and outdoor unit must be set to "emergency" while the power is off.
Ending
conditions
You can end the emergency operation by changing the "emergency" switch back to "normal"
while the power is OFF.
Emergency
operation
Below table explains what will happen when the switch is set to "emergency":
How to set
Emergency
Operation
To set emergency operation, proceed as follows:
If... Then...
R/C is defective
Indoor PC board is
defective
Outdoor PC board is
defective
Forced operating mode can be used to go to cooling or heating. In
forced operating mode, the compressor is forced to operate until the
defective indoor or outdoor PC board is back online.
Changing the switch to "emergency" for the… Switches ON the…
Indoor unit Indoor fan
Drain pump
Outdoor unit Compressor
Outdoor fan(s)
Step Action
1 Turn OFF the power.
2 Switch ON the emergency switch (SS1) on the indoor PC board.
3 Switch ON the emergency switch on the outdoor PC board.
Normal
Emergency
EMERGENCY
ON COOL
OFF
1234
HEAT
