Troubleshooting by Remote Controller Display / LED Display SiBE28-804
210 Troubleshooting
5.35 “
P4
” Malfunction of Radiator Fin Temperature
Thermistor
Remote
Controller
Display
P4
Applicable
Models
RZQ(S)71~140
Method of
Malfunction
Detection
Detection by open or short circuit of the radiator fin temperature thermistor during the
compressor stops operating.
Malfunction
Decision
Conditions
When open or short circuit of the radiator fin temperature thermistor is detected during the
compressor stops operating
Supposed
Causes
Faulty radiator fin temperature thermistor
Faulty outdoor unit PC board

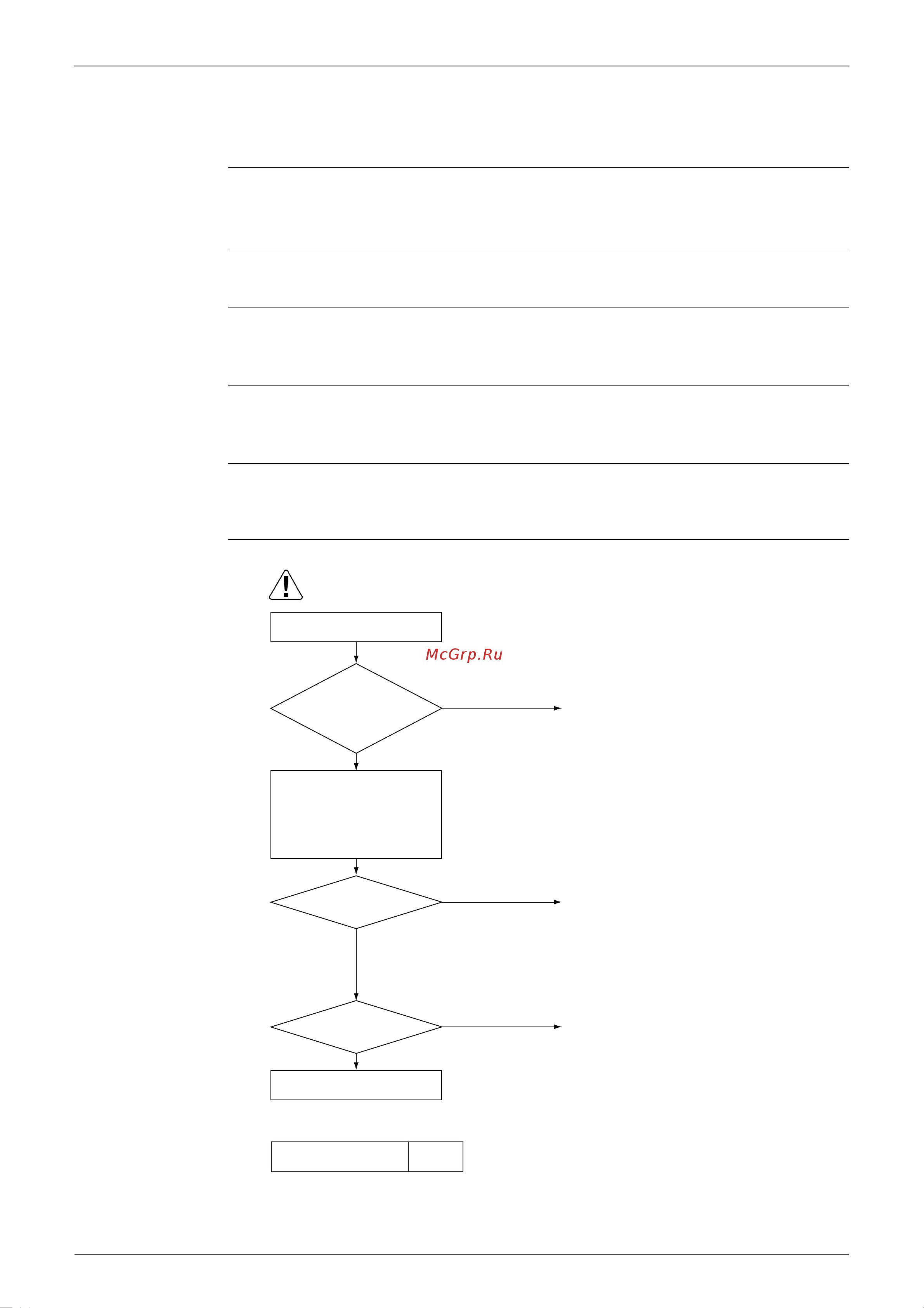

Troubleshooting
* Refer to P228~229 for “Thermistor temperature/Resistance characteristics”.
Disconnect the connector
from (∗) on inverter PC
board, then check the
thermistor resistance at the
ordinary temperature.
Normal?
(Note)
Check LED on the
outdoor unit PC board.
Reset
Does the radiator
fin temperature thermistor
malfunction?
Is reset possible?
(∗) Connector number
RZQ71~140C7,
RZQS71~140C7 (1φ),
X111A
YES
NO
YES
NO
NO
YES
Probe other factors than the malfunction.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Replace the outdoor PC board
(A2P).
Replace the outdoor PC board
(A2P).
