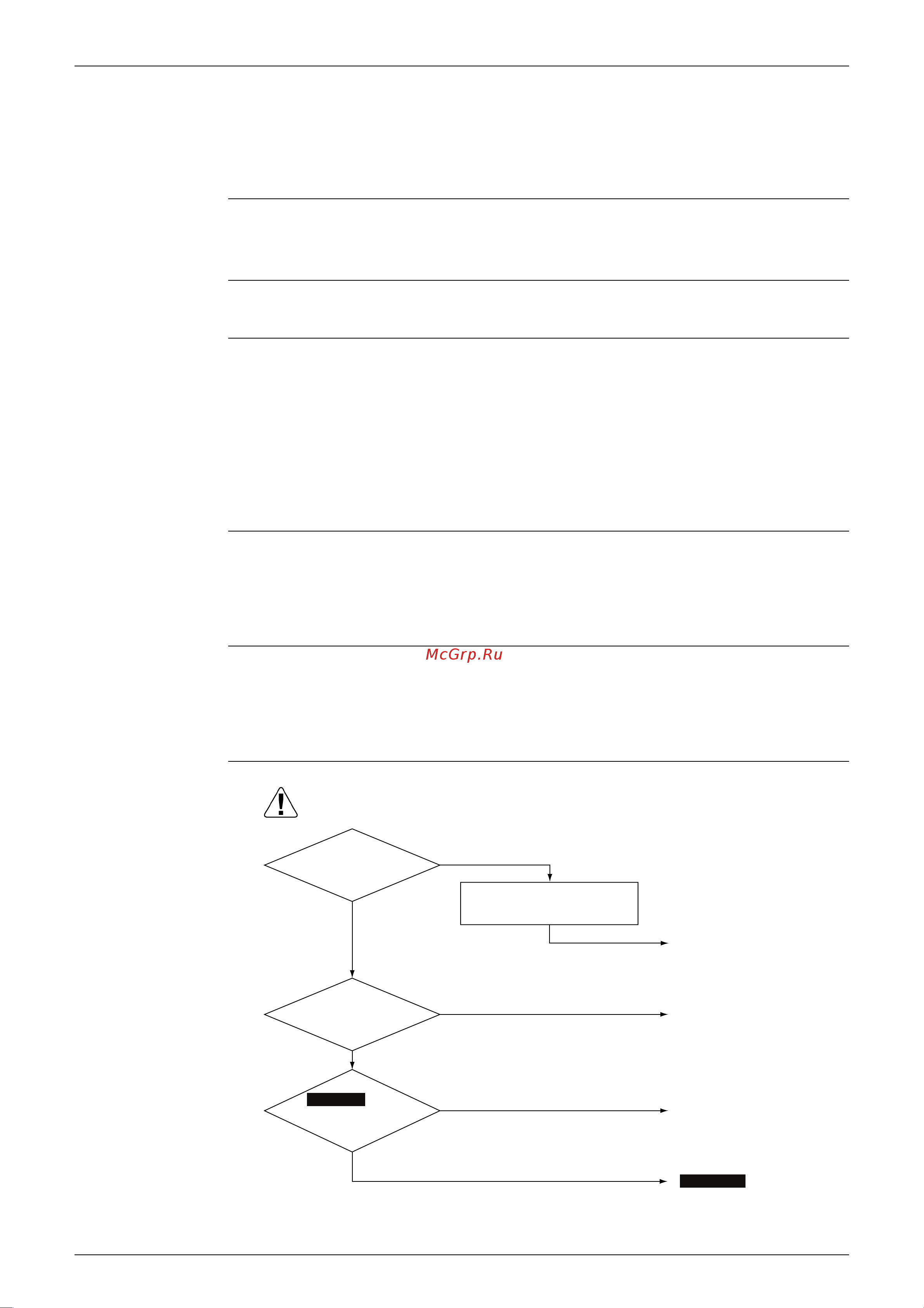

SiBE28-804 Troubleshooting by Remote Controller Display / LED Display
Troubleshooting 219
5.40 “
UF
” Malfunction of Transmission between Indoor and
Outdoor Unit / Piping and Wiring Mismatch / Gas
Shortage
Remote
Controller
Display
UF
Applicable
Models
RZQ(S)71~140
Method of
Malfunction
Detection
Check the transmission between the indoor and outdoor units with a microcomputer when the
power turned ON.
Detect by checking the following temperature differences during compressor operation.
A: Difference in temperature detected by the indoor heat exchanger thermistor (R2T) and
the indoor suction air thermistor (R1T)
B: Difference in evaporation temperature (Te) (or condensation temperature (Tc) during
heating operation) detected by the indoor heat exchanger thermistor (R2T) and the
compressor sensor
Malfunction
Decision
Conditions
When the inter-unit wiring between the indoor and outdoor units is incorrect
When the following conditions continue for 20 minutes during compressor operation
A: R2T – R1T < 4ºC, and
B: R2T – Te (or Tc during heating operation) > 14ºC (24ºC during heating operation)
Supposed
Causes
Faulty inter-unit wiring between the indoor and outdoor units
Mismatching of wiring and piping
Refrigerant shortage (out of gas)
Clogged refrigerant piping system
Troubleshooting
Does
"UF" appear when the
power is turned
ON?
YES
NO
Correctly connect
inter-unit wiring
between the indoor
and outdoor units.
The phase of inter-unit wiring
between the indoor and
outdoor units is incorrect.
Is the
connection of inter-unit
wiring and piping between the
indoor and outdoor units
matched?
NO
YES
YES
Match the connection
of the inter-unit wiring
and piping between
the indoor and
outdoor units.
Is the refrigerant
level proper?
(P236)
NO
Recharge a proper
amount of refrigerant
after refrigerant
collection and vacuum
drying.
(P232)
Check the refrigerant
piping system for
clogging.
Check 13
Check 8
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
