SiBE28-804 RZQ71C7, RZQS71·100C7V1B
Removal Procedure 273

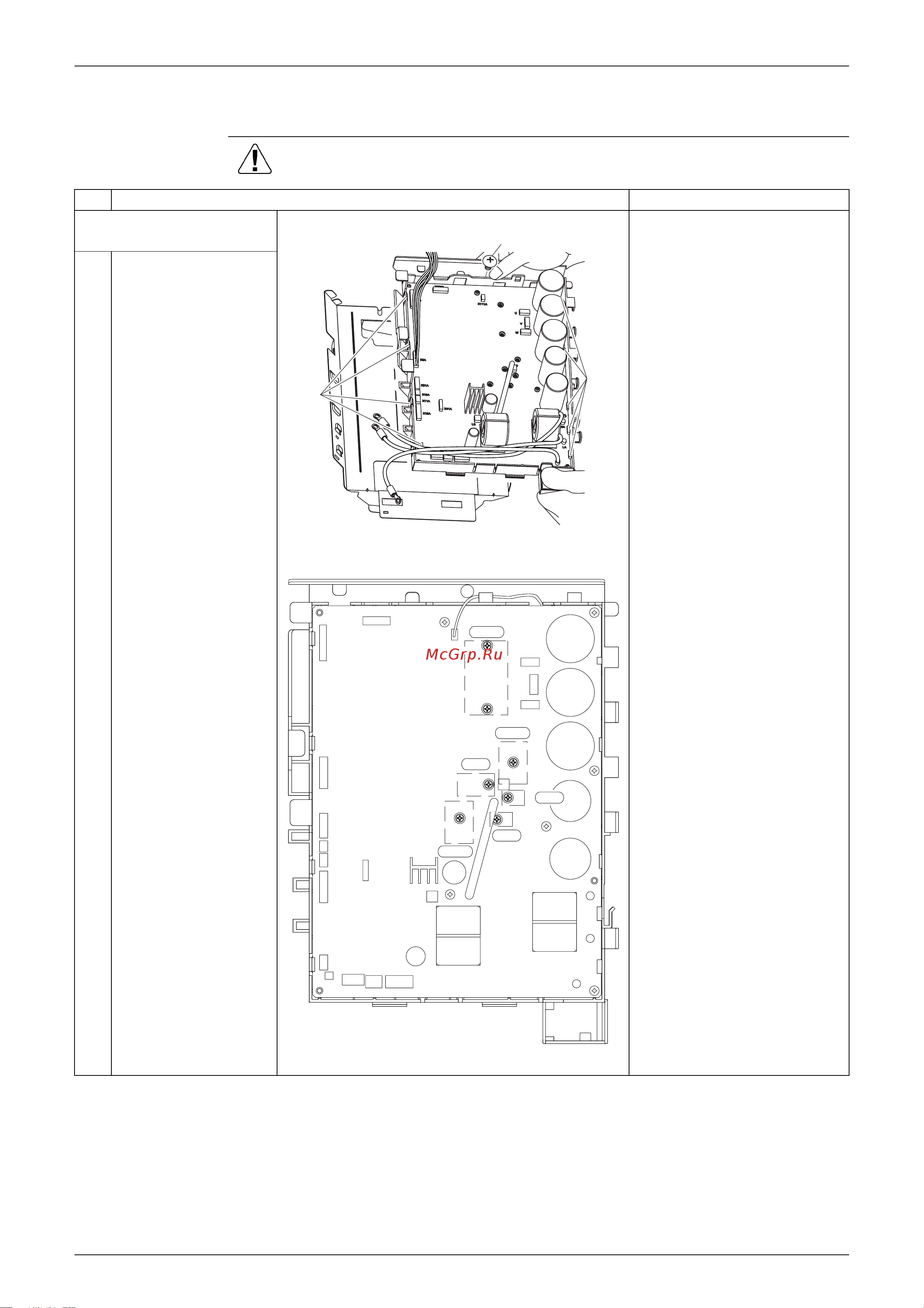

1.6 Removal of PC Board Assy (3)
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
3. Remove the assembly of
the PC board (AIP)
Assembly of the PC board (Retrieved)
1
Remove the connectors
on the PC board.
2
Remove the one screw
that fixes the electric
component to the
mounting plate.
3
Pull out the assembly of
the PC board, after
removing from the
hooks at the both sides
(nine locations).
Hooks
Hooks
Fixing screw
X6A
X21A
X5A
X13A
X11A
X41A
X17A
X32A
X25A
X77A X803A
X12A
X106A
X11A
LB
E
LA
NA
LC
W
V
U
DB501
IPM501
DB502
D531
D532
Q501
