SiBE28-804 Field Settings
Test Operation 113

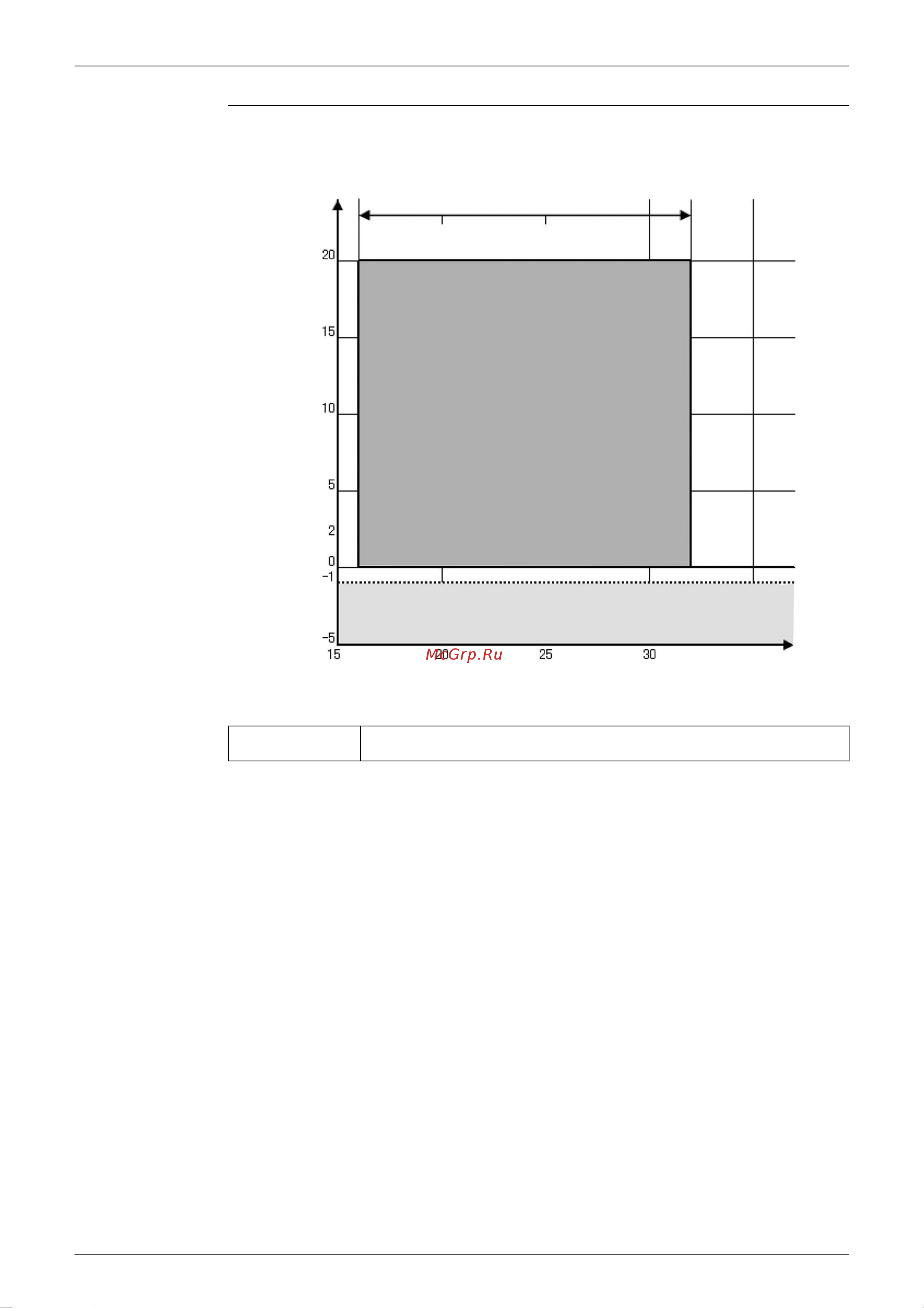

Graph 2 Target evaporating temperature control when "low humidity application" is selected. Field
setting 16(26)-2-03:
Note:
Remote controller setting temp.
Te target limitted ≤ 20˚C
(to protect the comp.)
Te (see note) target acceptable area
Indoor temp. > setting → Te target down
Indoor temp. < setting → Te target up
Te target limitted ≥ 0˚C
Freeze protection
(40min. integrated coil temp. ≤ -1˚C)
Te target acceptable area
Te target
(˚C)
Indoor Temp
(˚C DB)
Te by LP sensor RZQ71~140C7V1B,
RZQS71~140C7V1B
