SiBE28-804 Piping Diagrams
Appendix 259

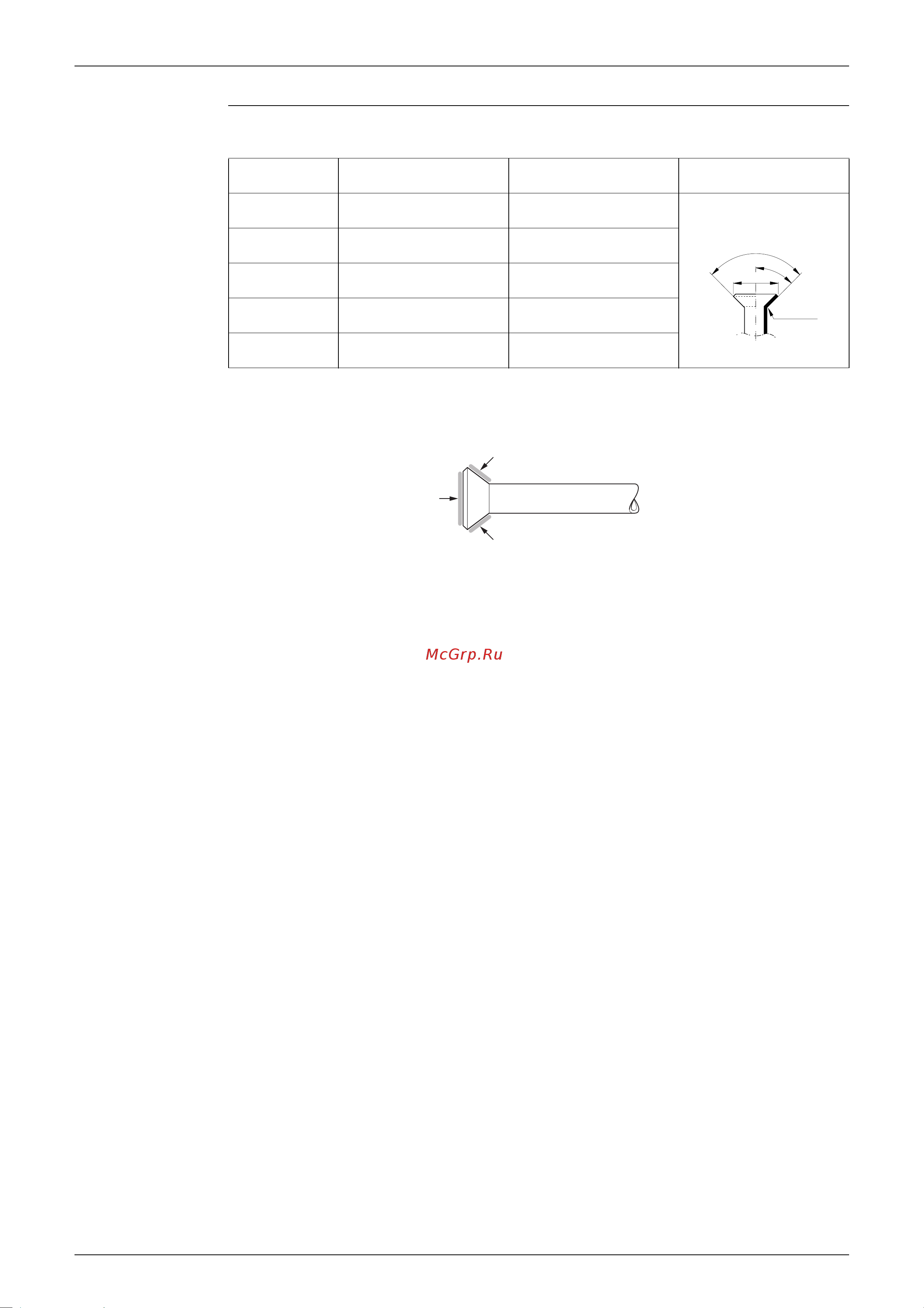

Caution for flare
connections
Refer to below table for correct flare dimensions and tightening torques. Too high tightening
force may cause refrigerant leak because of flare cracking:
When connecting the flare nut, apply refrigerating machine oil to the flare (inside and
outside) and first screw the nut 3 or 4 turns by hand. Coat the indicated surfaces using ether
or ester oil:
After completing the installation, carry out an inspection of the piping connections by
pressure test using nitrogen.
Piping size
Flare nut
tightening torque
A dimensions for
processing flares (mm)
Flare shape
φ 6.4
14.2~17.2 N·m
(144~176 kgf·cm)
8.7~9.1
φ 9.5
32.7~39.9 N·m
(333~407 kgf·cm)
12.8~13.2
φ 12.7
49.5~60.3 N·m
(504~616 kgf·cm)
16.2~16.6
φ 15.9
61.8~75.4 N·m
(630~770 kgf·cm)
19.3~19.7
φ 19.1
97.2~118.6 N·m
(989.8~1208 kgf·cm)
23.6~24.0
R=0.4~0.8
45°
±
2
90°
±0.5
A
