SiBE28-804 Outdoor Unit Functional Concept
Functional Description 61
3. Outdoor Unit Functional Concept
3.1 Function Outline in Cooling Mode

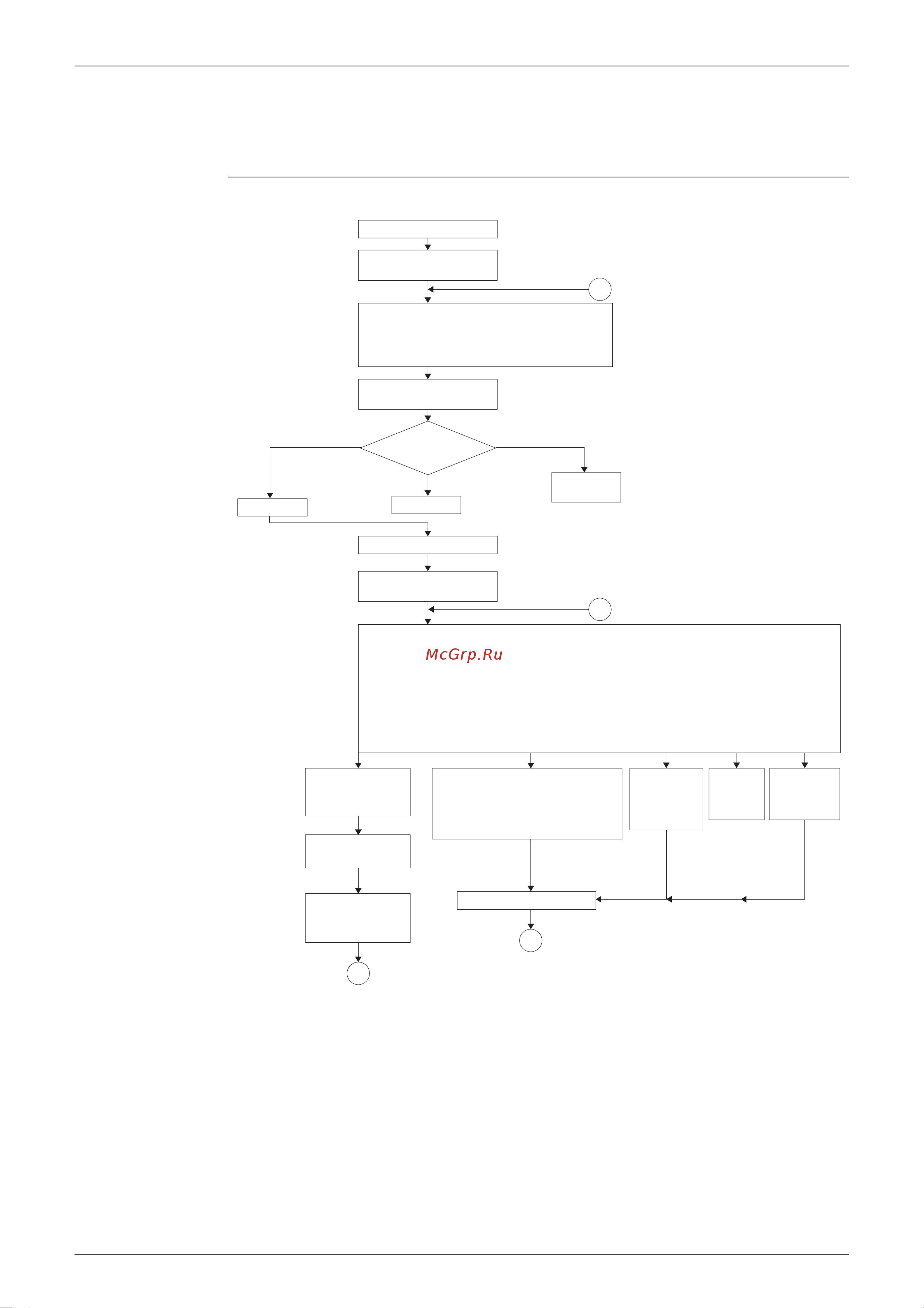

Flow chart Cooling/Dry operation
*1 Only for Trank Shaped : RZQ100~140C7, RZQS125·140C7V1B
Power supply ON
Initialize motorized valve
Initialize microcomputer
Crank case heater control *1
Preheating operation control
Remote controller
operation judgement
Operation mode
judgement
Cooling/Dry
Heating
Emergency
operation
Thermostat ON judgement
Starting control
4-way valve changeover
Compressor step control
Motorized valve PI control
PMV control
Low pressure protection control
High pressure protection control
Discharge pipe temperature protection control
Inverter current protection control
Inverter fin temperature protection control
Overall current protection control
Low outdoor temperature cooling control
Simulated operation
Normal control
Oil recovery
operation starting
judgement
Oil recovery
operation
Oil recovery
operation ending
judgement
Remote
control
operation OFF
judgement
Standby
judgement
Malfunction
stop
judgement
Thermostat OFF judgement
Thermostat OFF by <
∆
> Tr
Thermostat OFF by freeze-up
protection
Restart standby
A
B
B
A
Cooling/Dry Emergency
Heating
Turn on the power to crankcase heater *1
