SiBE28-804 Test Run and Operation Data
Test Operation 119
3.2 Operation Range
Conditions The illustrations in this section are based on the following conditions:
Equivalent piping length: 7.5 m
Level difference: 0 m
Air flow rate: High.
Operation range:
Cooling

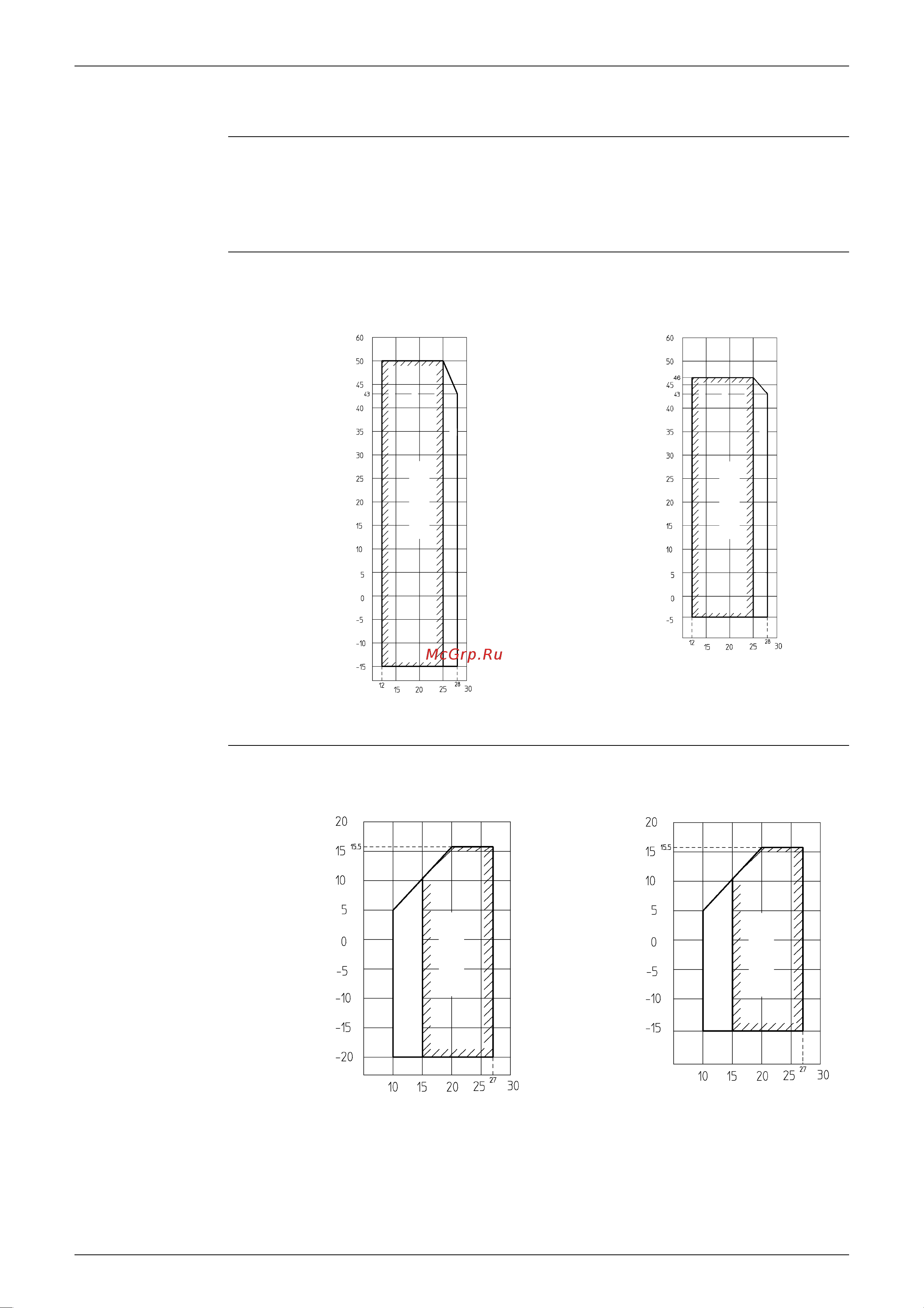

The illustration below shows the operation range.
Operation range:
Heating
The illustration below shows the operation range.
Notes: • Depending on operation and installation conditions, the indoor unit can change over to freeze-
up operation (Indoor de-icing).
• To reduce the freeze-up operation (Indoor de-icing) frequency it is recommended to install the
outdoor unit in a location not exposed to wind.
RZQ Series RZQS Series
Outdoor temp.
(˚C DB)
Indoor temp.
(˚C WB)
Allowable range of operation (Pull-down)
Operation range
Outdoor temp.
(˚C DB)
Indoor temp.
(˚C WB)
Allowable range of operation (Pull-down)
Operation range
RZQ Series RZQS Series
Outdoor temp.
(˚C WB)
Indoor temp.
(˚C DB)
Operation range
Allowable range of operation
(Warming up)
Outdoor temp.
(˚C WB)
Indoor temp.
(˚C DB)
Operation range
Allowable range of operation
(Warming up)
