PCB Layout SiBE28-804
264 Appendix
6. PCB Layout
6.1 RZQ71C7, RZQS71·100C7V1B
Control PC board
(A1P)

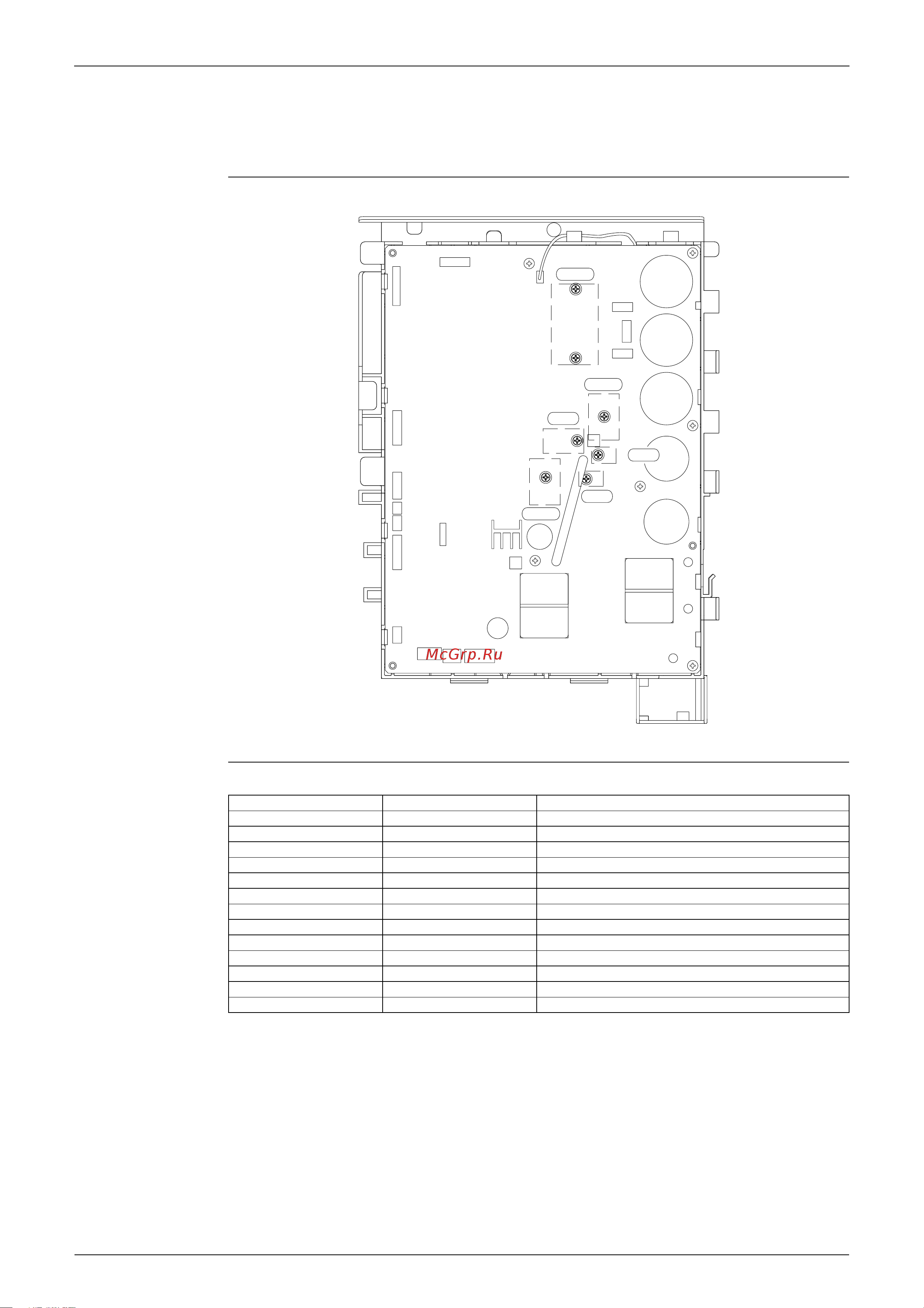

The illustration below shows the PC board connectors.
Connectors The table below describes the PC board connectors.
X6A
X21A
X5A
X13A
X11A
X41A
X17A
X25A
X77A X803A
X12A
X106A
X11A
LB
E
LA
NA
LC
W
V
U
DB501
IPM501
DB502
D531
D532
Q501
Connector Connected to Description
X5A X205A (on A2P)
X6A
X11A R1T Air thermistor
X12A R2T, R3T, R4T, R5T Thermistor
X13A R6T Liquid thermistor
X17A S1NPH Pressure sensor
X21A Y1E Expansion valve
X25A Y1S Solenoid valve (4 way valve)
X32A S1PH Pressure switch (High)
X77A
X106A M1F Motor (Fan)
X111A R10T Thermistor (Fin)
X803A X1M Terminal strip connector
