45 / 322

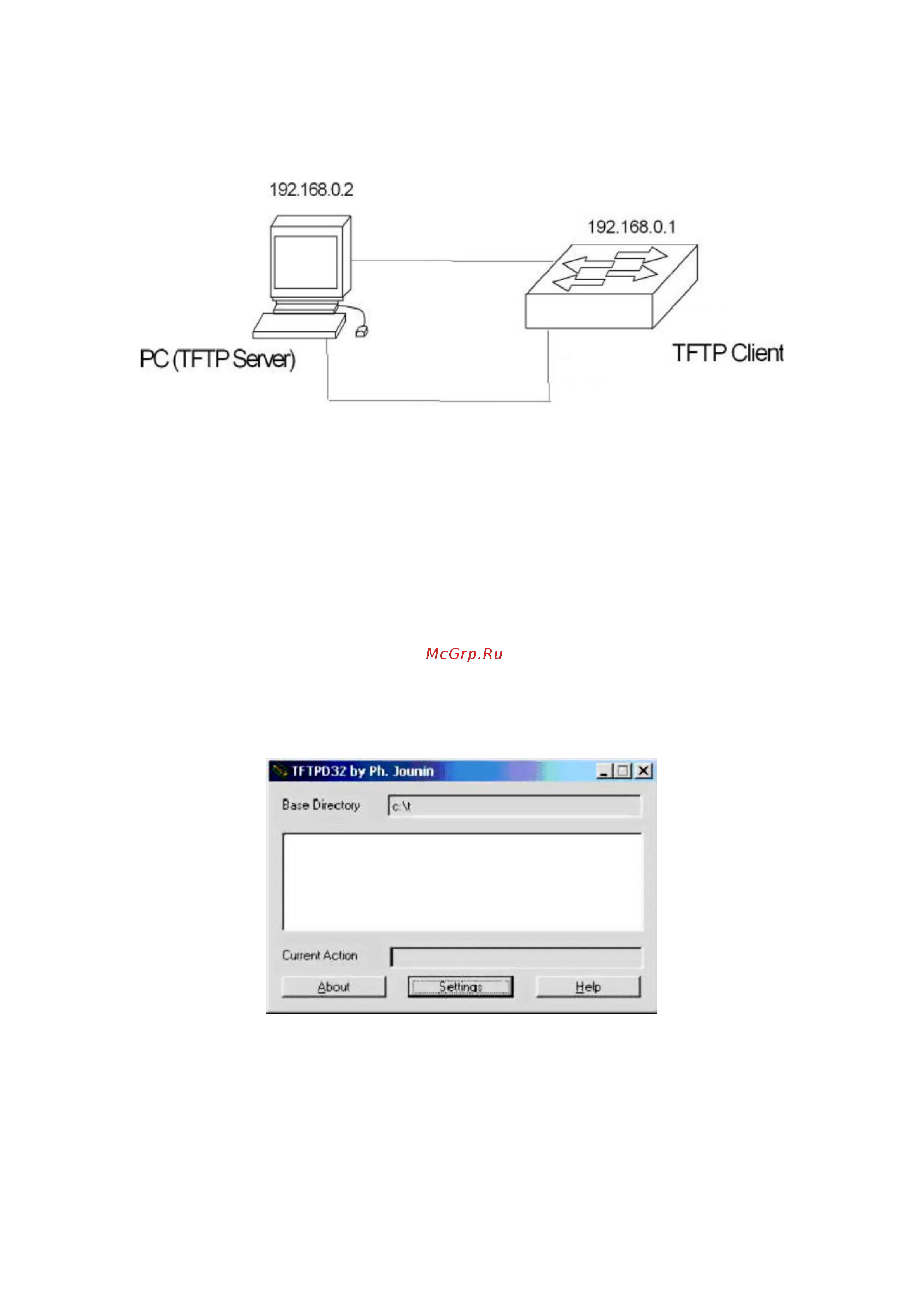

The configuration port of the switch is connected to a configuration terminal through the

cable and connected with a PC through the network cable。Install TFTP Server in PC, configure

Ethernet port IP address of PC, assume the IP address of PC is 192. 168.0.2。Then, configure the

IP address of the switch, where the IP address of the switch is assumed to be 192.168. 0.1 to

ensure the connectivity between the PC and the switch。

Second steps：Start TFTP Server, configure TFTP Server parameters。

Run TFTP Server, the window interface as below：

Then, set the directory of the backup configuration file. The specific operation is, click the

[Settings] button, set the interface, the following chart：
