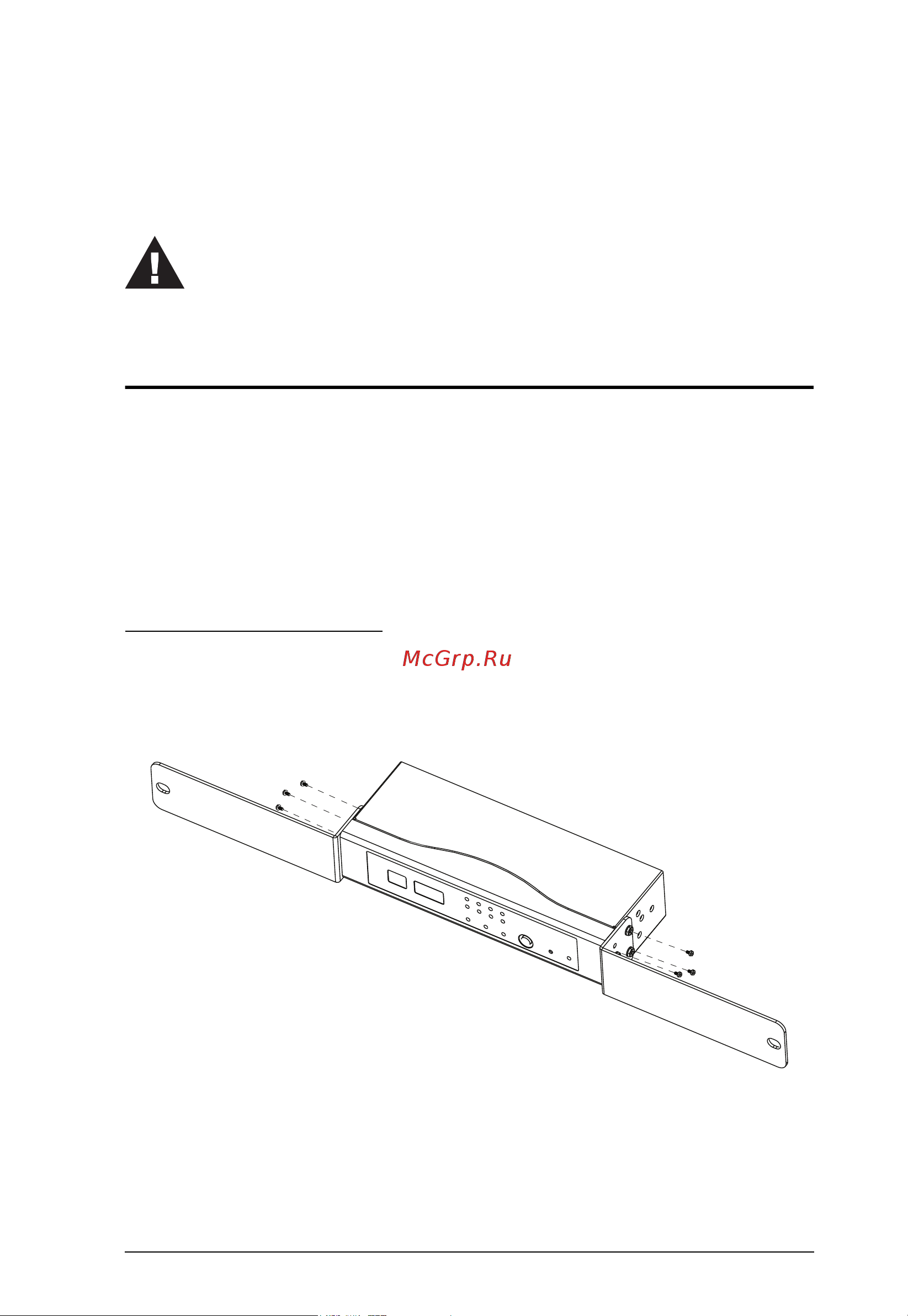

9
Chapter 2
Hardware Setup
Rack Mounting
The EC1000 can be mounted in a 19” (1U) rack or in an 0U configuration
mounted to the side of the rack. To rack mount the device, use the rack
mounting brackets that came with your device. The brackets are screwed to the
front, rear or middle sides of the device, depending on the installation type and
then the unit can slide into the front of the rack, or mount to the side of the rack,
as shown in the diagrams below:
Rack Mounting - Front
1. Use 3 M3 x 8 Phillips hex head screws supplied with the rack mounting kit
to screw the rack mounting brackets into the sides near the front of the
unit.
2. Position the unit in the front of the rack and align the holes in the mounting
brackets with the holes in the rack.
1. Important safety information regarding the placement of this
device is provided on page 63. Please review it before proceeding.
