EC1000 User Manual
68
IP Address Determination
If you are an administrator logging in for the first time, you need to access the
Energy Box in order to give it an IP address that users can connect to. There
are two methods to choose from. In each case, your client computer must be on
the same network segment as the Energy Box. After you have connected and
logged in you can give the device its fixed network address. (See IPv4
Configuration, page 36)
Method 1:
For computers running Windows, an IP address can be determined and/or
assigned with the IP Installer utility. The utility can be obtained from our
website. After downloading the utility to your computer, do the following:
1. Unzip the contents of IPInstaller.zip to a directory on your hard drive.
2. Go to the directory that you unzipped the IPInstaller program to and run

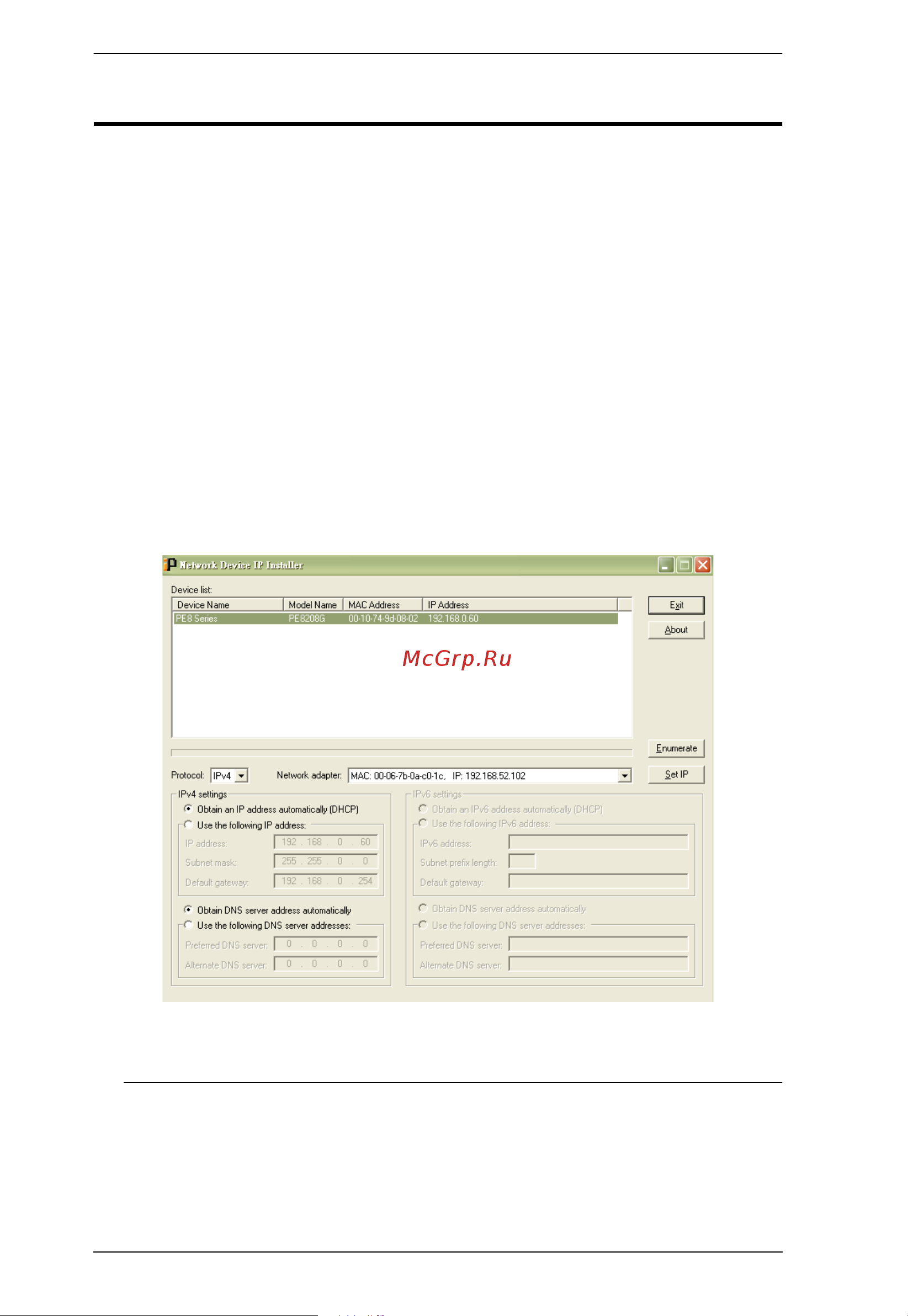

IPInstaller.exe. A dialog box similar to the one below appears:
3. Select the device in the Device List.
Note: 1. If the list is empty, or your device doesn't appear, click
Enumerate to refresh the Device List.
