Aten EC1000 [38/81] Configuration

EC1000 User Manual

Configuration

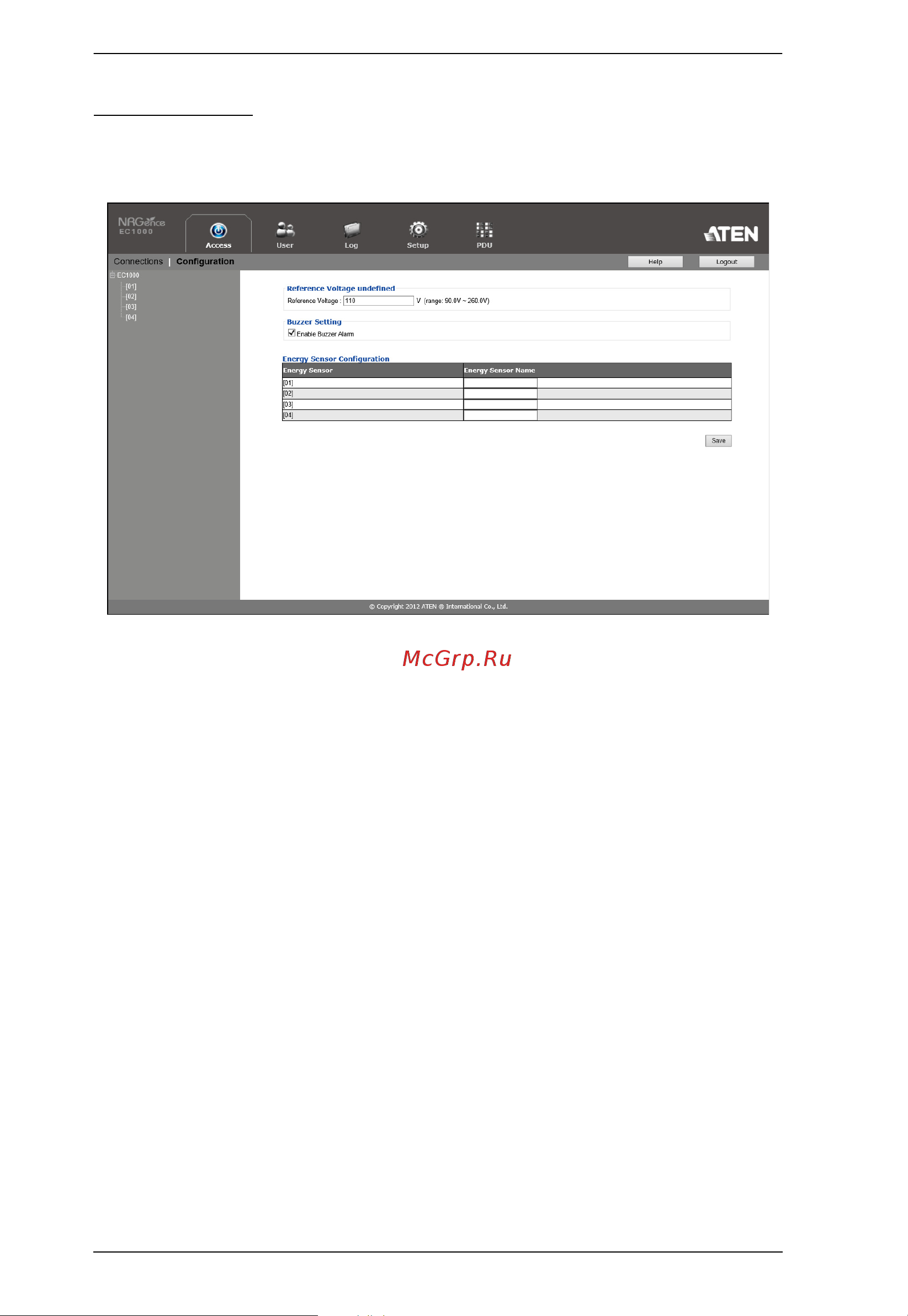

The Configuration page is used to set Reference Voltage, Buzzer Setting and

name the sensor ports of each Energy PDU:

Enter a reference voltage between 90.0V and 260.0V.

Check/uncheck the checkbox of Enable Buzzer Alarm to enable/disable buzzer

alarm.

Each Energy Sensor port can be given a distinctive name. The maximum

number of characters is 15.

When you have finished making your changes, click Save.
