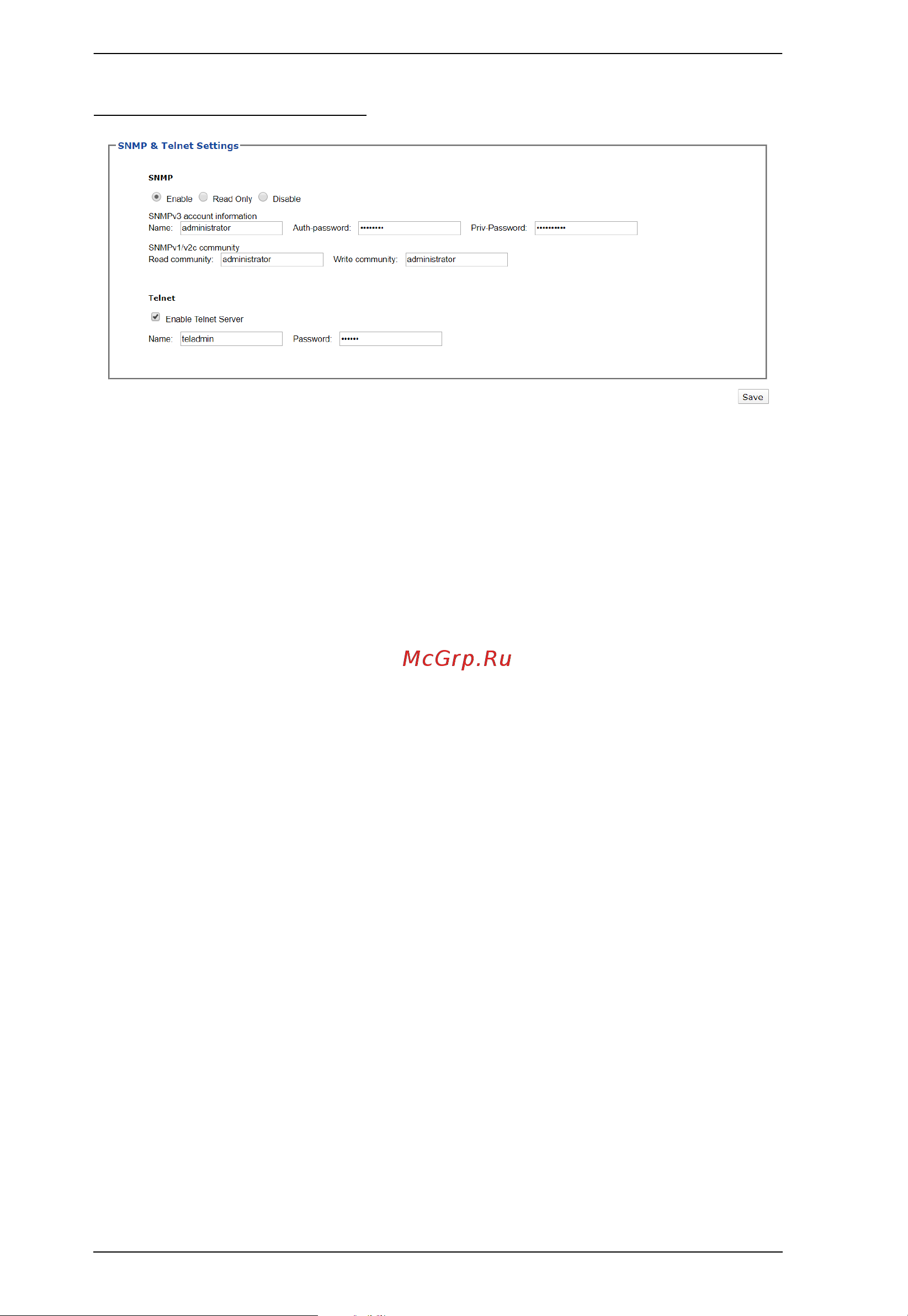

Aten EC1000 [56/81] Snmp telnet settings

EC1000 User Manual

SNMP & Telnet Settings

Click to select Enable, Read Only or Disable SNMP settings and fill in the

details of the following sections.

SNMPv3 Account Information

 Enter values for Name, Auth-Password and Priv-Password for SNMPv3

authentication, if required.

SNMPv1/v2c Community

 Enter values Read community and Write community for SNMPv1/V2c

authentication, if required.

Telnet

 Check/uncheck to enable/disable Telnet Server.

 Use the Name and Password fields to change the account used to login via

Telnet sessions.

Click Save to save your settings.
