Chapter 4. Browser Operation

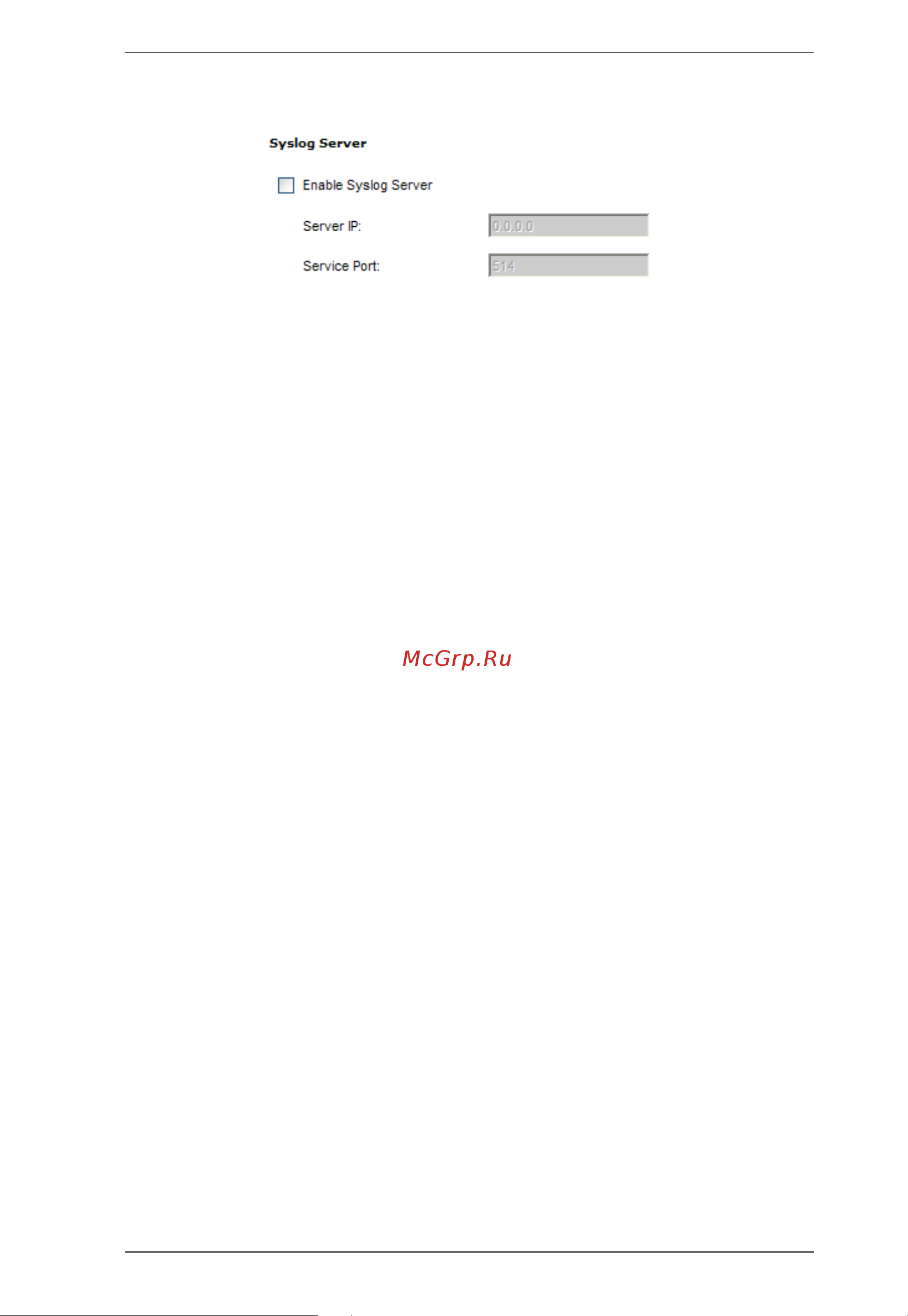

Syslog Server

To record all the events that take place on EC1000 devices and write them to

the Syslog server, do the following:

1. Check Enable Syslog Server.

2. Key in the Server IP and the Service Port of the Syslog server. The valid

port range is 1-65535. The default port number is 514.
