Chapter 4. Browser Operation
29
User

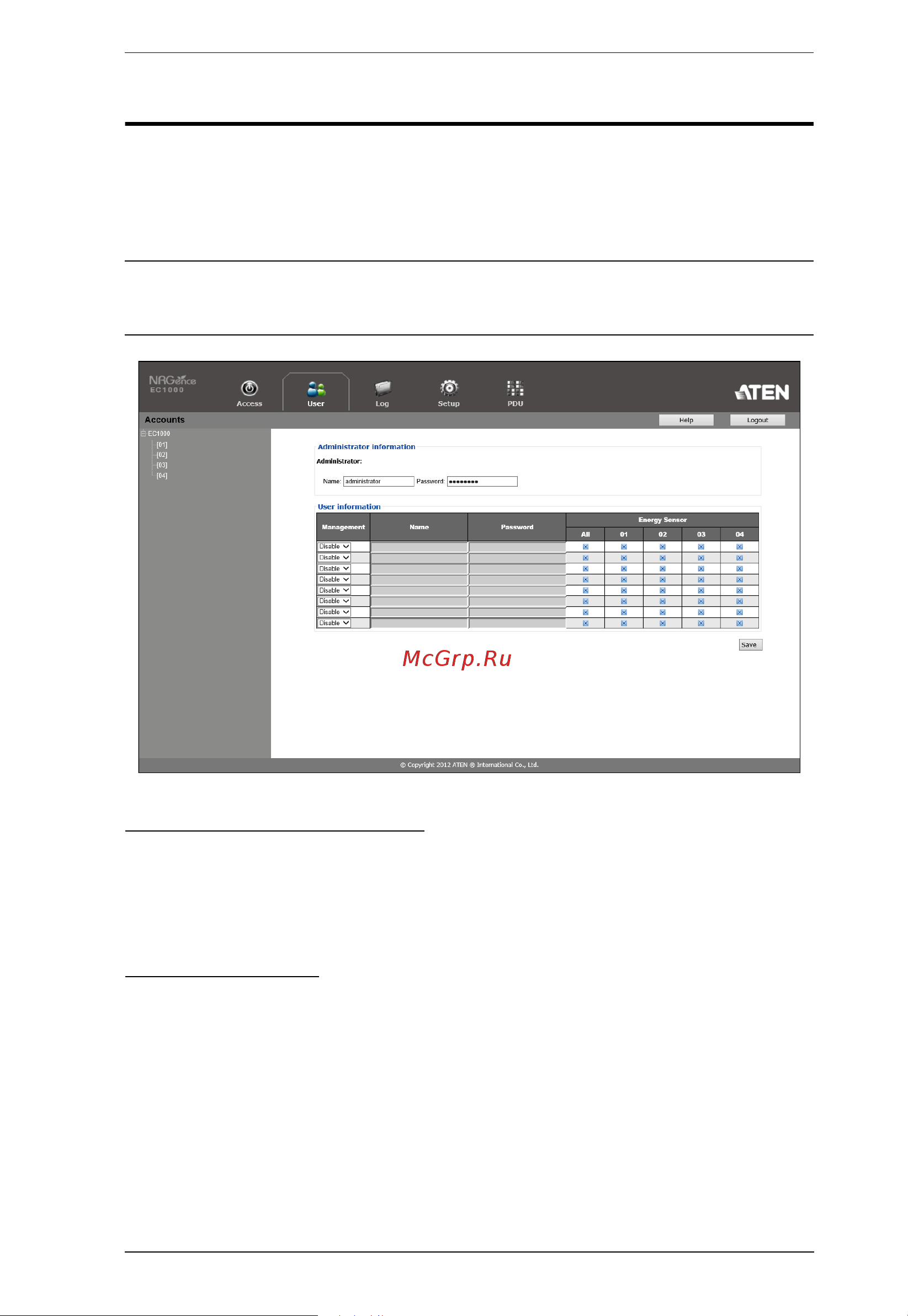

When you select the User tab the screen comes up with Administrator
Information and User Information displayed in the main panel. The EC1000
supports one administrator account and up to eight user accounts.
Note: 1. Each account can support 2 login sessions.
2. The EC1000 supports a total of 3 concurrent login sessions.
Administrator Information
This section is used to set the administrator name and password for browser
login. Only administrators can view this section. For details, see Changing the
Administrator Login, page 24.
User Information
To add a user, do the following:
1. Set the Management field to Enable.
2. Enter a name in the Name field.
3. Click the Password field and a pop-up window will appear to ask you to
enter the password and confirm it.
