Aten EC1000 [37/81] Monitor status

Chapter 4. Browser Operation

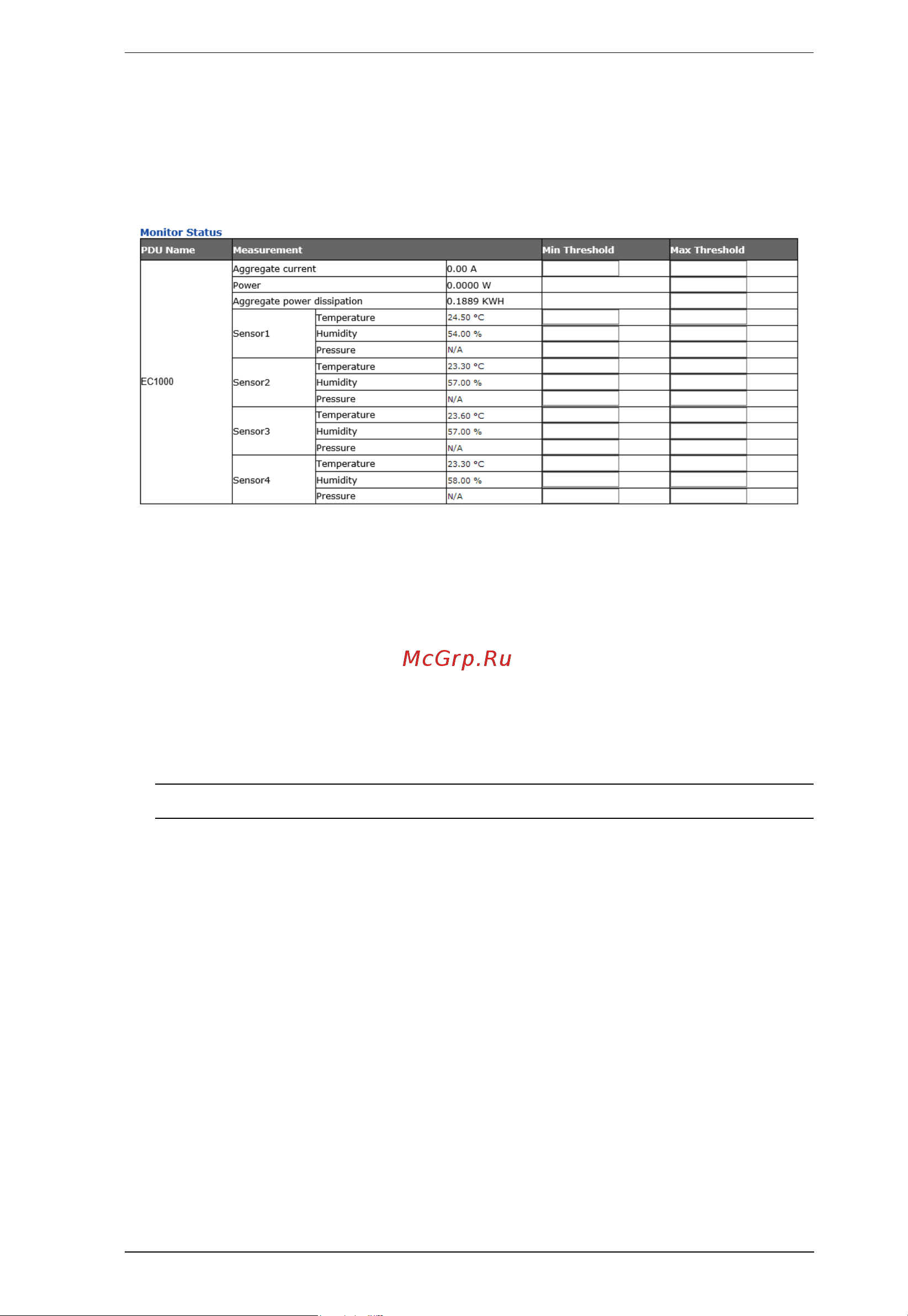

Monitor Status

The EC1000 Energy Box supports the monitoring from four environmental

sensors*. The Monitor Status section allows you to view the status and set up

environmental management configurations for each sensor device:

 Measurement

This field displays the measurement type (Temperature, Humidity,

Differential Pressure) and real-time reading of each sensor.

 Threshold Settings

These fields are used to set the maximum, and minimum threshold settings

for Temperature, Humidity, and Differential Pressure. If a range falls

below the minimum setting, or exceeds the maximum setting an alarm is

triggered.

Note: Sensors are optional accessories. see Optional Accessories, page 5.
