Руководство пользователя Страница: 47

Aten EC1000 [47/81] Date time

Chapter 4. Browser Operation

Date/Time

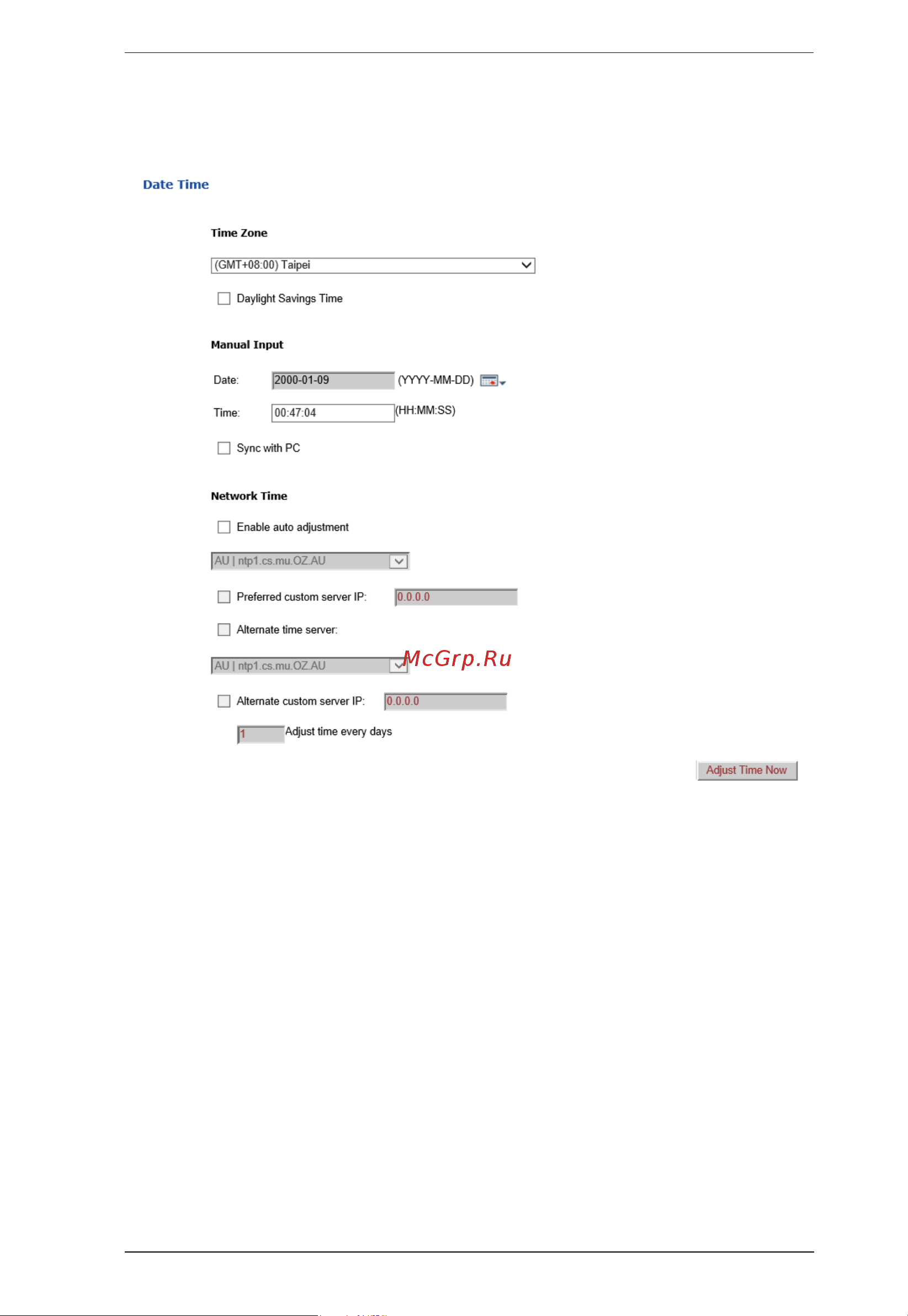

The Date/Time dialog page sets the EC1000 Energy Box time parameters:

Set the parameters according to the information described below.

 Time Zone

 To establish the time zone that the EC1000 is located in, drop down the

Time Zone list and choose the city that most closely corresponds to where

it is at.

 If your country or region employs Daylight Saving Time (Summer Time),

check the corresponding checkbox.

 Manual Input

Use this section to specify the EC1000’s date and time manually.

 Click the calendar icon and click the calendar entry for the date.

 Key the time into the Time field, using the HH:MM:SS (hours, minutes,

seconds) format.
