Aten EC1000 [43/81] Notification settings

Chapter 4. Browser Operation

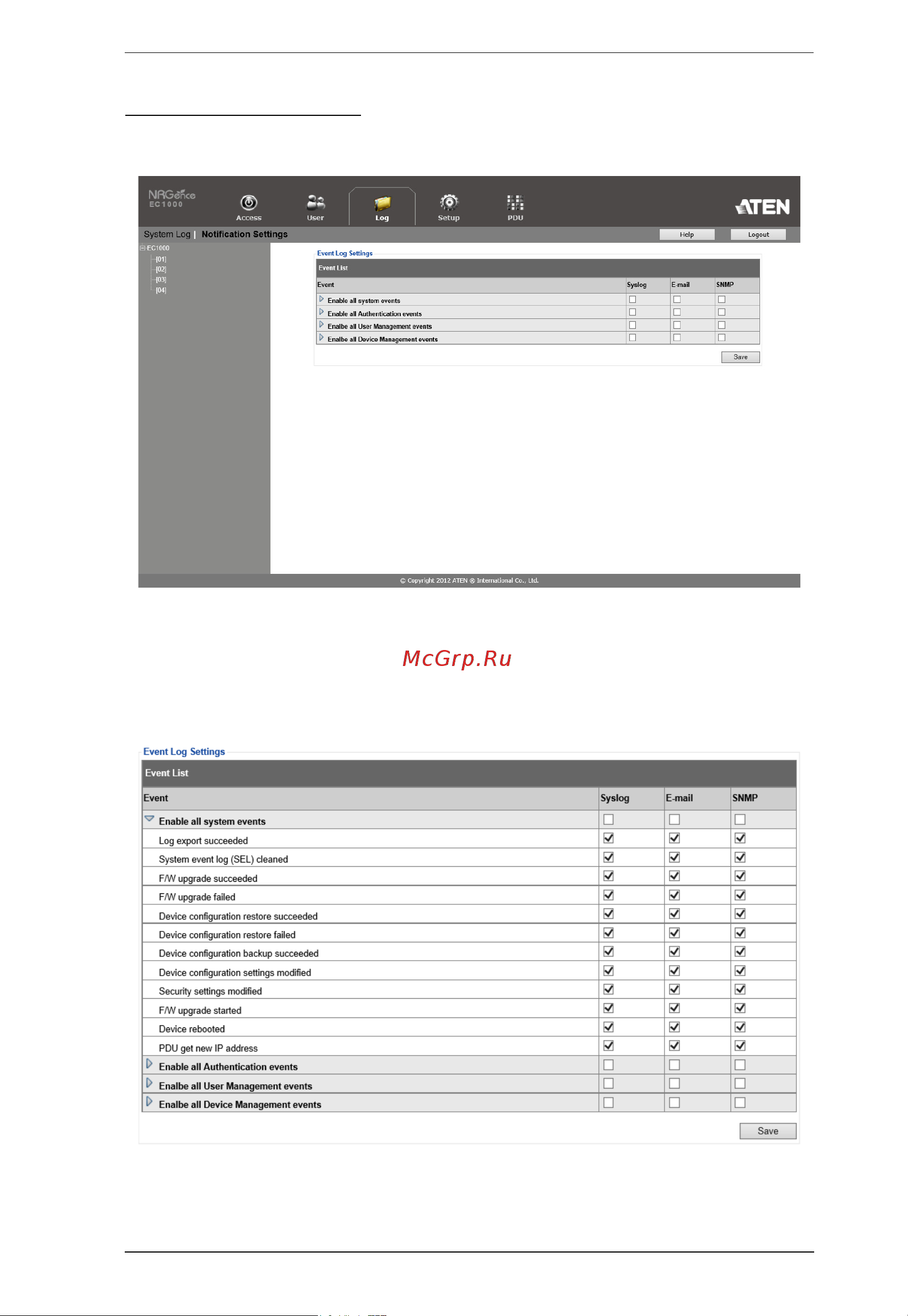

Notification Settings

This page allows you to setup email notifications of specified events.

Check the checkbox to enable the notification type for the selected event

category.

For detailed events of a event category, click the right-pointing triangle in front

of the event category and a list will be displayed. An example is shown below:

Check the checkbox to enable the notification type for the selected events.
