EC1000 User Manual
26

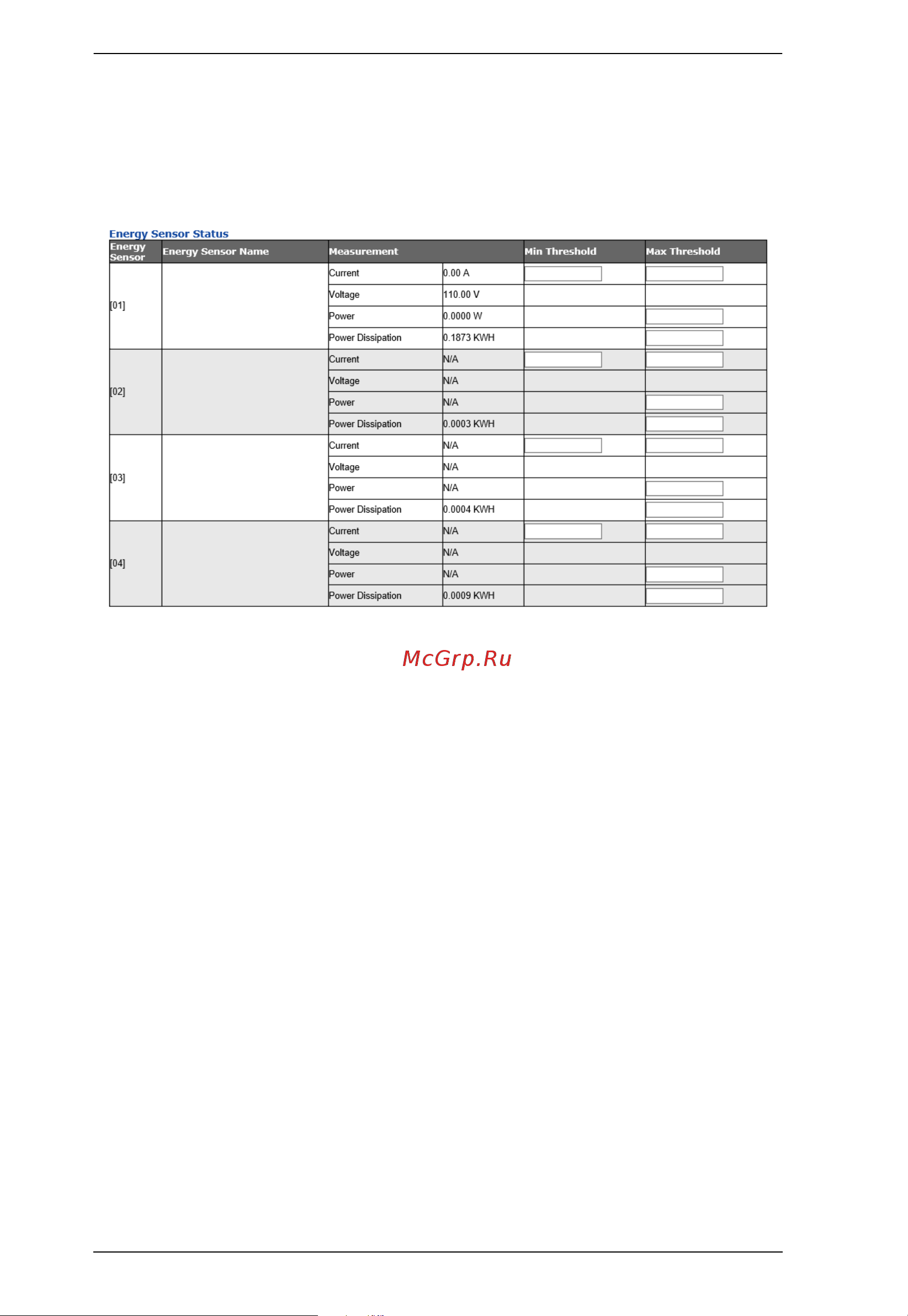

Energy Sensor Status
The EC1000 Energy Box supports the monitoring of four Energy PDUs. The
Energy Sensor Status section allows you to view power status and set up a
power management configuration for each Energy PDU:
Energy Sensor
This field displays the Energy Sensor port number that the Energy PDU is
connected to.
Energy Sensor Name
This field displays the custom name created for the Energy sensor port
(see Configuration, page 28).
Measurement
This field displays the real-time current, voltage, power and power
dissipation reading of an Energy PDU.
Threshold Settings
This field is used to set the maximum threshold settings for the Energy
PDU’s current. If a range exceeds the maximum setting an alarm is
triggered.
