Aten EC1000 [63/81] Remote terminal operations telnet

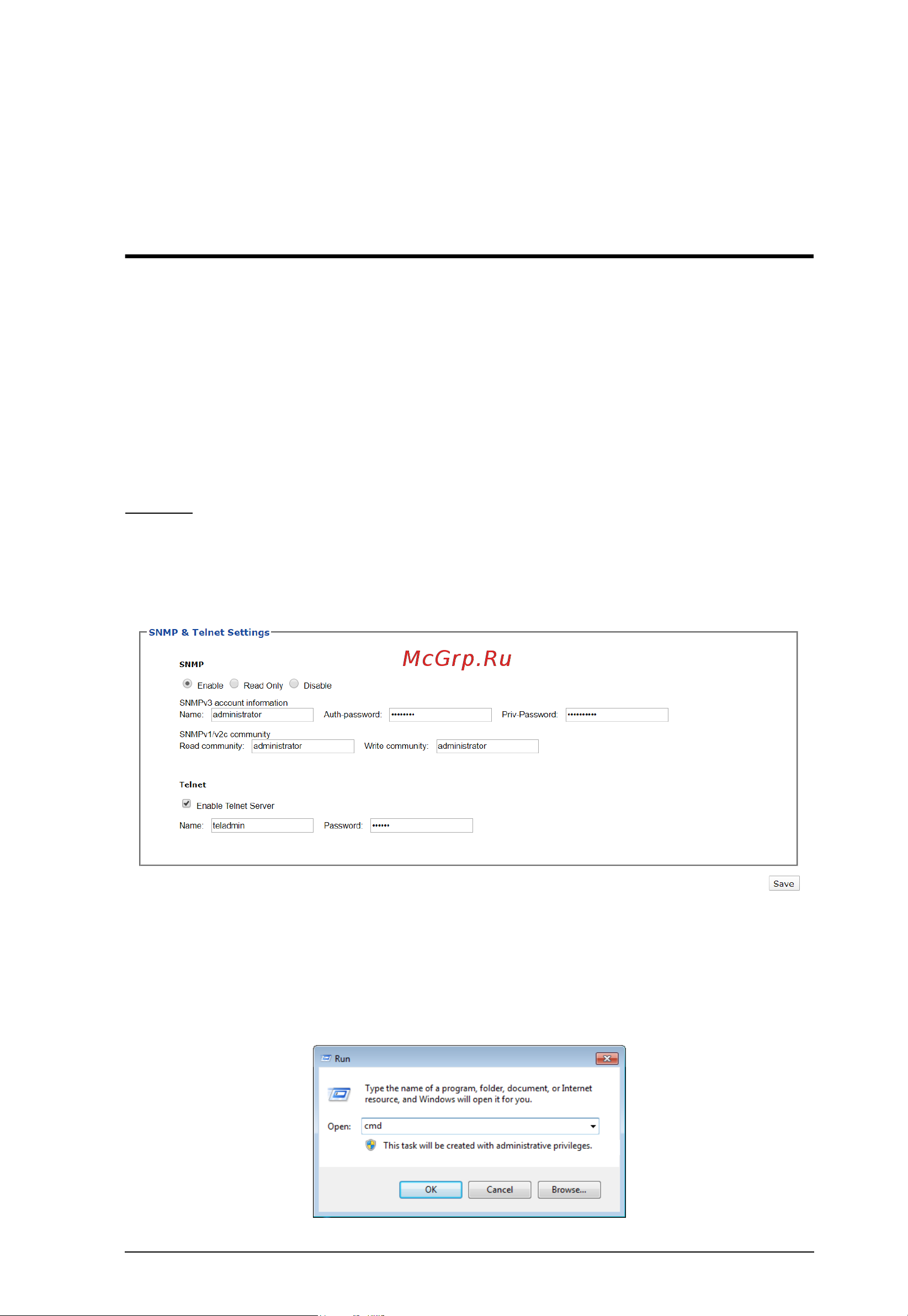

![Aten EC1000 [63/81] Remote terminal operations telnet](/views2/1978082/page63/bg3f.png)
53
Chapter 5
Telnet Commands
Remote Terminal Operations - Telnet
With ATEN EC1000 you can log in remotely from a computer using Telnet
that allows system control through a high-end controller or PC.
Telnet is a program that connects to a device over a network to provide text-
based management and control. Telnet provides some of the same management
features found in the unit’s web GUI. Refer to Browser Operation, page 19 to
help you as you work your way through the text-based commands.
Setup
Log in to the unit’s web GUI, go to the Setup tab and click SNMP & Telnet
Settings from the menu bar. Under Telnet, check Enable Telnet Server and
click Save at the bottom of the page.
Logging In
To log in to the unit via Telnet, do the following:
1. On your computer, open the start menu and select Run. Type: cmd
