EC1000 User Manual
50
PDU
The PDU function is used to upgrade the EC1000’s firmware, and to backup
and restore the device’s configuration settings.
Firmware File

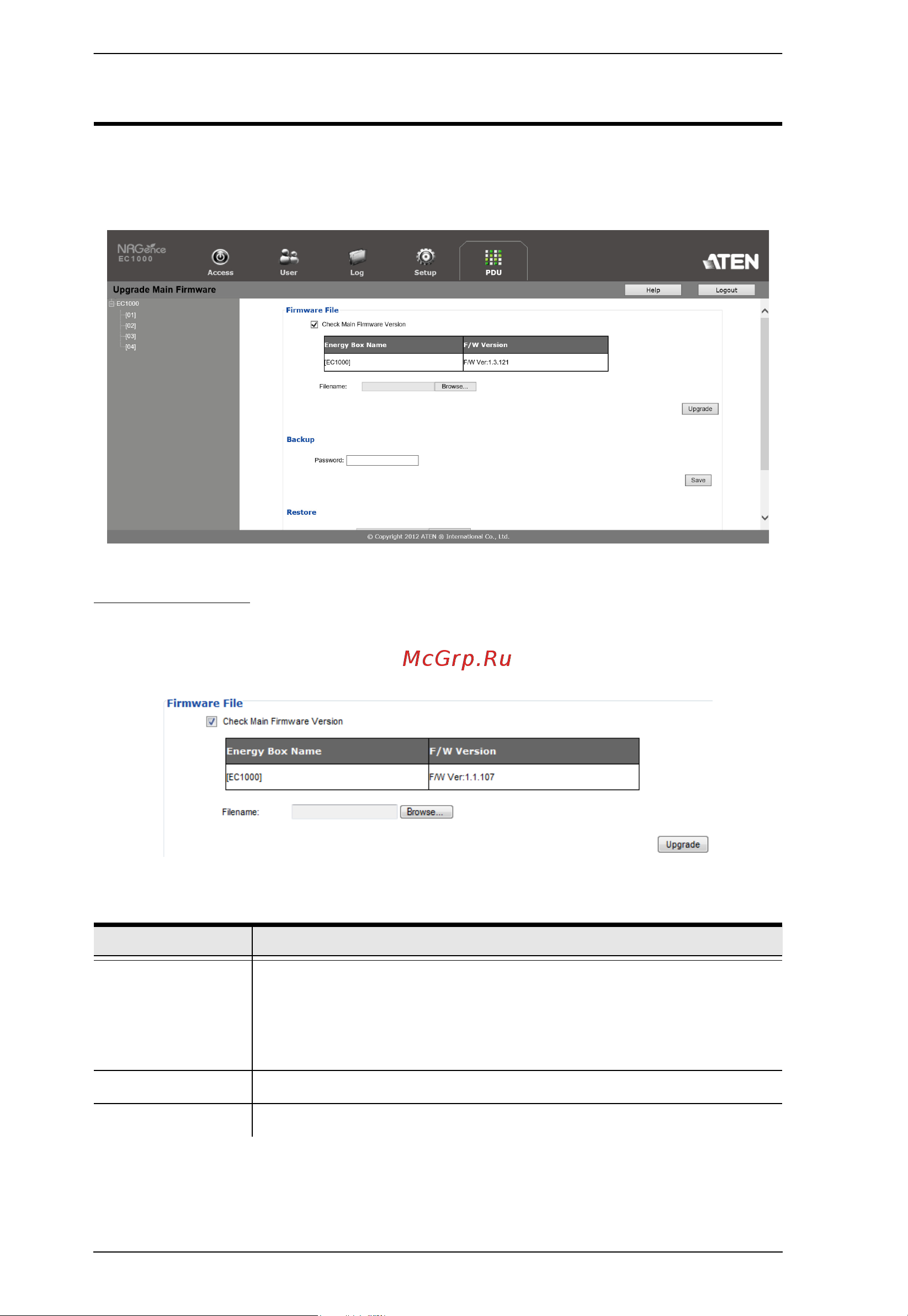

When you click the PDU tab, the Firmware File section is displayed at the top
of the page:
A description of the items shown in this panel are given in the table below:
Item Description
Check Main
Firmware Version
If you enable Check Main Firmware Version, the EC1000’s current
firmware level is compared with that of the upgrade file. If the
current version is equal to or higher than the upgrade version, a
popup message appears, to inform you of the situation and stops
the upgrade procedure.
Name Lists the name of the EC1000 Energy Box.
F/W Version Displays the EC1000 ‘s current firmware version.
